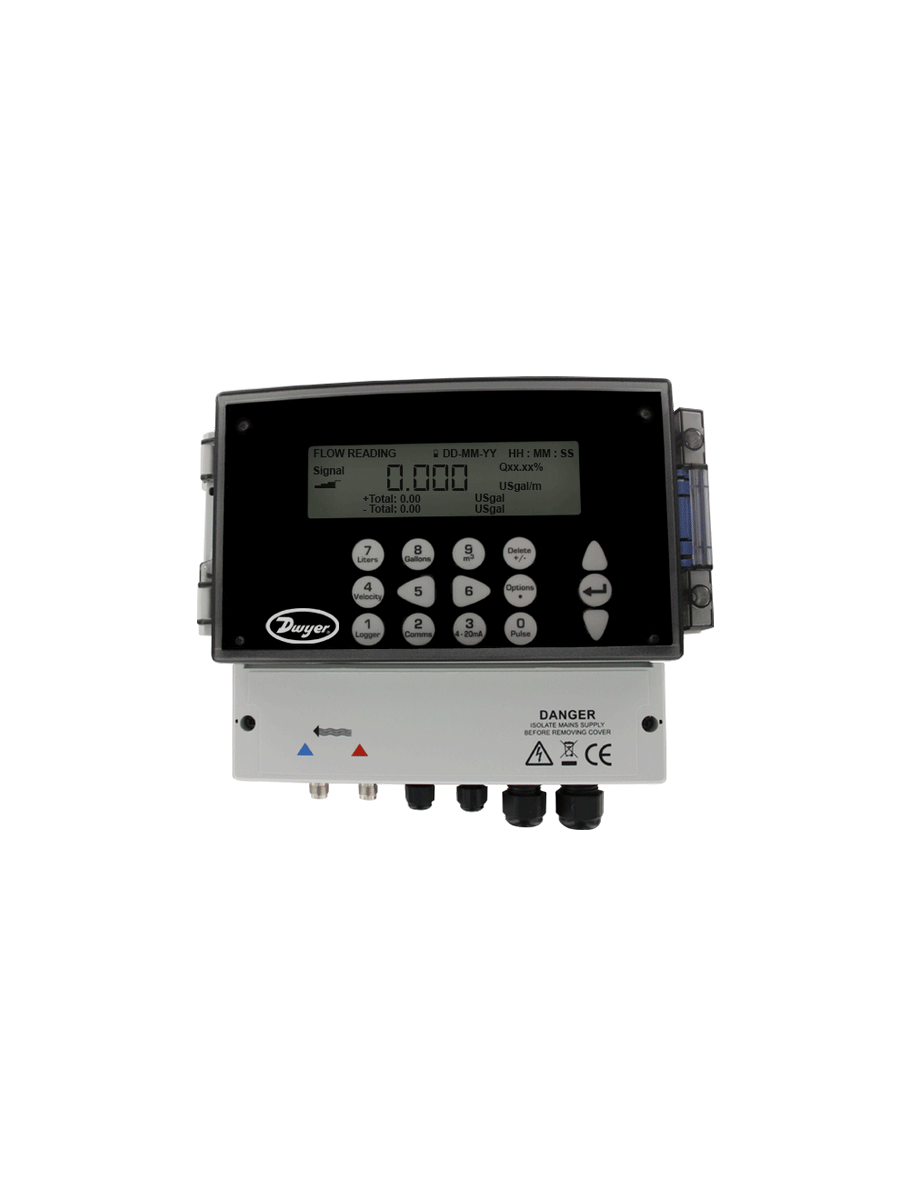

UFB-122 | Complete Ultrasonic flowmeter set | pipe size range 0.5 to 4.5" (13 to 115 mm) | 86 to 264 VAC power supply. | Dwyer

Complete Ultrasonic flowmeter set, pipe size range 0.5 to 4.5" (13 to 115 mm), 86 to 264 VAC power supply.

Brand: DwyerSKU: UFB-122

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to UFB-122

Jump to: Overview & Specifications Reviews

Overview Details for UFB-122

See catalog product page for full listing

Complete Ultrasonic flowmeter set | pipe size range 0.5 to 4.5" (13 to 115 mm) | 86 to 264 VAC power supply.

Series UFB Ultrasonic Flowmeter Set

Non-Invasive Pipe Flow Measurement, Easy Operation

The Series UFB Ultrasonic Flowmeter Set utilizes the transit-time difference formeasuring flow rates in pipes non-invasively. This is the permanent model, allowing theuser to mount the converter on a surface or pipe. The easy-to-use compact and lightweightdesign is intended for mechanical devices using ideally homogeneous liquids that contain noair pockets. The Series UFB comes with a sturdy IP65 rating, protecting it from dust anddirect water contact. The Series UFB has 4 to 20 mA and pulse output capabilities.

PRINCIPLES OF OPERATION
Two sensors are placed on the exterior of the pipe, and each transmits an ultrasonicpulse through the pipe and fluid to the other. The velocity of the liquid flowing throughthe pipes causes the pulse to accelerate or decelerate. The difference in the transittimes of the two pulses is used to calculate the flow rate. The use of transit timeallows the flowmeter to be unaffected by pressure or temperature changes.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Treated Water
River Water
Sea Water
Potable Water
Demineralized Water
Glycol/water mix
Hydraulic System
Diesel Oil
Flow Rate
Datalogging

Kit Includes:

• Converter

• Set of Transducers

• Ruled Guide Rail

• Steel Banding

• Banding Clips

• Set of Transducer Cables

• Set of High Temperature Interface Cables

• Ultrasonic Coupling Grease

Specifications

Series: UFB Ultrasonic Flowmeter Set
Category/Type: Flow
Type: Flow Transmitters
Series: UFB Ultrasonic Flowmeter Set
Service: Homogeneous liquids that do not contain more than 3% of air bubbles orparticulate and capable of ultrasonic wave propagation.
Inputs: TNC cable from sensors.
Range: 0.33 to 33 ft/s (0.1 to 10 m/s).
Display: 240 x 64 pixel graphic display; high contrast black on white with backlight;Languages: English; French; German; Swedish; Italian; Spanish; Portuguese;Russian; Norwegian; and Dutch; 5" W x 1.3" H (5 x 33.02 mm).
Accuracy: ±0.5 to ±2% of flow reading of flow rate > 0.03 ft/s (0.01 m/s) and pipeOD > 3.0 in (75 mm); ±3% of flow reading for flow rate > 0.03 ft/s (0.01 m/s) andpipe OD 0.5 to 3 in (13 to 75 mm); ±6% of flow reading for flow rate < 0.03 ft/s(0.01 m/s).
Power Requirements: 86 to 264 VAC (50 to 60 Hz) or 24 VAC/VDC (1 A max).
Power Consumption: 10.5 W.
Temperature Limits: Transducer: -4 to 275°F (-20 to 135°C); Controller: -4 to122°F (-20 to 50°C).
Outputs: Analog: 1 opto-isolated output: 4 to 20 mA; 0 to 16 mA or 0 to 20 mA (selectable); Error current: 0 to 26 mA (selectable);Load resistance: 620 O max; Alarm: 2 opto-isolated MOSFET NO relays; 48 V at 500 mA; maximum 200 Hz; Pulsed: 1 opto-isolated MOSFET relay; 48 V at 500 mA; 1 to 250 pps; Pulse width: 2 to 500 ms (selectable).
Enclosure Rating: IP65 when using TNC connector; Transducers IP54.
Materials: Plastic ABS and aluminum.
Repeatability: ±0.5 % of measured value or 0.03 ft/s (0.01 m/s).
Electrical Connections: Removeable screw-in type terminal block.
Mounting: Wall mounted using 3 type M4 screws.
Turbidity: <3 % by volume of particulate content.
Permissible Air Content: <3% by volume.
Response Time: <500 ms.
Weight: >Unit not including accessories: 2.80 lb (1.26 kg);Unit including accessories: 9.92 lb (4.5 kg).
Agency Approvals: CE.
ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Carbon steel; SS; copper; UPVC/PVDF; concrete; mild steel; glass; brass.
Applicable Pipe Lining: Rubber; glass; concrete; epoxy; steel; other*.
Pipe Wall Thickness: 0.04 to 3" (1 to 75 mm).
Pipe Lining Thickness: <1" (< 25 mm).
: *Selectable option for special material with known propagation rate of liningmaterial.
