Documents: TTW-112

Instruction Manual Series TTW Catalog Page More Info

TTW-112 | Weatherproof immersion temperature transmitter | 12" probe length | Dwyer

Weatherproof immersion temperature transmitter, 12" probe length

Brand: DwyerSKU: TTW-112

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TTW-112

Jump to: Overview & Specifications Reviews

Overview Details for TTW-112

See catalog product page for full listing

Weatherproof immersion temperature transmitter | 12" probe length

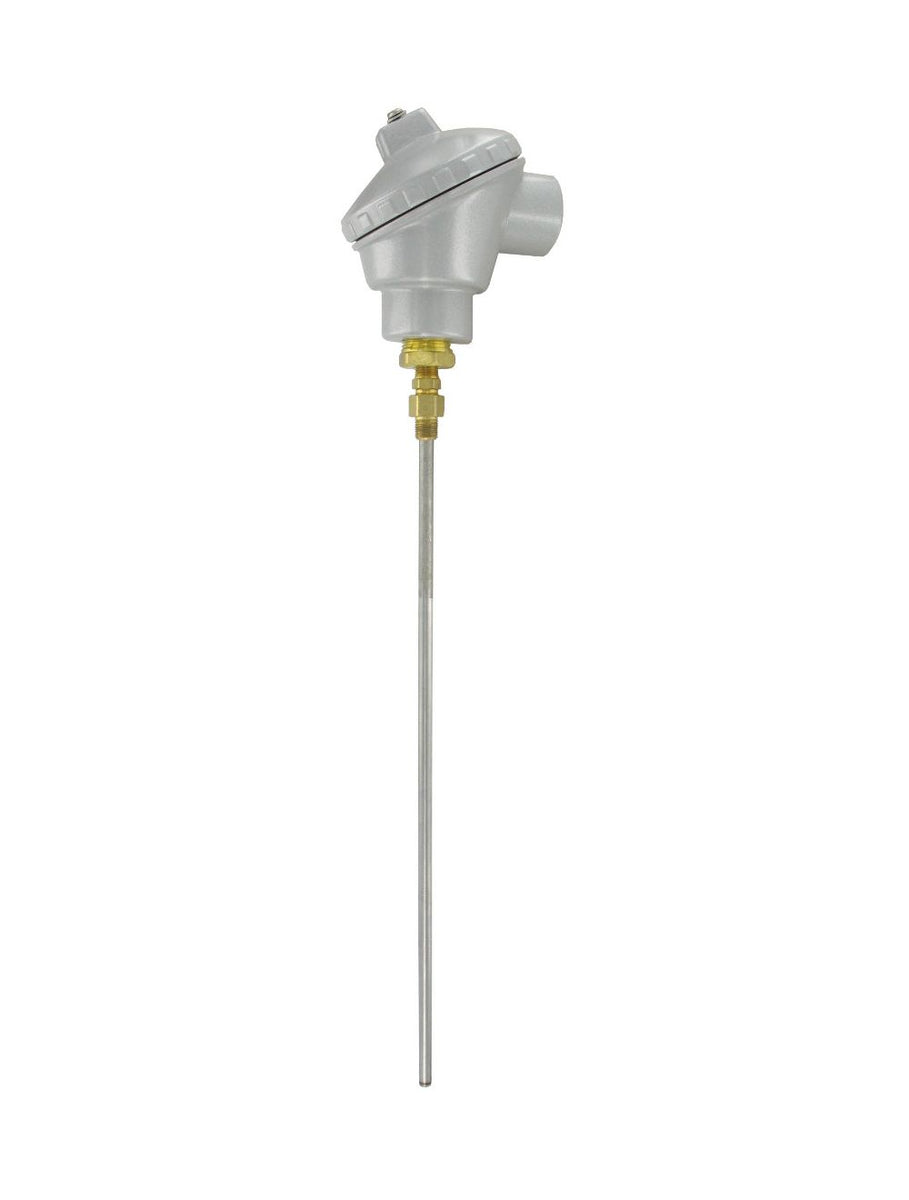

Series TTW Weatherproof Immersion Temperature Transmitter

Pt100 RTD, PC Programmable Transmitter

The Series TTW Weatherproof Immersion Temperature Transmitter combines three popular products into a single package. Our TBU series head mounted temperature transmitter is factory mounted into our A-709 enclosure. A Pt100 RTD version of our TE series is wired to the transmitter, giving insertion lengths up to 18". Each transmitter is factory programmed and calibrated to output a 4 to 20 mA signal proportional to the 32 to 212°F (0 to 100°C) temperature range.

Product Applications

Immersion temperature sensing in HVAC systems

Easy output scale adjustment via the USB port
Long product life cycle with the rugged aluminum IP66 housing
No setup for most installations with the output range preset to 32 to 212°F
