TSXT-213 | Digital thermostat 3 relay output | 3 PTC/NTC probe input | blue display | 115 VAC | capacitive touch keys | Modbus®. | Dwyer
Digital thermostat 3 relay output, 3 PTC/NTC probe input, blue display, 115 VAC, capacitive touch keys, Modbus®.

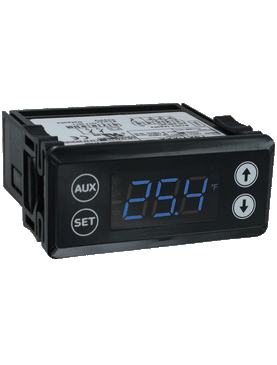

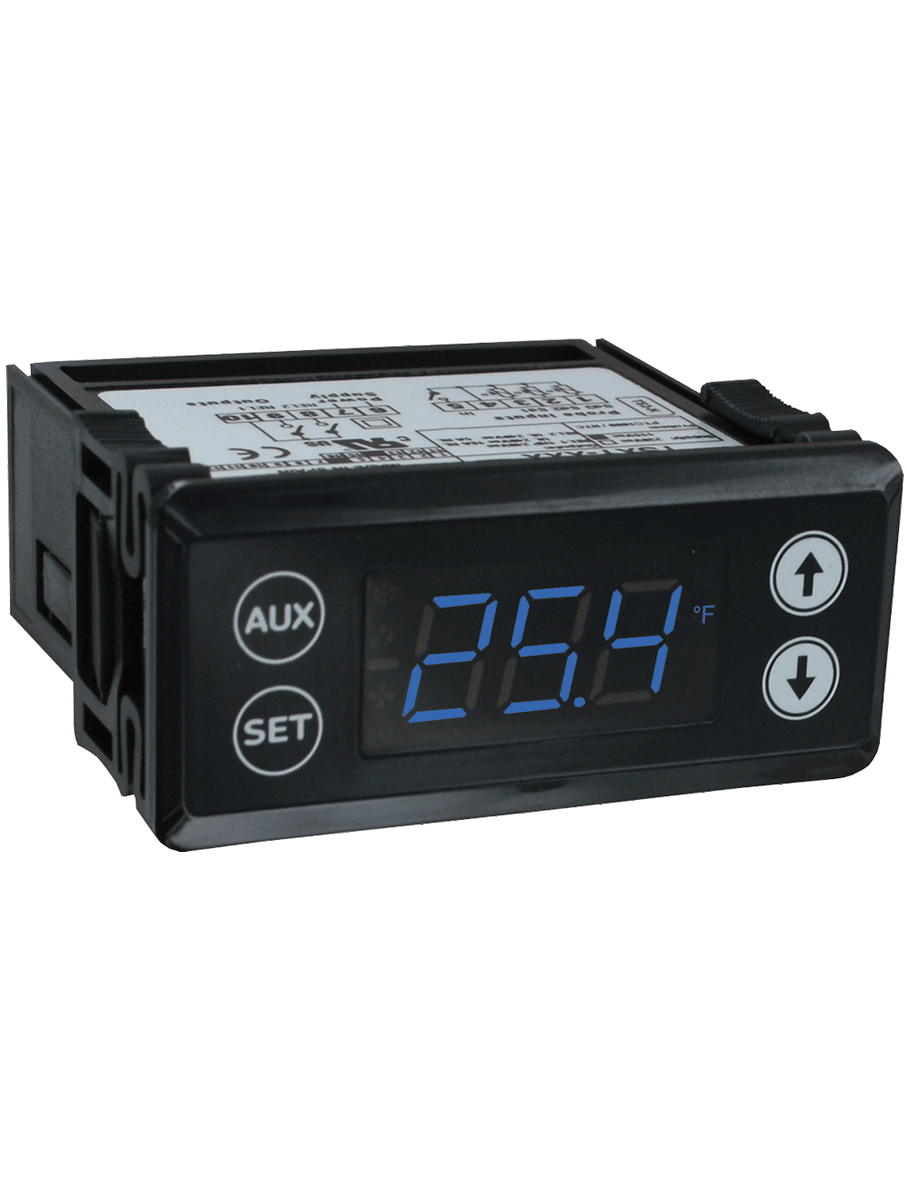

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TSXT-213
Documents and manuals
Dwyer TSXT-213 Documents
Overview
Details for TSXT-213
See catalog product page for full listing
Digital thermostat 3 relay output | 3 PTC/NTC probe input | blue display | 115 VAC | capacitive touch keys | Modbus®.
SERIES TSXT DIGITAL TEMPERATURE SWITCH
Refrigeration Control, Up To 3 Probe Inputs and 3 Relay Outputs
The Series TSXT Digital Temperature Switch is designed for refrigeration control. It accepts PTC or NTC temperature probe types and can control the compressor, defrost, fan, alarm, and light in a refrigeration system. Master/slave configurations allow synchronization of defrost cycles between different units. Programming is performed through the front keypad, or by using the TS2-K programming key.
Product Applications
- Refrigerated cabinets
- Walk in coolers
- Applications requiring defrost cycles
- Models available with 1, 2, or 3 relay outputs
- 3 temperature inputs and one digital input for complete refrigeration control
- Configuration key available for programing multiple units
- Capacitive buttons offer clean panel face design
Specifications
- Series
- TSXT DIGITAL TEMPERATURE SWITCH
- Category/Type
- Temperature
- Type
- Switches
- Series
- TSXT DIGITAL TEMPERATURE SWITCH
- Probe Range
- PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
- Input
- PTC (1000 Ω @ 25°C) or NTC (10KΩ @ 25°C) thermistor.
- Output
- Relay 1: SPST relay rated 16 A @ 240 VAC resistive; 10 FLA; 60 LRA; Relay 2: SPST relay rated 5 A @ 240 VAC resistive; Relay 3: SPST relay rated 8 A @ 240 VAC resistive.
- Horsepower Rating (HP)
- 1 HP (Relay 1).
- Control Type
- On/off with defrost options.
- Power Requirements
- 115 VAC; 230 VAC; 24 VAC/VDC; or 12 VAC/VDC.
- Power Consumption
- 3.6 VA @ 115/230 VAC; 1.5 VA @ 12/24 VAC/VDC.
- Accuracy
- ±1% FS.
- Display
- 3-digit; plus sign.
- Resolution
- 0.1°.
- Memory Backup
- Nonvolatile memory.
- Ambient Operating Temperature
- 32 to 131°F (0 to 55°C).
- Storage Temperature
- -4 to 176°F (-20 to 80°C).
- Weight
- 115 and 230 V models: 7.2 oz (204 g); 12 and 24 V models: 4.8 oz (136 g).
- Front Panel Rating
- IP65.
- Agency Approvals
- CE; cURus.
