TSXT-212 | Digital thermostat 2 relay output | 3 PTC/NTC probe input | blue display | 115 VAC | capacitive touch keys | Modbus®. | Dwyer

Digital thermostat 2 relay output, 3 PTC/NTC probe input, blue display, 115 VAC, capacitive touch keys, Modbus®.

Brand: DwyerSKU: TSXT-212

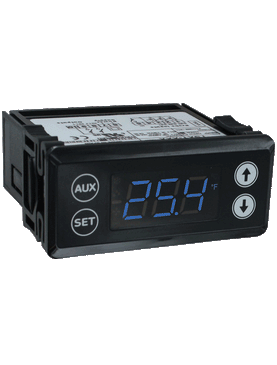

Dwyer | TSXT-212
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TSXT-212

Overview Details for TSXT-212

See catalog product page for full listing

Digital thermostat 2 relay output | 3 PTC/NTC probe input | blue display | 115 VAC | capacitive touch keys | Modbus®.

SERIES TSXT DIGITAL TEMPERATURE SWITCH

Refrigeration Control, Up To 3 Probe Inputs and 3 Relay Outputs

The Series TSXT Digital Temperature Switch is designed for refrigeration control. It accepts PTC or NTC temperature probe types and can control the compressor, defrost, fan, alarm, and light in a refrigeration system. Master/slave configurations allow synchronization of defrost cycles between different units. Programming is performed through the front keypad, or by using the TS2-K programming key.

Product Applications

  • Refrigerated cabinets
  • Walk in coolers
  • Applications requiring defrost cycles
  • Models available with 1, 2, or 3 relay outputs
  • 3 temperature inputs and one digital input for complete refrigeration control
  • Configuration key available for programing multiple units
  • Capacitive buttons offer clean panel face design

Specifications

Series
TSXT DIGITAL TEMPERATURE SWITCH
Category/Type
Temperature
Type
Switches
Series
TSXT DIGITAL TEMPERATURE SWITCH
Probe Range
PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input
PTC (1000 Ω @ 25°C) or NTC (10KΩ @ 25°C) thermistor.
Output
Relay 1: SPST relay rated 16 A @ 240 VAC resistive; 10 FLA; 60 LRA; Relay 2: SPST relay rated 5 A @ 240 VAC resistive; Relay 3: SPST relay rated 8 A @ 240 VAC resistive.
Horsepower Rating (HP)
1 HP (Relay 1).
Control Type
On/off with defrost options.
Power Requirements
115 VAC; 230 VAC; 24 VAC/VDC; or 12 VAC/VDC.
Power Consumption
3.6 VA @ 115/230 VAC; 1.5 VA @ 12/24 VAC/VDC.
Accuracy
±1% FS.
Display
3-digit; plus sign.
Resolution
0.1°.
Memory Backup
Nonvolatile memory.
Ambient Operating Temperature
32 to 131°F (0 to 55°C).
Storage Temperature
-4 to 176°F (-20 to 80°C).
Weight
115 and 230 V models: 7.2 oz (204 g); 12 and 24 V models: 4.8 oz (136 g).
Front Panel Rating
IP65.
Agency Approvals
CE; cURus.
