TSX3-500322 | Digital refrigeration temperature switch | two outputs | two temperature probe inputs | 12 VAC/VDC supply power | with red display. | Dwyer

Digital refrigeration temperature switch, two outputs, two temperature probe inputs, 12 VAC/VDC supply power, with red display.

Brand: DwyerSKU: TSX3-500322

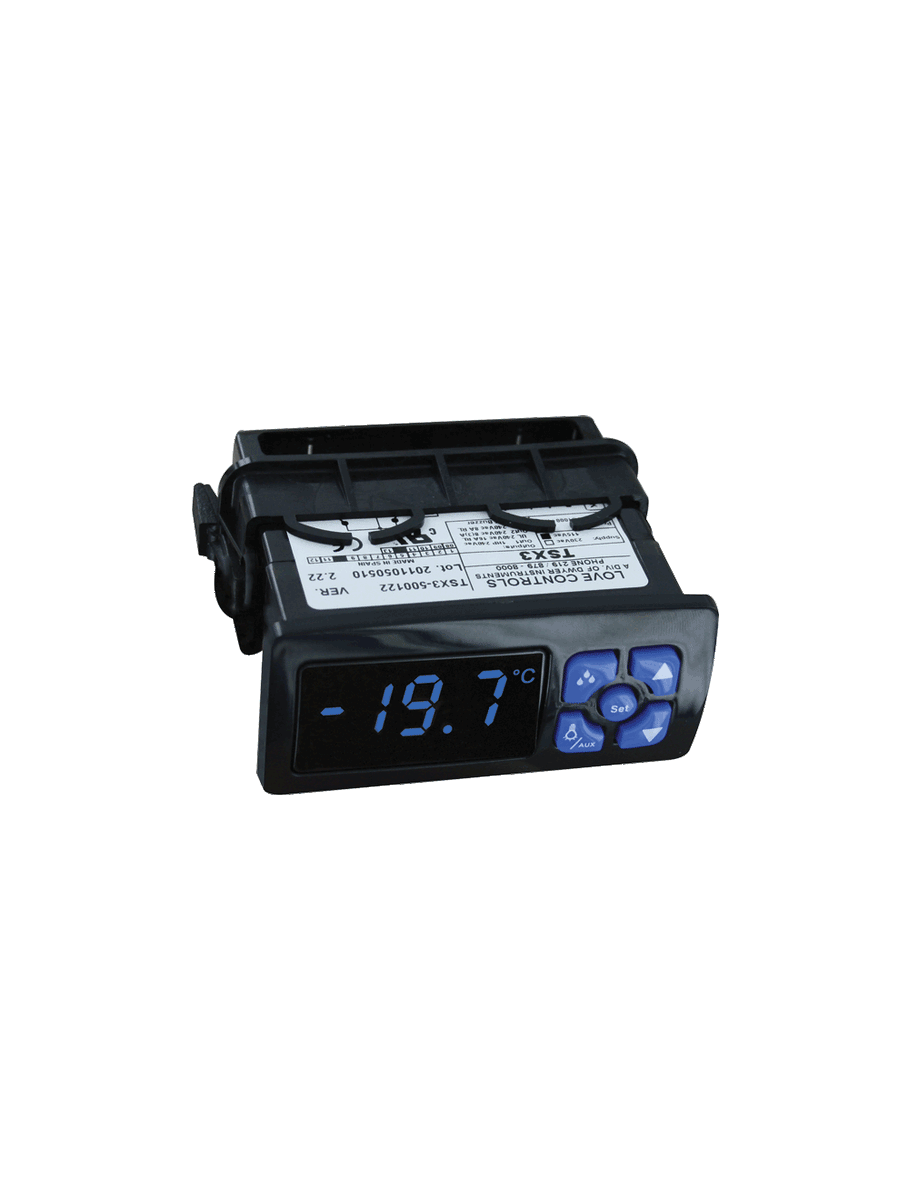

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSX3-500322

Jump to: Overview & Specifications Reviews

Overview Details for TSX3-500322

See catalog product page for full listing

Digital refrigeration temperature switch | two outputs | two temperature probe inputs | 12 VAC/VDC supply power | with red display.

SERIES TSX3 DIGITAL REFRIGERATION TEMPERATURE SWITCH

Intelligent Defrost, HACCP Alarm Logging

The Series TSX3 Digital Refrigeration Temperature Switch was designed to control the compressor, fan, and defrost in refrigeration applications. This generation of controls has field selectable engineering units and temperature probe types in order to reduce the combination of parts that need to be stocked. A built-in real time clock is used for HACCP logging of temperature alarms caused by temperatures out of their set limits or loss of power. The Intelligent Defrost parameters manage the defrost cycle in order to save energy cost. The digital input can be used to remotely trigger a defrost cycle, monitor cooler door status, or act as an external alarm. For programming multiple units, the model TS2-K configuration key can be used to quickly download parameter settings.

Product Applications

Refrigerators

Field selectable °F or °C
Real time clock
HACCP alarm logging
Configuration key
2 or 3 output models for complete refrigerator control
2 temperature sensor and 1 digital contact inputs

Specifications

Series: TSX3 DIGITAL REFRIGERATION TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSX3 DIGITAL REFRIGERATION TEMPERATURE SWITCH
Probe Range: PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input: PTC (1000 Ω @ 25°C); NTC (10K Ω @ 25°C); Digital Input Contact.
Output: All models SPST NO relay resistive load 16 A; inductive load 5 A; 10 FLA; 60 LRA @ 240 VAC; dual output models also include 8 A resistive; 3 A inductive SPDT @ 240 VAC; three output models also include 8 A resistive SPST NO @ 240 VAC; 5 A resistive SPST NO @ 240 VAC.
Horsepower Rating: 1HP @ 240 VAC.
Control Type: On/Off.
Power Requirement: 115 VAC; 230 VAC; 12 VAC/VDC; 24 VAC/DC (±10%) depending on model.
Power Consumption: 3.6 VA (115/230/24 V); 1.5 VA (12 V).
Accuracy: ±1% FS.
Display: 3 digits plus sign.
Resolution: 0.1°.
Memory Backup: Non-volatile memory.
Ambient Temperature: 32 to 131°F (0 to 55°C).
Weight: 2.3 oz (65 g).
Front Protection: IP65 (NEMA 4X).
Agency Approvals: CE; cURus.
