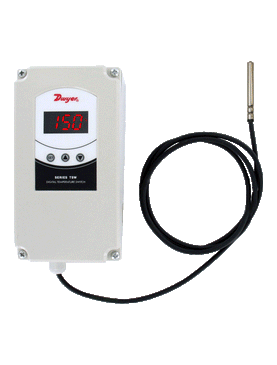

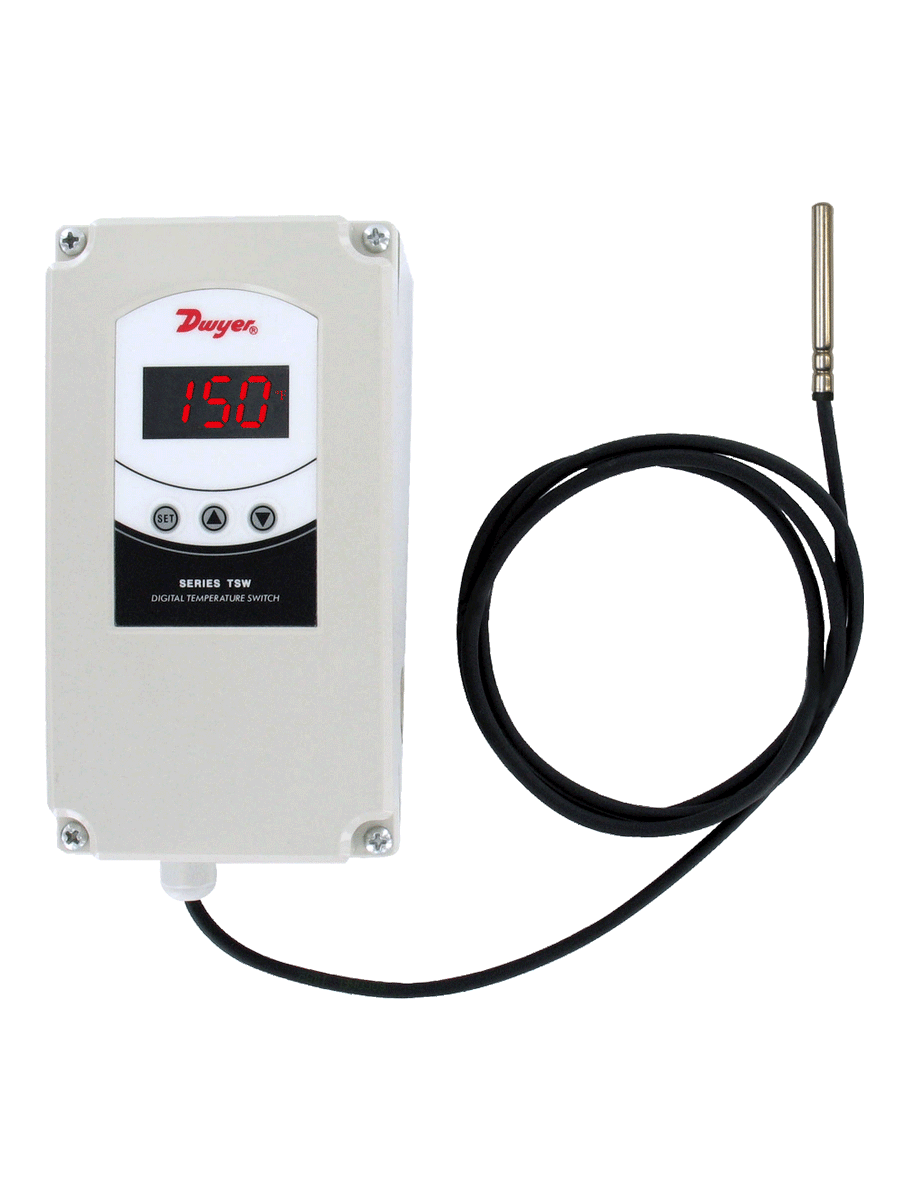

TSW-260 | Weatherproof digital temperature switch | dual stage | 12 to 24 VAC/VDC power supply | Dwyer
Weatherproof digital temperature switch, dual stage, 12 to 24 VAC/VDC power supply
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TSW-260
Documents and manuals
Dwyer TSW-260 Documents
Overview
Details for TSW-260
See catalog product page for full listing
Weatherproof digital temperature switch | dual stage | 12 to 24 VAC/VDC power supply
SERIES TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
NEMA 4X Housing, Single or Dual Stage, 20 A Contact Rating
The Series TSW Weatherproof Digital Temperature Switch combines the trusted, reliable TS familyof temperature controls and an installation friendly weatherproof enclosure. Thebright, easy-to-read LED display shows the current output status and the temperaturemeasurement.
Product Applications
- Chillers
- Walk in cooler
- Wood boilers
- Brewing systems
- Weatherproof housing
- Single or dual stage models
- Configuration key
- Physical and passcode parameter setting protection
- TS-8T temperature probe included
Specifications
- Series
- TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
- Category/Type
- Temperature
- Type
- Switches
- Series
- TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
- Probe Range
- PTC: -58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
- Input
- PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
- Output
- R1 SPDT relay resistive load:20 A @ 240 VAC; R2 SPDT relayresistive load: 8 A @ 240 VAC; Inductiveload: 3 A @ 240 VAC.
- Horsepower Rating
- R1 2HP @ 240VAC.
- Control Type
- On/off.
- Power Requirements
- 90 to 255 VAC or 12 to 24 VAC/VDC (±10%)depending on model.
- Power Consumption
- 3.6 VA.
- Accuracy
- ±1% FS.
- Display
- 3 digits plus sign.
- Resolution
- Single stage: 1°; Dual stage: 0.1° < 100; 1° = 100°.
- Memory Backup
- Non-volatile memory.
- Ambient Temperature
- 32 to 104°F (0 to 40°C).
- Weight
- 1.2 lbs (544 g).
- Enclosure Rating
- NEMA 4X (IP66).
- Agency Approvals
- CE; cURus.
