TSW-250-NP | Weatherproof digital temperature switch | dual stage | 90 to 240 VAC supply voltage | no temp sensor | Dwyer

Weatherproof digital temperature switch, dual stage, 90 to 240 VAC supply voltage, no temp sensor

Brand: DwyerSKU: TSW-250-NP

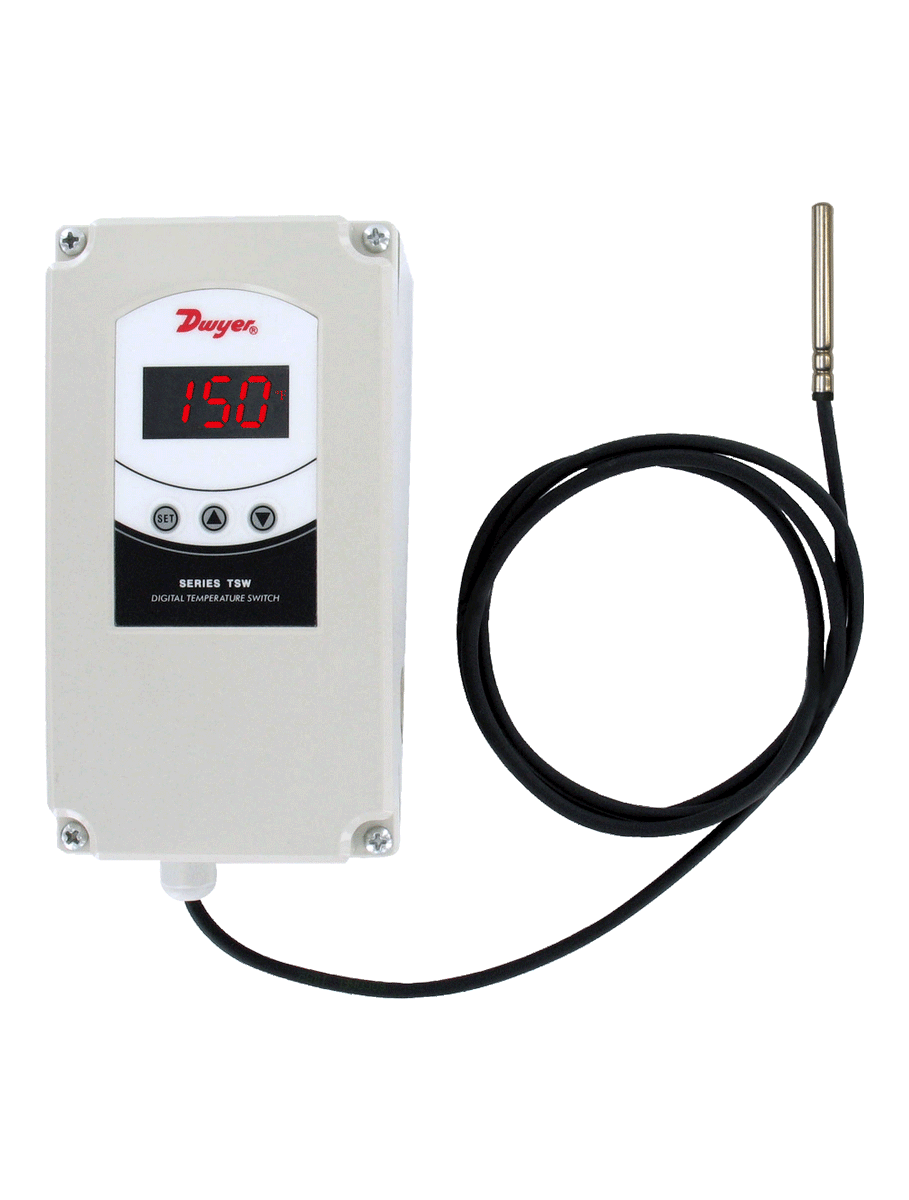

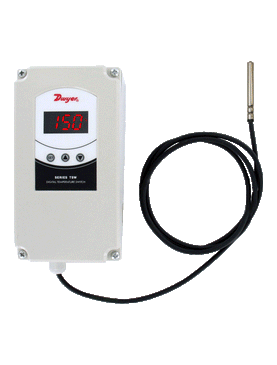

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSW-250-NP

Jump to: Overview & Specifications Reviews

Overview Details for TSW-250-NP

See catalog product page for full listing

Weatherproof digital temperature switch | dual stage | 90 to 240 VAC supply voltage | no temp sensor

SERIES TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH

NEMA 4X Housing, Single or Dual Stage, 20 A Contact Rating

The Series TSW Weatherproof Digital Temperature Switch combines the trusted, reliable TS familyof temperature controls and an installation friendly weatherproof enclosure. Thebright, easy-to-read LED display shows the current output status and the temperaturemeasurement.

Product Applications

Chillers
Walk in cooler
Wood boilers
Brewing systems

Weatherproof housing
Single or dual stage models
Configuration key
Physical and passcode parameter setting protection
TS-8T temperature probe included

Specifications

Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSW WEATHERPROOF DIGITAL TEMPERATURE SWITCH
Probe Range: PTC: -58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Output: R1 SPDT relay resistive load:20 A @ 240 VAC; R2 SPDT relayresistive load: 8 A @ 240 VAC; Inductiveload: 3 A @ 240 VAC.
Horsepower Rating: R1 2HP @ 240VAC.
Control Type: On/off.
Power Requirements: 90 to 255 VAC or 12 to 24 VAC/VDC (±10%)depending on model.
Power Consumption: 3.6 VA.
Accuracy: ±1% FS.
Display: 3 digits plus sign.
Resolution: Single stage: 1°; Dual stage: 0.1° < 100; 1° = 100°.
Memory Backup: Non-volatile memory.
Ambient Temperature: 32 to 104°F (0 to 40°C).
Weight: 1.2 lbs (544 g).
Enclosure Rating: NEMA 4X (IP66).
Agency Approvals: CE; cURus.
