TSS2-2300 | Dual stage temperature switch | °F | 12 VAC/DC. | Dwyer

Dual stage temperature switch, °F, 12 VAC/DC.

Brand: DwyerSKU: TSS2-2300

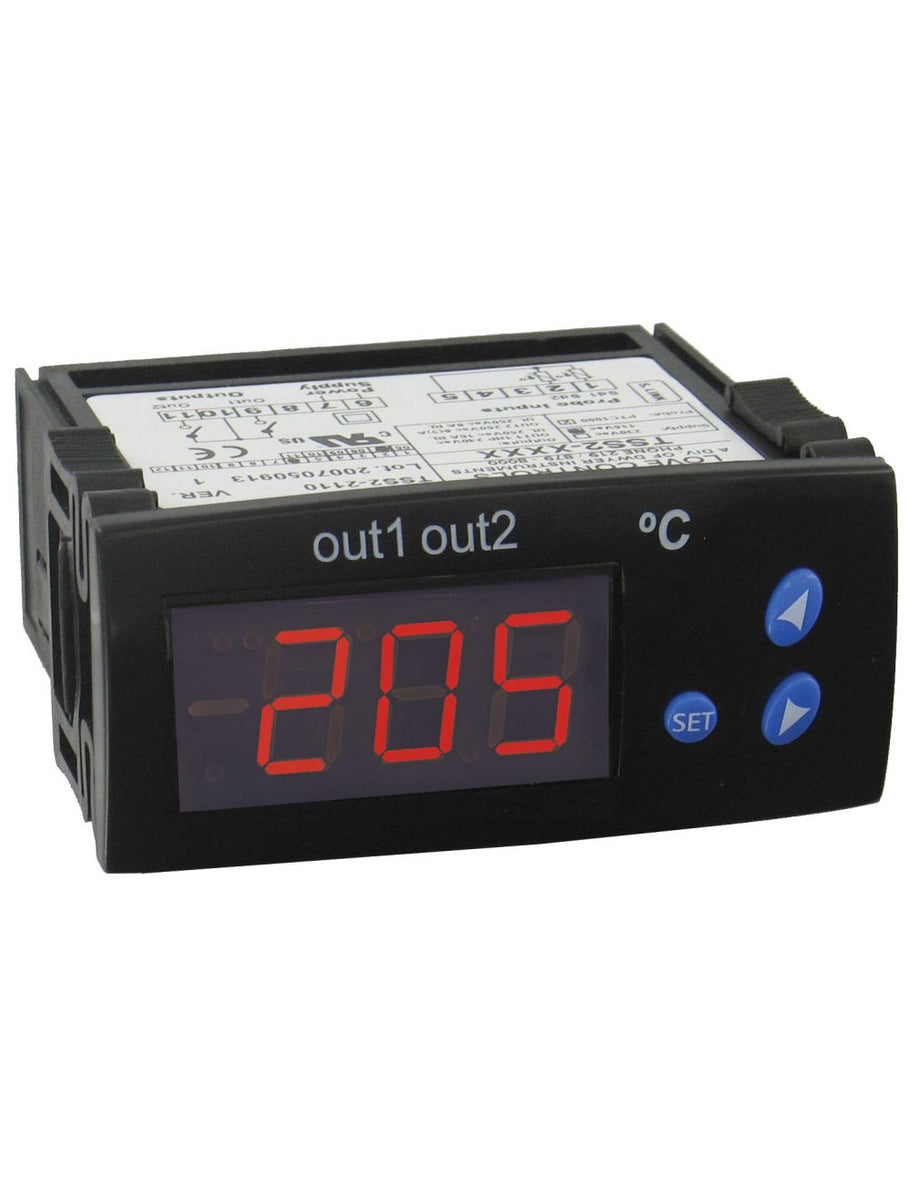

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for TSS2-2300

See catalog product page for full listing

Dual stage temperature switch | °F | 12 VAC/DC.

Two Independent Relay Outputs, Heating or Cooling Control

The Series TSS2 Dual Stage Temperature Switch features two independent sensor inputs and control outputs in one device.

Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TSS2 DUAL STAGE TEMPERATURE SWITCH
Probe Range: PTC: - 58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
Input: PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
Outputs: OUT1=SPDT relay rated 16 A @ 240 VAC resistive; OUT2=SPDT relay rated 8 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP (OUT1).
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
Accuracy: ±1% of FS.
Display: 3-digit and sign; red LED.
Resolution: 0.1° (<100°); 1° (≥100°).
Memory Backup: Nonvolatile memory.
Temperature Limit: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Dimensions: 3 x 1-27/64 x 2-7/16 in.
Front Panel Rating: IP64.
Weight: 2.3 oz (65 g).
Agency Approvals: CE; cURus.
