TSS2-2200 | Dual stage temperature switch | °F | 230 VAC. | Dwyer
Dual stage temperature switch, °F, 230 VAC.

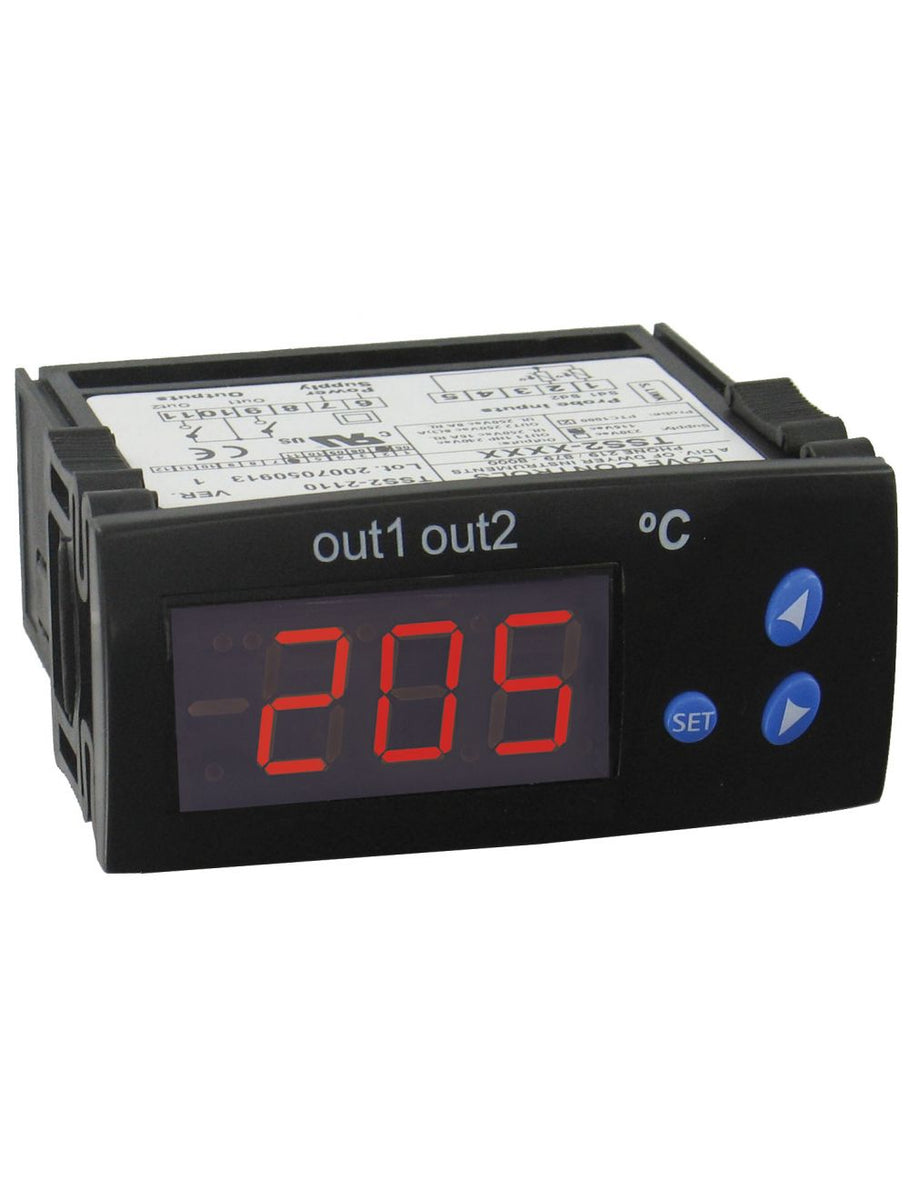

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TSS2-2200
Documents and manuals
Dwyer TSS2-2200 Documents
Overview
Details for TSS2-2200
See catalog product page for full listing
Dual stage temperature switch | °F | 230 VAC.
SERIES TSS2 DUAL STAGE TEMPERATURE SWITCH
Two Independent Relay Outputs, Heating or Cooling Control
The Series TSS2 Dual Stage Temperature Switch features two independent sensor inputs and control outputs in one device.
Product Applications
- Refrigerators
- Chillers
- Food service equipment
- Medical sterilizers or equipment
- Simple to use dual temperature control device
- Configuration key
Specifications
- Series
- TSS2 DUAL STAGE TEMPERATURE SWITCH
- Category/Type
- Temperature
- Type
- Switches
- Series
- TSS2 DUAL STAGE TEMPERATURE SWITCH
- Probe Range
- PTC: - 58 to 302°F (-50to 150°C); NTC: -58 to 230°F (-50 to110°C).
- Input
- PTC (1000 Ω @ 25°C); NTC(10 KΩ @ 25°C).
- Outputs
- OUT1=SPDT relay rated 16 A @ 240 VAC resistive; OUT2=SPDT relay rated 8 A @ 240 VAC resistive.
- Horsepower Rating (HP)
- 1 HP (OUT1).
- Power Requirements
- 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
- Accuracy
- ±1% of FS.
- Display
- 3-digit and sign; red LED.
- Resolution
- 0.1° (<100°); 1° (≥100°).
- Memory Backup
- Nonvolatile memory.
- Temperature Limit
- Ambient: 32 to 158°F (0 to 70°C).
- Storage Temperature
- -4 to 176°F (-20 to 80°C).
- Dimensions
- 3 x 1-27/64 x 2-7/16 in.
- Front Panel Rating
- IP64.
- Weight
- 2.3 oz (65 g).
- Agency Approvals
- CE; cURus.
