TSF-4040-MDF | Limit Control Temp | Type J/K Input | 24 VAC/VDC | °F | Dwyer

Limit Control Temp, Type J/K Input, 24 VAC/VDC, °F

Brand: DwyerSKU: TSF-4040-MDF

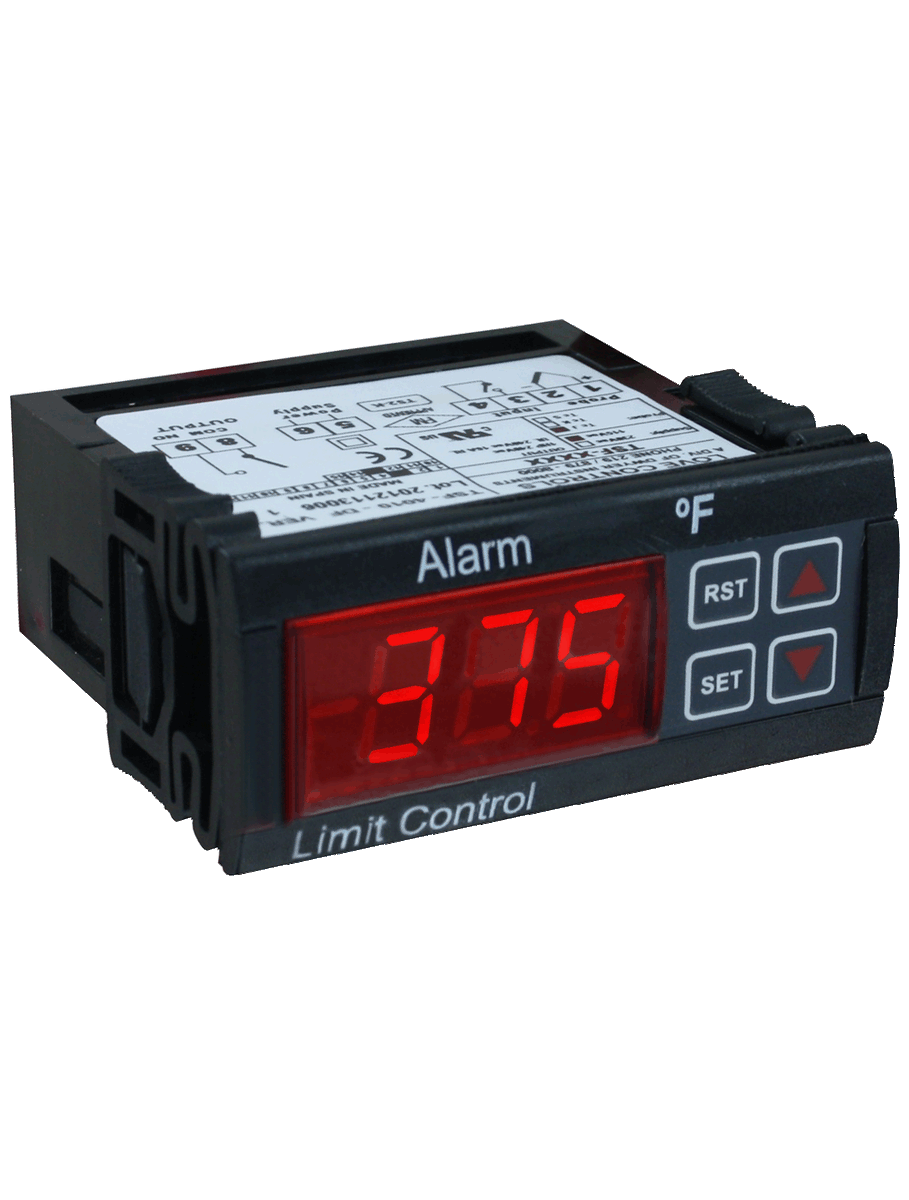

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSF-4040-MDF

Jump to: Overview & Specifications Reviews

Overview Details for TSF-4040-MDF

See catalog product page for full listing

Limit Control Temp | Type J/K Input | 24 VAC/VDC | °F

SERIES TSF-DF THERMOCOUPLE LIMIT CONTROL

UL Approved Temperature Limit Control

The Series TSF-DF Thermocouple Limit Alarm is a UL approvedtemperature limit control that provides visual alarm status along with a relayoutput. The Series TSF-DF controls have a built in reset button on the front panel or canaccept an external reset signal.Program settings on model TSF-DF controls cannot be changed through the buttons on thedevice. It is necessary to purchase a model TSF-MDF and a model TS2-K in addition to themodel TSF-DF. Desired program parameters are entered on a TSF-MDF programmingcontrol. Using the TS2-K configuration key, the parameters can be easily copied from theTSF-MDF and transferred to the TSF-DF Limit Alarms.

Product Applications

Gas fired oven and burner control

UL approved limit control

Specifications

Series: TSF-DF THERMOCOUPLE LIMIT CONTROL
Category/Type: Temperature
Type: Switches
Series: TSF-DF THERMOCOUPLE LIMIT CONTROL
Probe Range: 32 to 999°F (0 to 700°C) for thermocouple J type; 32 to 999°F (0 to 999°C) for thermocouple K or S type.
Input: Type J; K; or S thermocouple.
Output: NO SPST relay rated 16 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF; manual/automatic reset.
Power Requirements: See model chart.
Power Consumption: 4 VA @ 230 VAC.
Accuracy: ±1% FS.
Display: 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Ambient Operating Temperature: 32 to 140°F (0 to 60°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE; cURus. (DF models only).
