TSF-4031 | Thermocouple limit control | type J/K/S input | 12 VAC/VDC | °C. | Dwyer
Thermocouple limit control, type J/K/S input, 12 VAC/VDC, °C.

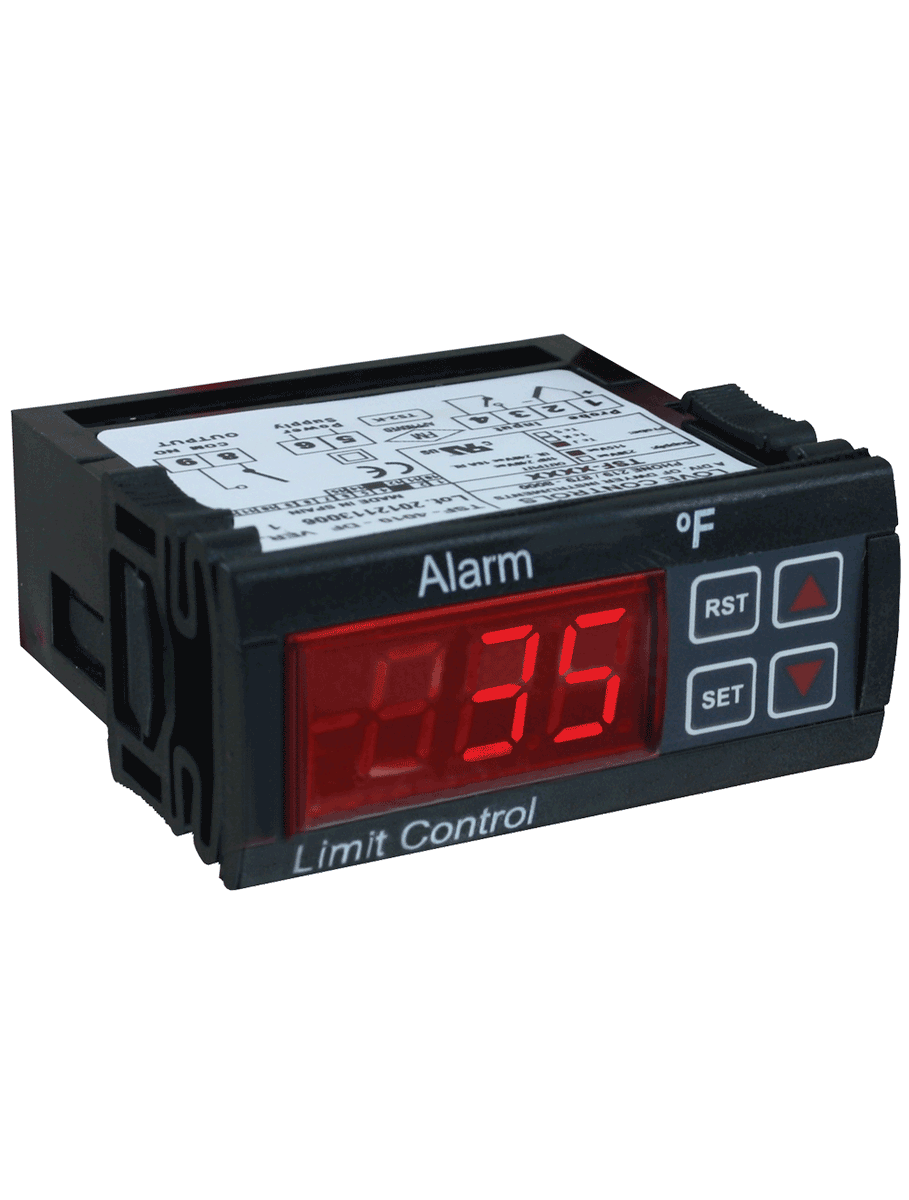

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TSF-4031
Documents and manuals
Dwyer TSF-4031 Documents
Overview
Details for TSF-4031
See catalog product page for full listing
Thermocouple limit control | type J/K/S input | 12 VAC/VDC | °C.
SERIES TSF THERMOCOUPLE LIMIT CONTROL
FM Approved Temperature Limit Control
The Series TSF Thermocouple Limit Control provides audible alarm status along with a relay output. Unit allows the user to easily select automatic or manual reset via a built in reset button on the front panel or an external contact.
Product Applications
- Gas fired oven and burner control
- FM approved temperature limiting control
- Integral and remote reset capabilities
Specifications
- Series
- TSF THERMOCOUPLE LIMIT CONTROL
- Category/Type
- Temperature
- Type
- Switches
- Series
- TSF THERMOCOUPLE LIMIT CONTROL
- Probe Range
- 32 to 999°F (0 to 700°C) for Type J thermocouple; 32 to 999°F (0 to 999°C) for type K or S thermocouples.
- Input
- Type J; K or S thermocouple.
- Output
- SPDT relay rated 16 A @ 240 VAC resistive.
- Horsepower Rating (HP)
- 1 HP.
- Control Type
- ON/OFF; manual/automatic reset.
- Power Requirements
- 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
- Power Consumption
- 4 VA.
- Accuracy
- ±1% FS.
- Display
- 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
- Resolution
- 1°.
- Memory Backup
- Nonvolatile memory.
- Temperature Limits
- >Ambient: 32 to 150°F (0 to 65°C); Storage: -4 to 176°F (-20 to 80°C).
- Weight
- 2.3 oz (65 g).
- Front Panel Rating
- IP64 (NEMA 3R).
- Agency Approvals
- CE; FM; cURus.
