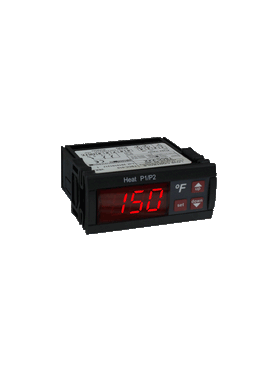

TSCC-020 | Digital Temperature Switch with timed dispensing relays | 230 VAC/Deg F°. | Dwyer
Digital Temperature Switch with timed dispensing relays, 230 VAC/Deg F°.
Documents and manuals
Dwyer TSCC-020 Documents
Overview
Details for TSCC-020
Digital Temperature Switch with timed dispensing relays | 230 VAC/Deg F°.
SERIES TSCC DIGITAL DISPENSING TEMPERATURE CONTROL
The Series TSCC Digital Dispensing Temperature Control is used to monitor andcontrol product temperature and dispensing rate in the production of melted cheese, chili,or other heated food products. One selectable PTC or NTC thermistor is used to monitorthe product temperature while a SPDT relay is used to control the temperature. TwoSPST relays are used for controlling two dispensing rates for either different sizecontainers or different products. A three digit, easy-to-read display is included on thecontroller. The buttons on the face of the controller enable the user to program the desiredparameters into the controller itself. Parameters can be copied from one device to anotherusing our TS2-K configuration key. Security protection is offered using a password code.Includes TS-6 temperature probe.
Product Applications
- For monitoring andcontrolling product temperatures and dispensing rates in the production of melted cheese, chili,or other heated food products.
Specifications
- Series
- TSCC DIGITAL DISPENSING TEMPERATURE CONTROL
- Category/Type
- Temperature
- Type
- Switches
- Series
- TSCC DIGITAL DISPENSING TEMPERATURE CONTROL
- Probe Range
- PTC: -58 to 302° F (-50 to 150° C);NTC: -58 to 230° F (-50 to 110° C).
- Input
- 2 free voltage contact input:PTC (1000Ω @ 25°C); NTC (10K Ω @25°C).
- Output
- 1 each relay SPDT 16 A @ 240 VACresistive; 5 A inductive;2 each relay SPST 5 A @ 240 VACresistive.
- Control Type
- ON/OFF.
- Power Requirements
- 115 VAC±10%; 230 VAC ±10% (depending onmodel).
- Power Consumption
- 4 VA.
- Accuracy
- ±1% FS.
- Display
- 3-digit and sign; 1/2" red LED digits.
- Resolution
- 1°.
- Memory Backup
- Nonvolatile memory.
- Temperature Limits
- Operating: 32 to 158°F (0 to 70°C);Storage: -4 to 176°F (-20 to 80°C).
- Weight
- 8.8 oz (250 g).
- Front Panel Rating
- IP64.
- Agency Model Approvals
- CE; cUL; UL.
