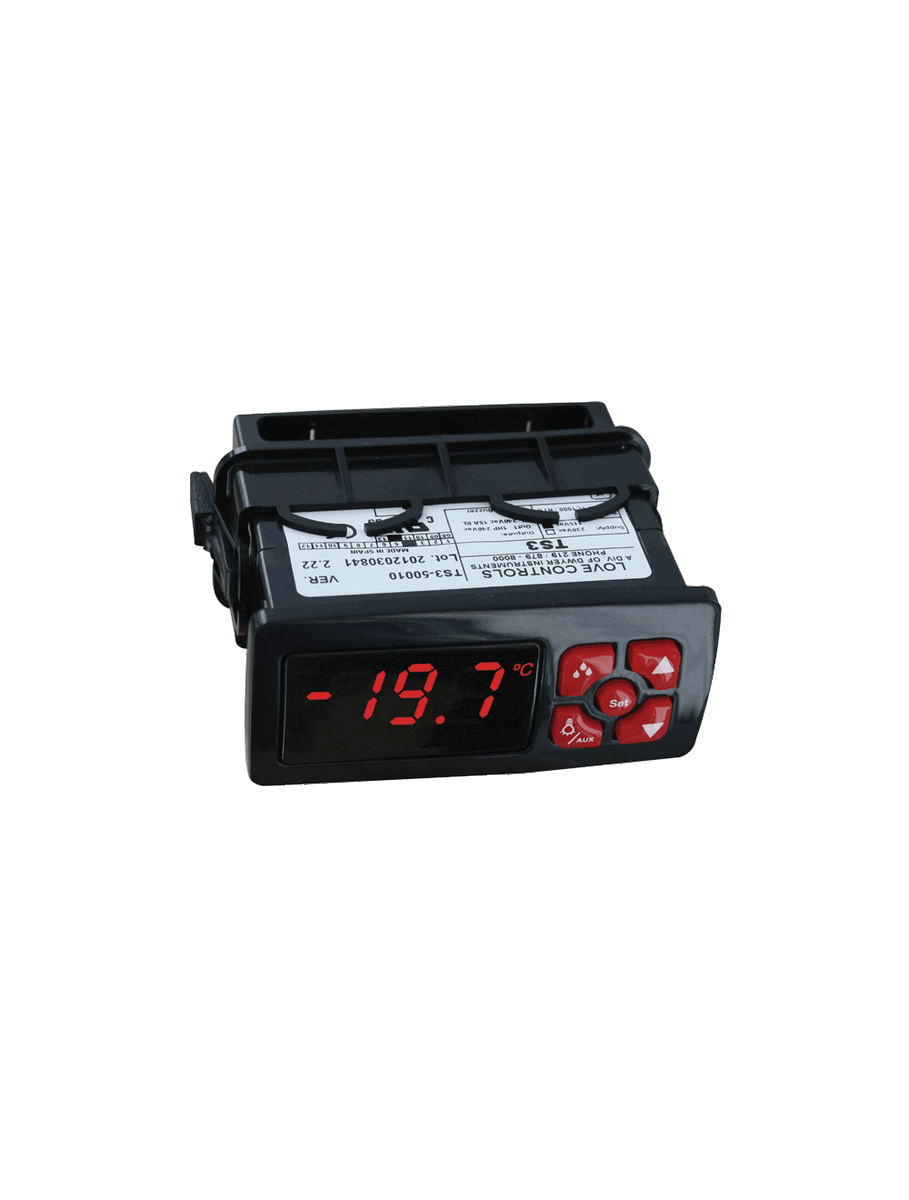

TS3-50020 | Digital temperature switch | single temperature probe input | SPDT relay output | red display and buttons | 230 VAC power supply. | Dwyer
Digital temperature switch, single temperature probe input, SPDT relay output, red display and buttons, 230 VAC power supply.
Documents and manuals
Dwyer TS3-50020 Documents
Overview
Details for TS3-50020
Digital temperature switch | single temperature probe input | SPDT relay output | red display and buttons | 230 VAC power supply.
SERIES TS3 DIGITAL TEMPERATURE SWITCH
The Series TS3 Digital Temperature Switch is the ideal control for on/off heating or cooling applications. This generation of controls has field selectable engineering units and temperature probe types in order to reduce the combination of parts that need to be stocked. A built-in real time clock is used for HACCP logging of temperature alarms caused by temperatures outside of their set limits or loss of power. For refrigeration applications, the defrost cycle can be initiated based on time or using the front panel keys. For programming multiple units, the model TS2-K configuration key can be used to quickly download parameter settings.
Product Applications
- Refrigerators
- Chillers
- Food service equipment
- Medical sterilizers or equipment
- Field selectable °F or °C
- Real time clock
- HACCP alarm logging
- Configuration key
Specifications
- Series
- TS3 DIGITAL TEMPERATURE SWITCH
- Category/Type
- Temperature
- Type
- Switches
- Series
- TS3 DIGITAL TEMPERATURE SWITCH
- Probe Range
- PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
- Input
- PTC (1000Ω @ 25°C); NTC (10KΩ @ 25°C).
- Output
- R1 SPDT relay resistive load 16 A; inductive load 10 FLA; 60 LRA @ 240 VAC.
- Horsepower Rating
- 1HP @ 240 VAC.
- Control Type
- On/Off.
- Power Requirement
- 115 VAC; 230 VAC; 12 VAC/VDC; 24 VAC/DC (±10%) depending on model.
- Power Consumption
- 3.6 VA (115/230/24 V); 1.5 VA (12V).
- Accuracy
- ±1% FS.
- Display
- 3 digit; plus sign.
- Resolution
- 0.1°.
- Memory Backup
- Nonvolatile memory.
- Ambient Temperature
- 32 to 131°F (0 to 55°C).
- Weight
- 2.3 oz (65 g).
- Agency Approvals
- CE; cURus.
