Documents: TS2-K
TS2-K | Programming configuration key. | Dwyer
Programming configuration key.
Overview Details for TS2-K
Programming configuration key.

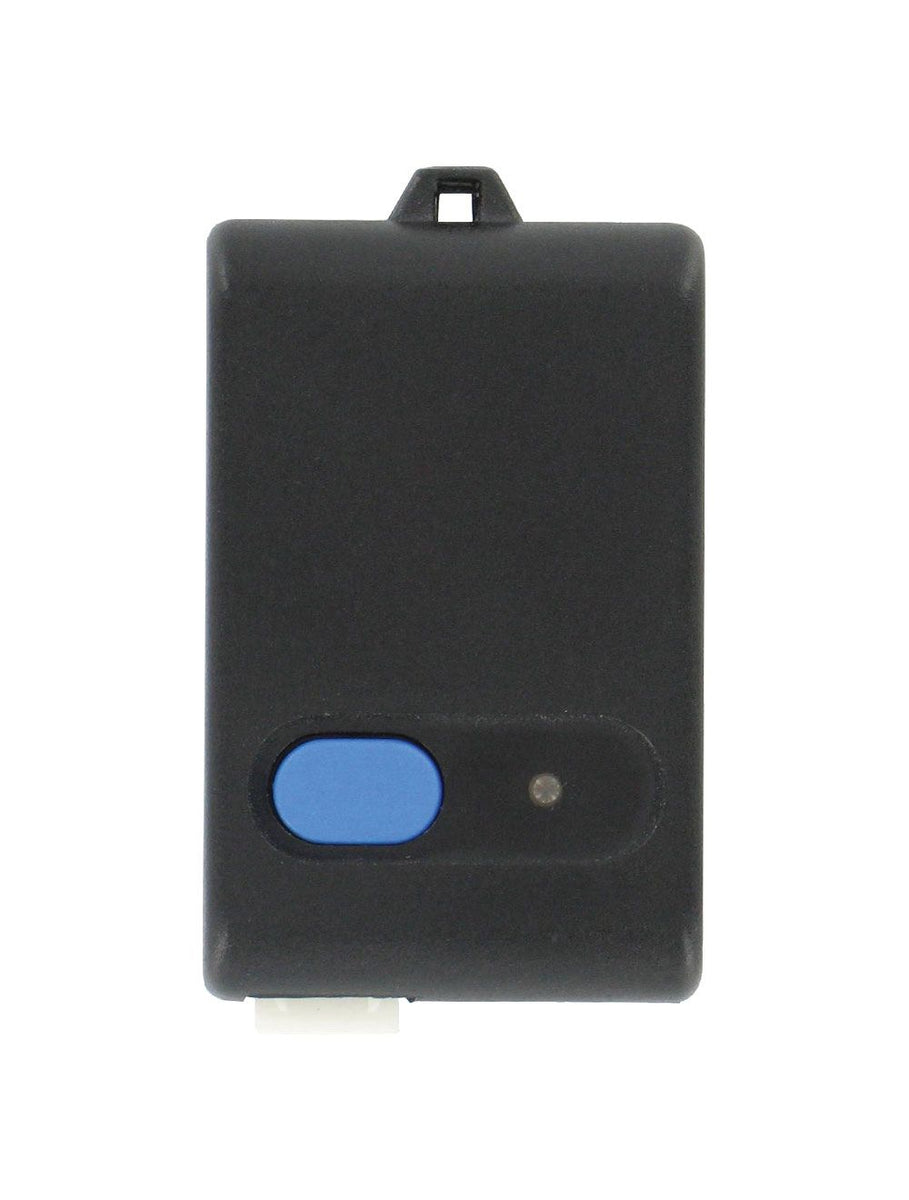

MODEL TS2-K DIGITAL TEMPERATURE SWITCH CONFIGURATION KEY
The Model TS2-K Digital Temperature Switch Configuration Key allows users of the Series TS2, Series TSS2, Series TSX, Series TSF, and Series TSWB to quickly program multiple controllers without external power. The internal dip switch configures the key to upload or download the parameters. The integral connector plugs directly into the digital temperature switch eliminating extra wires.
Specifications
| Item Number | TS2-K |
| Brand | Dwyer |
| Battery | 12 V Type 23 A alkaline battery; included; user replaceable. |
| Category/Type | Temperature |
| Dimensions | 2.20" x 1.42" x 0.63" (56 x 36 x 16 mm). |
| Operating Temperature | 32 to 122°F (0 to 50°C). |
| Storage Temperature | -4 to 158°F (-20 to 70°C). |
| Type | Switches |
