TS-13021 | Digital temperature switch | 230 V | 16 A | °C display. | Dwyer
Digital temperature switch, 230 V, 16 A, °C display.
Documents and manuals
Dwyer TS-13021 Documents
Overview
Details for TS-13021
Digital temperature switch | 230 V | 16 A | °C display.

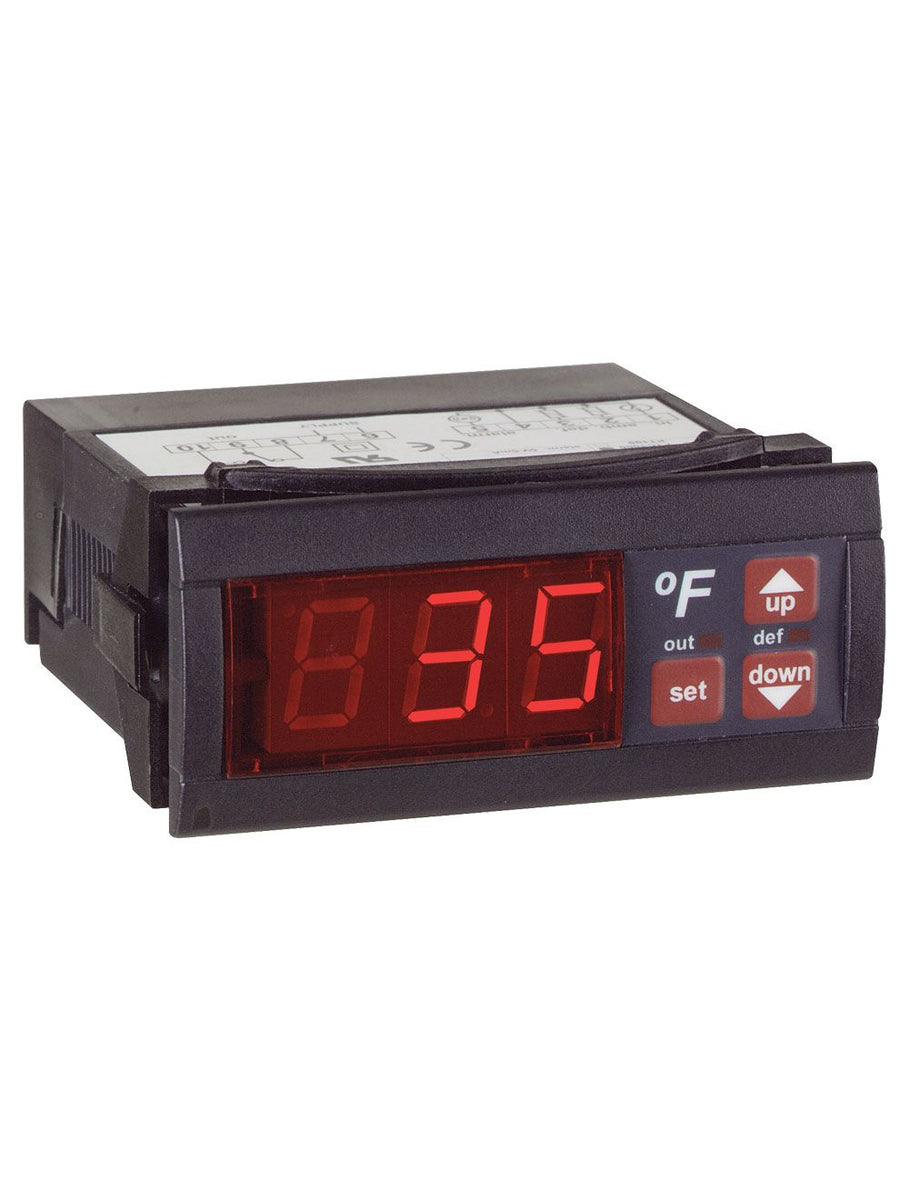

SERIES TS DIGITAL TEMPERATURE SWITCH
The Series TS Digital Temperature Switch is designed to regulate many heating and cooling applications. Easy programming via the tactile front keypad enables quick setup of the 12 parameters for simple, reliable operation. The user can define set point, heating/cooling regulation, hysteresis, cycle time, ambient probe adjustment and defrosting time. The unit features error or alarm messaging and password protection. View probe temperature on the bright red, 3-digit LED display. Select between temperature display in °F or °C, and 110 VAC, 230 VAC, or 12 VDC power supplies. The Series TS includes a thermistor with 5 ft (1.5 m) cable, fitting clips for panel mounting, gasket, rear terminal cover, and instruction manual.
Product Applications
- Industrial chillers
- Environmental chambers
- Walk-ins and freezers
- Heat sealers
- Sterilizers
- Beer and wine chillers
- Mug frosters
- Coolers
- Display cases and cabinets
- Warmers
- Meat and produce storage
- Floral preservation
- Refrigerated transportation
- Laboratories
- Food service equipment
- Ovens and dryers
- Tobacco preservation
- Hot melt glue stichers for case erectors
- Cool rooms
- Burn-in rooms and chambers
- Cold water citrus packing
Specifications
- Series
- TS DIGITAL TEMPERATURE SWITCH
- Category/Type
- Temperature
- Type
- Switches
- Series
- TS DIGITAL TEMPERATURE SWITCH
- Probe Range
- -58 to 302°F (-50 to 150°C).
- Input
- 1.5-inch (4 cm) thermistor (1000Ω @ 25°C) with 5 ft (1.5 m) cable.
- Output
- 16A SPDT relay @ 250 VAC resistive.
- Horsepower Rating (HP)
- 1 HP for 16A.
- Control Type
- ON/OFF.
- Power Requirements
- 110 VAC; 230 VAC or 12 VAC/VDC (depending on model). 4VA (230V).
- Accuracy
- ±1°C.
- Display
- 3-digit; red; 1/2" digits.
- Resolution
- 1°.
- Memory Backup
- Nonvolatile memory.
- Temperature Limits
- Ambient: 32 to 158°F (0 to 70°C).
- Storage Temperature
- -4 to 176°F (-20 to 80°C).
- Weight
- 2.3 oz (65 g).
- Front Panel Rating
- IP64.
- Agency Approvals
- CE; ULc; UL.
