TRI2-200-25E | 0 to 200 psi (0 to 1400 kPa) | 1/4" back mount with ext. shank | Dwyer
0 to 200 psi (0 to 1400 kPa), 1/4" back mount with ext. shank

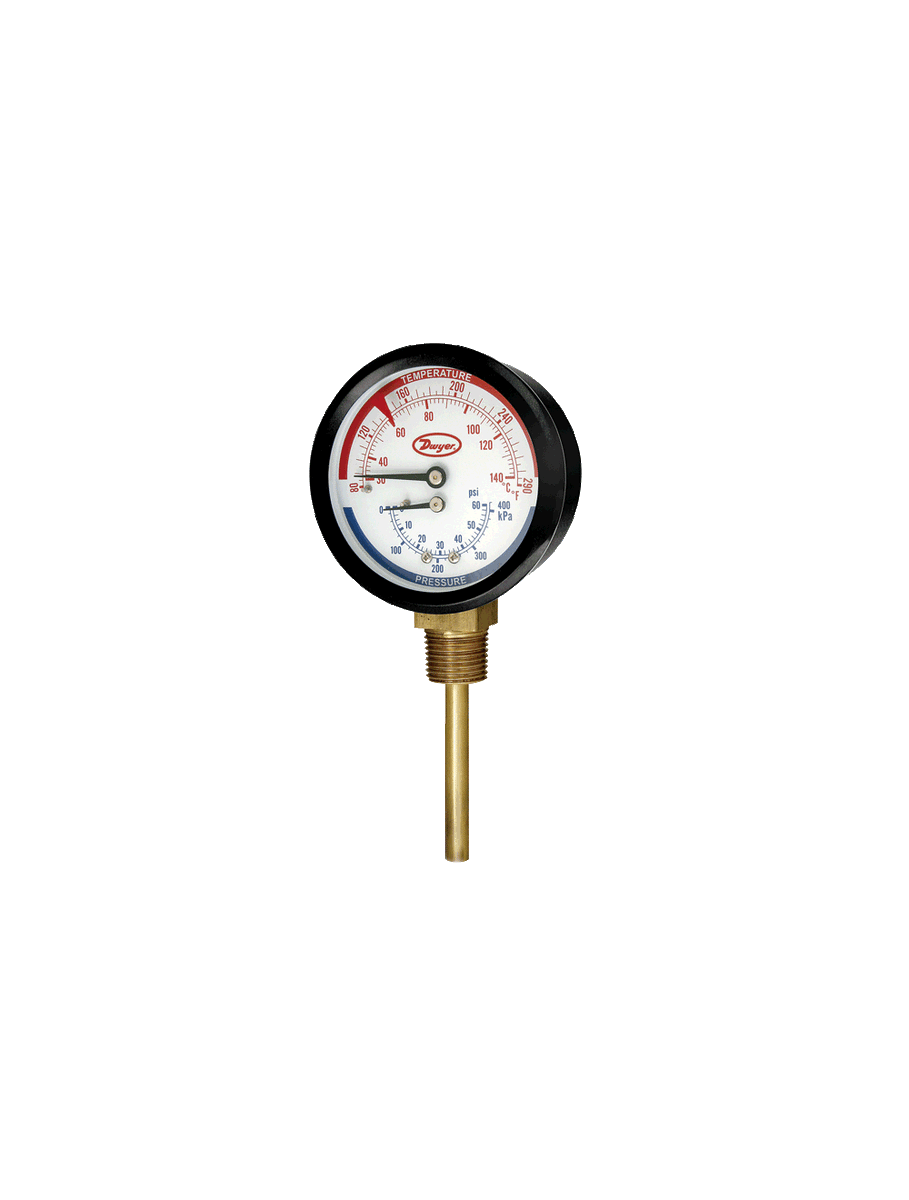

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TRI2-200-25E
Documents and manuals
Dwyer TRI2-200-25E Documents
Overview
Details for TRI2-200-25E
See catalog product page for full listing
0 to 200 psi (0 to 1400 kPa) | 1/4" back mount with ext. shank
SERIES TRI2 TRIDICATOR GAGE
Combination Pressure/Temperature Gage
The Series TRI2 Tridicator Gage combines the value of an individual pressure gage and thermometer inone instrument. These tridicators simplify installation which reduces time and savesmoney. The moveable dial with blue pressure markings and red temperature markingsmake the instrument easy to read. Pressure is indicated in both psi and kPa, whiletemperature is measured in both Fahrenheit and Celsius. Series TRI2 comes in threedifferent connection options including lower mount, center back mount, and center backmount with extension shank.
Specifications
- Series
- TRI2 TRIDICATOR GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- TRI2 TRIDICATOR GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass connection and phosphor bronze Bourdon tube.
- Housing
- Drawn steel; black finish.
- Accuracy
- Pressure ±3-2-3%; Temperature ±1 scale division.
- Temperature Range
- All models: 80 to 290°F (30 to 140°C).
- Temperature Limits
- Ambient: -40 to 250°F (-40 to 120°C);Process: 80 to 290°F (30 to 140°C).
- Pressure Limits
- FS range.
- Size
- 3" (76 mm).
- Process Connections
- 1/2" male NPT back or bottom; 1/4" male NPT back connection.
- Weight
- 12.35 oz (350 g) center back mount and lower mount;14.11 oz (400 g) center back mount with extension shank.
