TRI-75-50 | Tridicator gage | range 0-75 psi (0-500 kPa) | 1/2" NPT CBM. | Dwyer
Tridicator gage, range 0-75 psi (0-500 kPa), 1/2" NPT CBM.

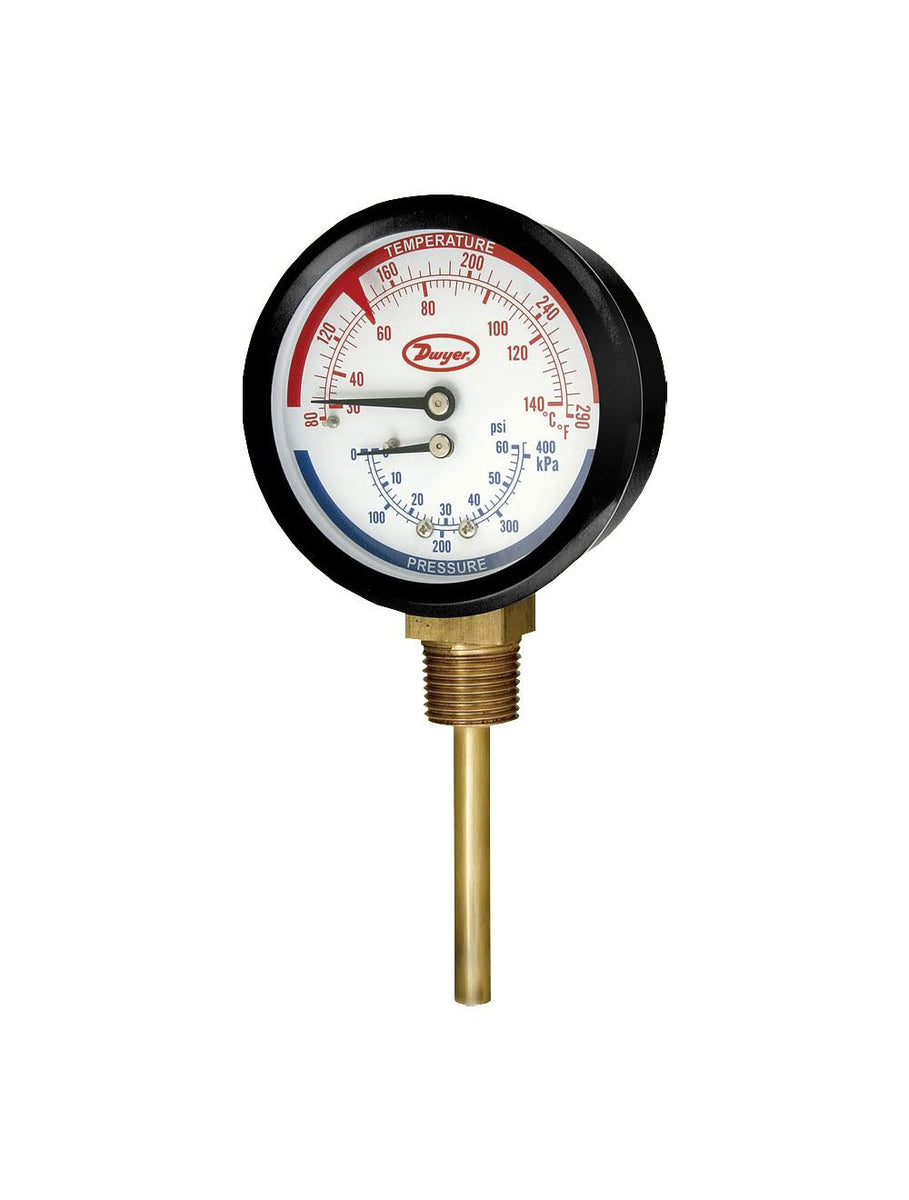

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TRI-75-50
Documents and manuals
Dwyer TRI-75-50 Documents
Overview
Details for TRI-75-50
See catalog product page for full listing
Tridicator gage | range 0-75 psi (0-500 kPa) | 1/2" NPT CBM.
SERIES TRI TRIDICATOR GAGE
Combination Pressure/Temperature Gage
The Series TRI combines the value of an individual pressure gage and thermometer in one instrument. These tridicators simplify installation which reduces time and saves money. The movable dial with blue pressure markings and red temperature markings make the instrument easy to read. Pressure is indicated in both psi and kPa, while temperature is measured in both Fahrenheit and Celsius. Series TRI comes in three different connection options including lower mount, center back mount, and center back mount with extension shank.
Product Applications
- Boiler Monitoring
Specifications
- Series
- TRI TRIDICATOR GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- TRI TRIDICATOR GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass connection and phosphor bronze Bourdon tube.
- Housing
- Drawn Steel; black finish.
- Accuracy
- Pressure ±3-2-3%; Temperature ±1 scale division.
- Temperature Range
- All models: 80 to 290°F (30 to 140°C).
- Temperature Limits
- Ambient: -40 to 250°F (-40 to 120°C); Process: 80 to 290°F (30 to 140°C).
- Pressure Limits
- Full scale range.
- Size
- 3" (76 mm)
- Process Connections
- 1/2" male NPT back or bottom; 1/4" male NPT back connection.
- Weight
- 12.3 oz (348.7 g).
