Documents: TRI-100-25E

Series TRI Catalog Page More Info

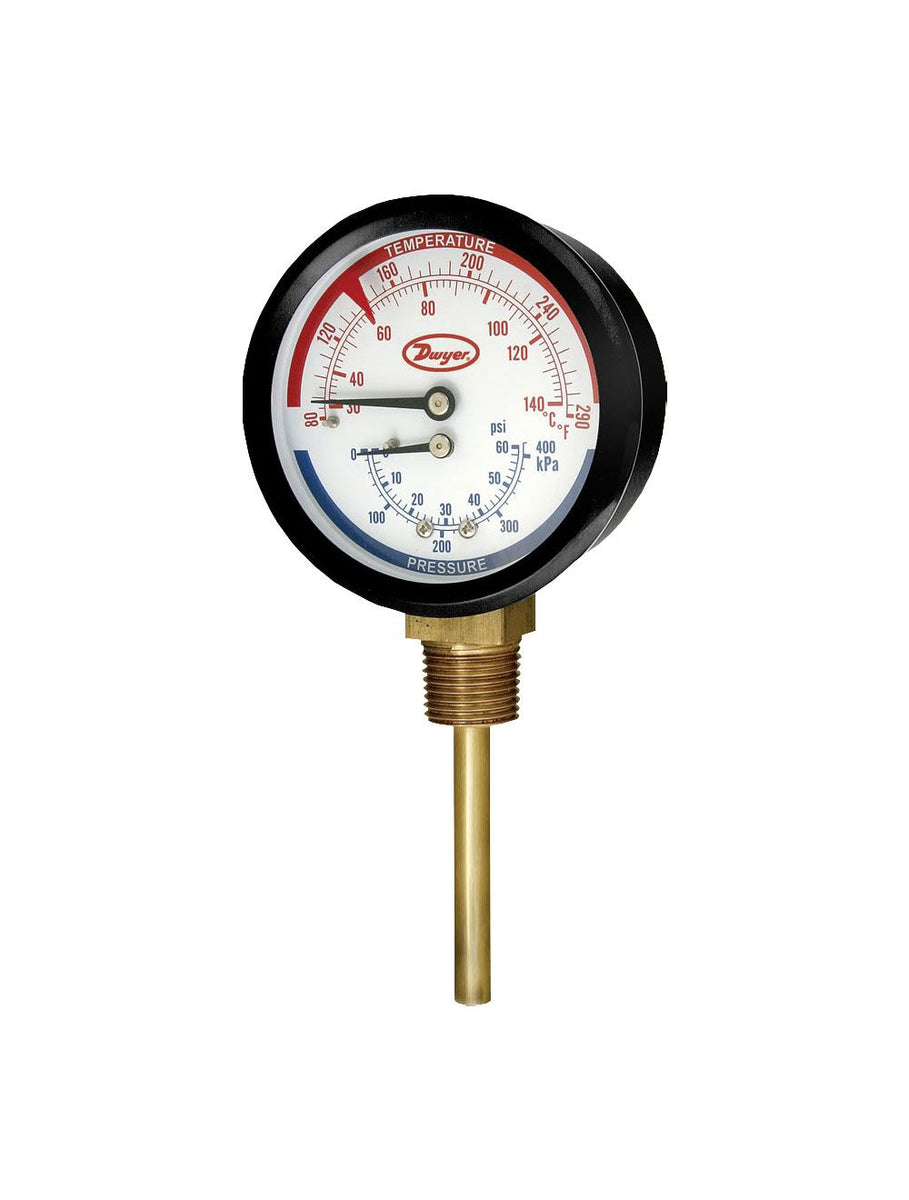

TRI-100-25E | Tridicator gage | range 0-100 psi (0-700 kPa) | 1/4" NPT CBM (ext. shank). | Dwyer

Tridicator gage, range 0-100 psi (0-700 kPa), 1/4" NPT CBM (ext. shank).

Brand: DwyerSKU: TRI-100-25E

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TRI-100-25E

Jump to: Overview & Specifications Reviews

Overview Details for TRI-100-25E

See catalog product page for full listing

Tridicator gage | range 0-100 psi (0-700 kPa) | 1/4" NPT CBM (ext. shank).

SERIES TRI TRIDICATOR GAGE

Combination Pressure/Temperature Gage

The Series TRI combines the value of an individual pressure gage and thermometer in one instrument. These tridicators simplify installation which reduces time and saves money. The movable dial with blue pressure markings and red temperature markings make the instrument easy to read. Pressure is indicated in both psi and kPa, while temperature is measured in both Fahrenheit and Celsius. Series TRI comes in three different connection options including lower mount, center back mount, and center back mount with extension shank.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Boiler Monitoring

Specifications

Series: TRI TRIDICATOR GAGE
Category/Type: Pressure
Type: Single Pressure
Series: TRI TRIDICATOR GAGE
Service: Compatible gases and liquids.
Wetted Materials: Brass connection and phosphor bronze Bourdon tube.
Housing: Drawn Steel; black finish.
Accuracy: Pressure ±3-2-3%; Temperature ±1 scale division.
Temperature Range: All models: 80 to 290°F (30 to 140°C).
Temperature Limits: Ambient: -40 to 250°F (-40 to 120°C); Process: 80 to 290°F (30 to 140°C).
Pressure Limits: Full scale range.
Size: 3" (76 mm)
Process Connections: 1/2" male NPT back or bottom; 1/4" male NPT back connection.
Weight: 12.3 oz (348.7 g).
