TR-7-XB | Ground continuity control with 72" cable | battery type contactor | 120V and UL listed. | Dwyer
Ground continuity control with 72" cable, battery type contactor, 120V and UL listed.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TR-7-XB
Documents and manuals
Dwyer TR-7-XB Documents
Overview
Details for TR-7-XB
See catalog product page for full listing
Ground continuity control with 72" cable | battery type contactor | 120V and UL listed.

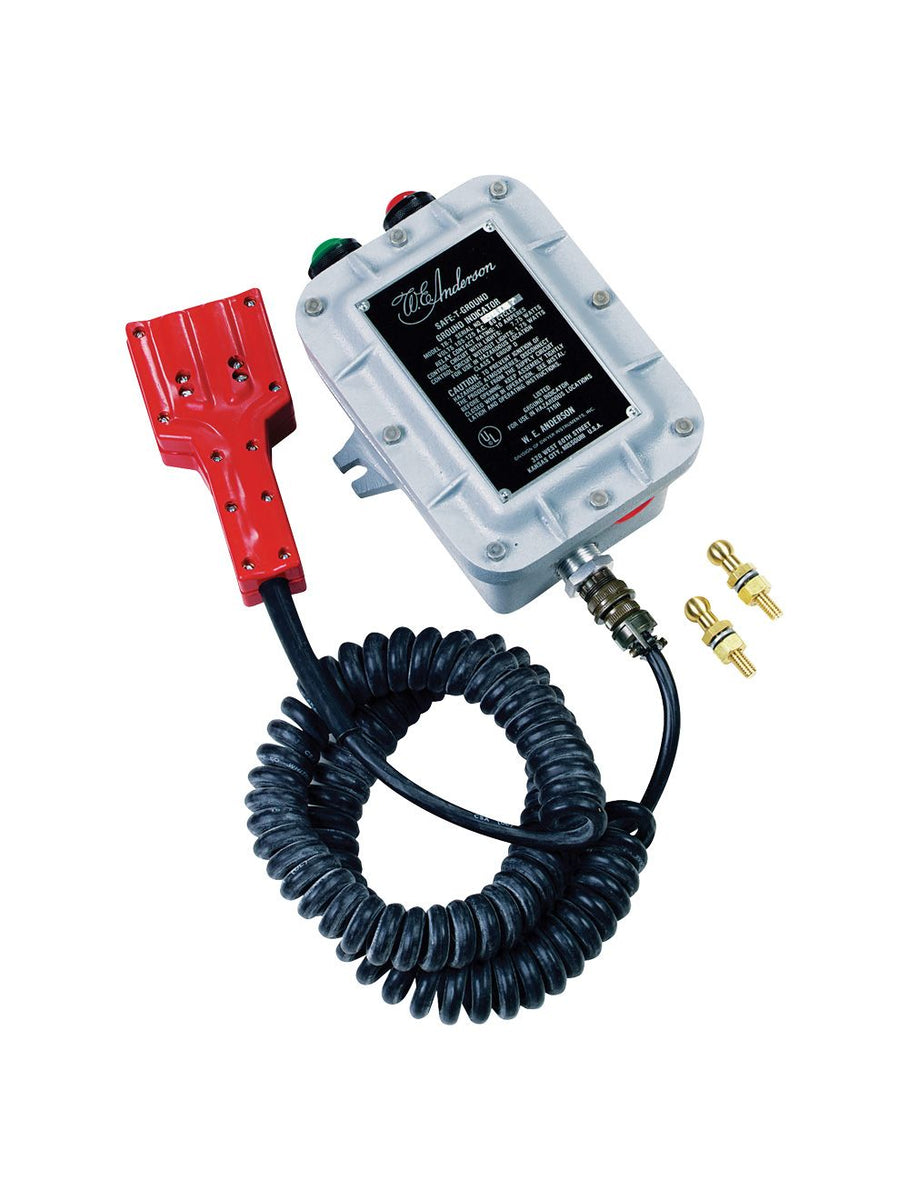

MODEL TR-7 SAFE-T-GROUND
Explosion-proof, Intrinsically Safe, Ground Continuity Control
Model TR-7 Safe-T-Ground provides continuous monitoring of a truck’s ground connection throughout loading operations. Static electricity is often brought in by tank trucks entering the loading area. The Safe-T-Ground Model TR-7 instantly stops loading operations if a tank truck loses its ground.
To safeguard loading operations, the Safe-T-Ground circuit can be wired into your pump control – and to an audible alarm or signal light.
Product Applications
- Chemical
- Oil and gas
- Explosion-proof housing
- Audible alarm and LED status indicators
Specifications
- Power Requirements
- 105-125 VAC 60 Hz 7.75 watts - with light; 1.75 watts - without lights. Optional 220-240VAC; 50/60 Hz.
- Electrical Rating; Relay
- DPDT; 10 amps; 125 VAC; 60 Hz contact rating.
- Wiring
- Terminal strip.
- Conduit Connection
- 3/4" NPT.
- Installation
- 7/16" mounting lugs; integrally cast.
- Contactor
- (Grounding clamp) molded polyethylene with berylium copper contact clips. 16-2 type SO coiled cable; retracts to 3'; extends to 16'.
- Grounding Studs
- 2 supplied. Order a pair for each truck.
- Shipping Weight
- 20 lb with contactor and cord.
- Agency Approvals
- UL.
