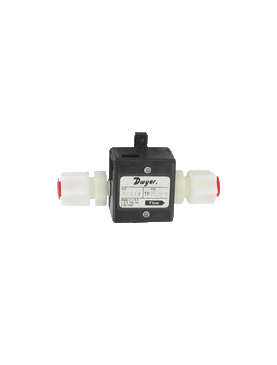

TFP-LP08 | Liquid turbine flow meter | range 7.9 to 79 GPH (0.5 to 5 LPM) | 3/8" OD connection. | Dwyer

Liquid turbine flow meter, range 7.9 to 79 GPH (0.5 to 5 LPM), 3/8" OD connection.

Brand: DwyerSKU: TFP-LP08

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFP-LP08

Jump to: Overview & Specifications Reviews

Overview Details for TFP-LP08

See catalog product page for full listing

Liquid turbine flow meter | range 7.9 to 79 GPH (0.5 to 5 LPM) | 3/8" OD connection.

Series TFP-LP Liquid Turbine Flow Meter

PPS Body, 0 to 5 VDC and Pulse Outputs

Series TFP-LP Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. Couple this unit with a Series TM2 Flow Totalizer for a remote flow monitoring display. A power adapter or mating cable assembly is required for operation.

Specifications

Series: TFP-LP Liquid Turbine Flow Meter
Category/Type: Flow
Type: Flow Transmitters
Series: TFP-LP Liquid Turbine Flow Meter
Service: Clean liquids compatible with wetted materials.
Wetted Materials: PPS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
Accuracy: ±1% of full scale.
Linearity: ±1% of full scale.
Repeatability: ±0.2% of full scale.
Temperature Limits: 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of full scale per °C.
Pressure Limits: 100 psig (6.8 bar).
Process Connection: Compression fitting; see Catalog page.
Power Requirements: 11.5 to 15 VDC.
Power Consumption: 35 mA @ 12 VDC.
Output Signal: 0 to 5 VDC: Minimum 2.5 kΩ load; Pulse: 7.5 VDC peak buffered square wave.
Electrical Connections: Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories page.
Enclosure Rating: IP10 (NEMA 1).
Weight: 0.19 lb (85 g).
Agency Approvals: CE.
