TFP-LP06 | Liquid turbine flow meter | range 1.6 to 16 GPH (0.1 to 1 LPM) | 1/4" OD connection. | Dwyer

Liquid turbine flow meter, range 1.6 to 16 GPH (0.1 to 1 LPM), 1/4" OD connection.

Brand: DwyerSKU: TFP-LP06

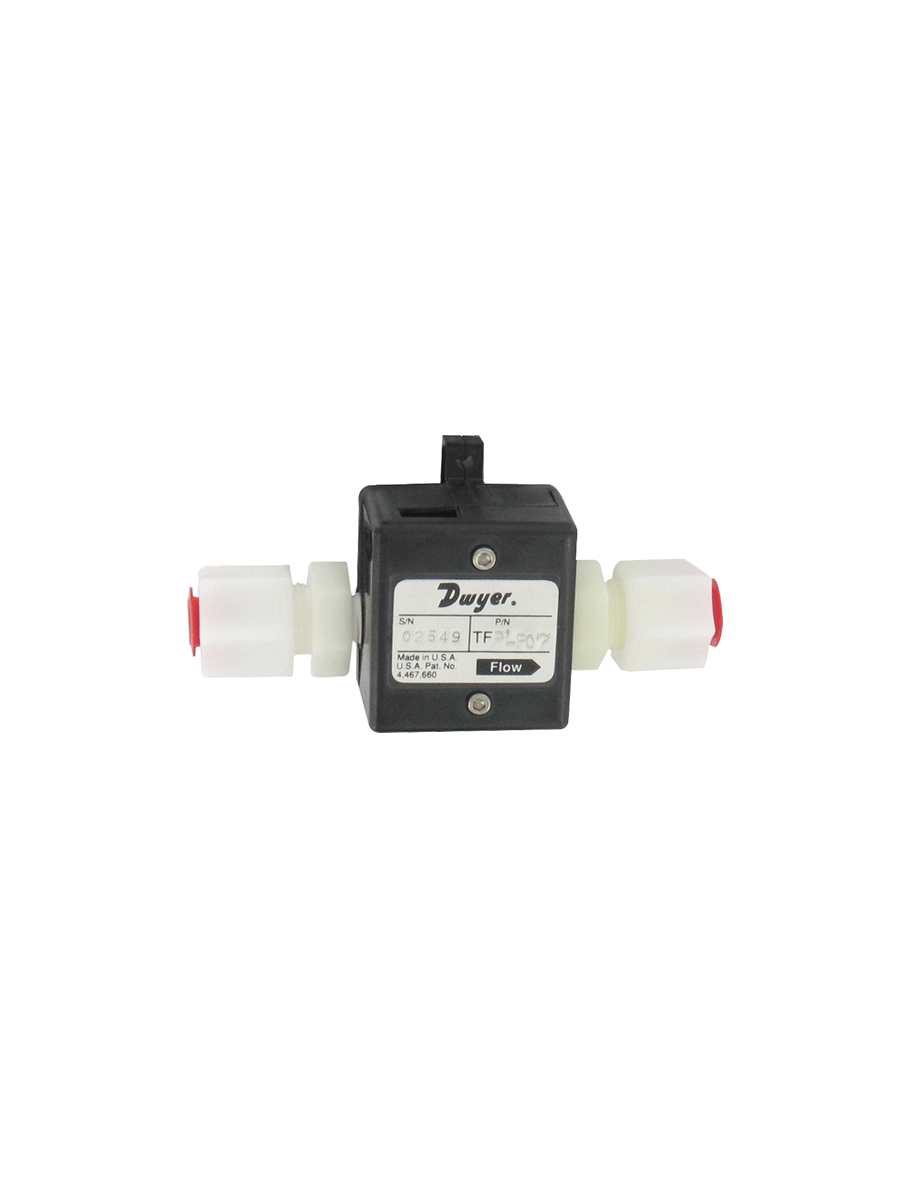

Dwyer | TFP-LP06
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFP-LP06

Overview Details for TFP-LP06

See catalog product page for full listing

Liquid turbine flow meter | range 1.6 to 16 GPH (0.1 to 1 LPM) | 1/4" OD connection.

Series TFP-LP Liquid Turbine Flow Meter

PPS Body, 0 to 5 VDC and Pulse Outputs

Series TFP-LP Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. Couple this unit with a Series TM2 Flow Totalizer for a remote flow monitoring display. A power adapter or mating cable assembly is required for operation.

Specifications

Series
TFP-LP Liquid Turbine Flow Meter
Category/Type
Flow
Type
Flow Transmitters
Series
TFP-LP Liquid Turbine Flow Meter
Service
Clean liquids compatible with wetted materials.
Wetted Materials
PPS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
Accuracy
±1% of full scale.
Linearity
±1% of full scale.
Repeatability
±0.2% of full scale.
Temperature Limits
41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of full scale per °C.
Pressure Limits
100 psig (6.8 bar).
Process Connection
Compression fitting; see Catalog page.
Power Requirements
11.5 to 15 VDC.
Power Consumption
35 mA @ 12 VDC.
Output Signal
0 to 5 VDC: Minimum 2.5 kΩ load; Pulse: 7.5 VDC peak buffered square wave.
Electrical Connections
Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories page.
Enclosure Rating
IP10 (NEMA 1).
Weight
0.19 lb (85 g).
Agency Approvals
CE.
