TFM-LP07 | Liquid turbine flow meter | range 3.2 to 32 GPH (0.2 to 2 LPM) | 1/4" OD connection. | Dwyer

Liquid turbine flow meter, range 3.2 to 32 GPH (0.2 to 2 LPM), 1/4" OD connection.

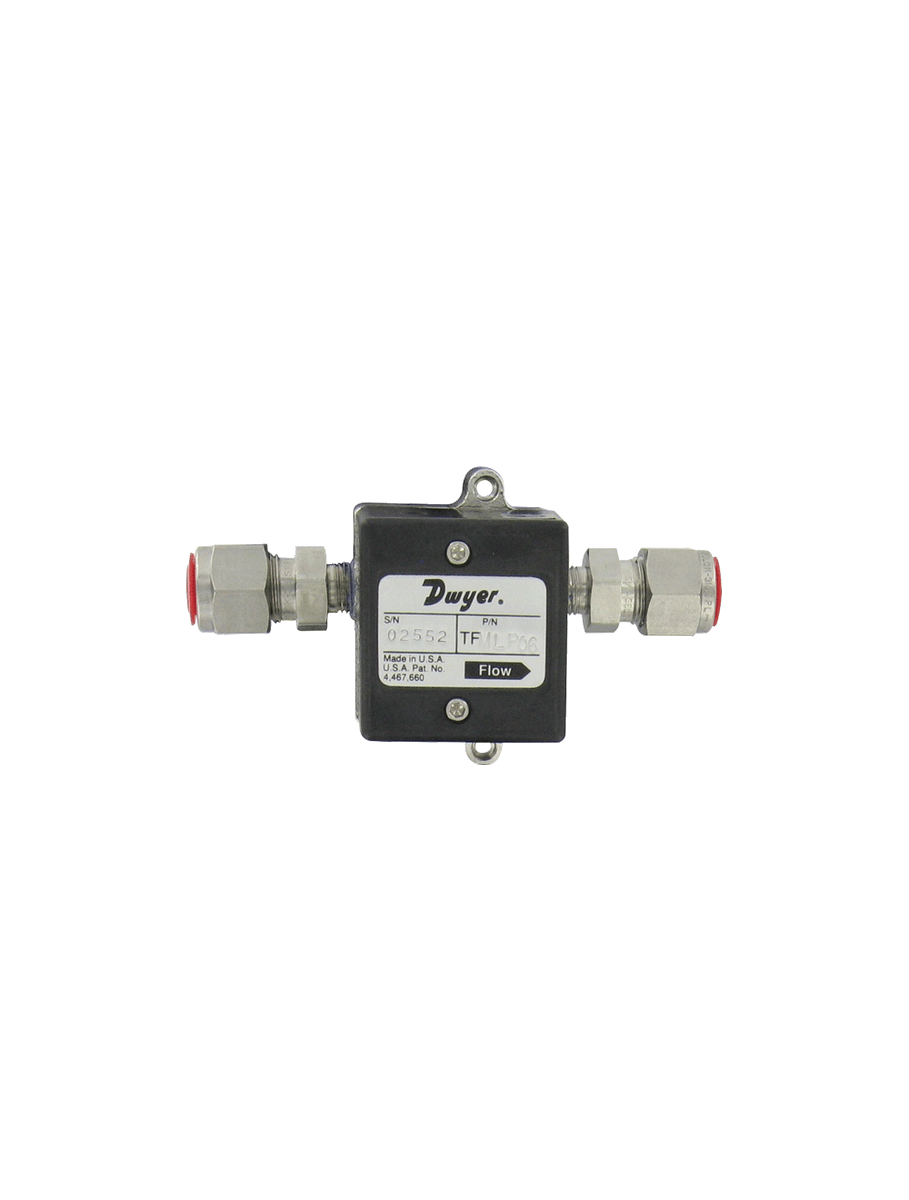

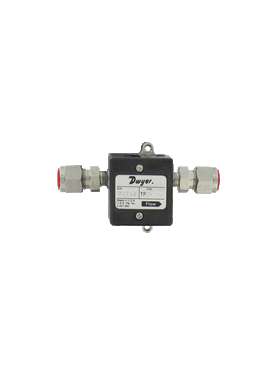

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFM-LP07

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TFM-LP07 Documents

TFM-LP Series TFM-LP Catalog Page More Info

Overview

Details for TFM-LP07

See catalog product page for full listing

Liquid turbine flow meter | range 3.2 to 32 GPH (0.2 to 2 LPM) | 1/4" OD connection.

Series TFM-LP Liquid Turbine Flow Meter

316SS Body, 0 to 5 VDC and Pulse Outputs

The Series TFM-LP Liquid Flowmeters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC and pulsed output signal for recording and data logging. A power adapter or mating cable assembly is required for operation

Product Applications

Industrial flow monitoring
Commercial systems
Laboratory equipment

Rugged 316 SS body
High repeatability with patented microturbine design
Design accurately measures flow rates with no zero drift and no required maintenance

Specifications

Series: TFM-LP Liquid Turbine Flow Meter
Category/Type: Flow
Type: Flow Transmitters
Series: TFM-LP Liquid Turbine Flow Meter
Service: Clean liquids compatible with wetted materials.
Wetted Materials: 316 SS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
Accuracy: ±1% of FS.
Linearity: ±1% of FS.
Repeatability: ±0.2% of FS.
Temperature Limits: 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of FS per °C.
Pressure Limits: 500 psig (34.5 bar).
Process Connection: Compression fitting; see model table on Catalog page.
Power Requirements: 11.5 to 15 VDC.
Power Consumption: 35 mA @ 12 VDC.
Output Signal: 0 to 5 VDC: Minimum 2.5 kΩ load; Pulse: 7.5 VDC peak buffered square wave.
Electrical Connections: Four-pin power and signal connector. A power adapter or mating cable required for operation. See accessories table.
Enclosure Rating: IP10 (NEMA 1).
Weight: 0.86 lb (390 g).
Agency Approvals: CE.
