TFM-LP04 | Liquid turbine flow meter | range .32 to 3.2 GPH (0.02 to 0.2 LPM) | 1/4" OD connection. | Dwyer
Liquid turbine flow meter, range .32 to 3.2 GPH (0.02 to 0.2 LPM), 1/4" OD connection.

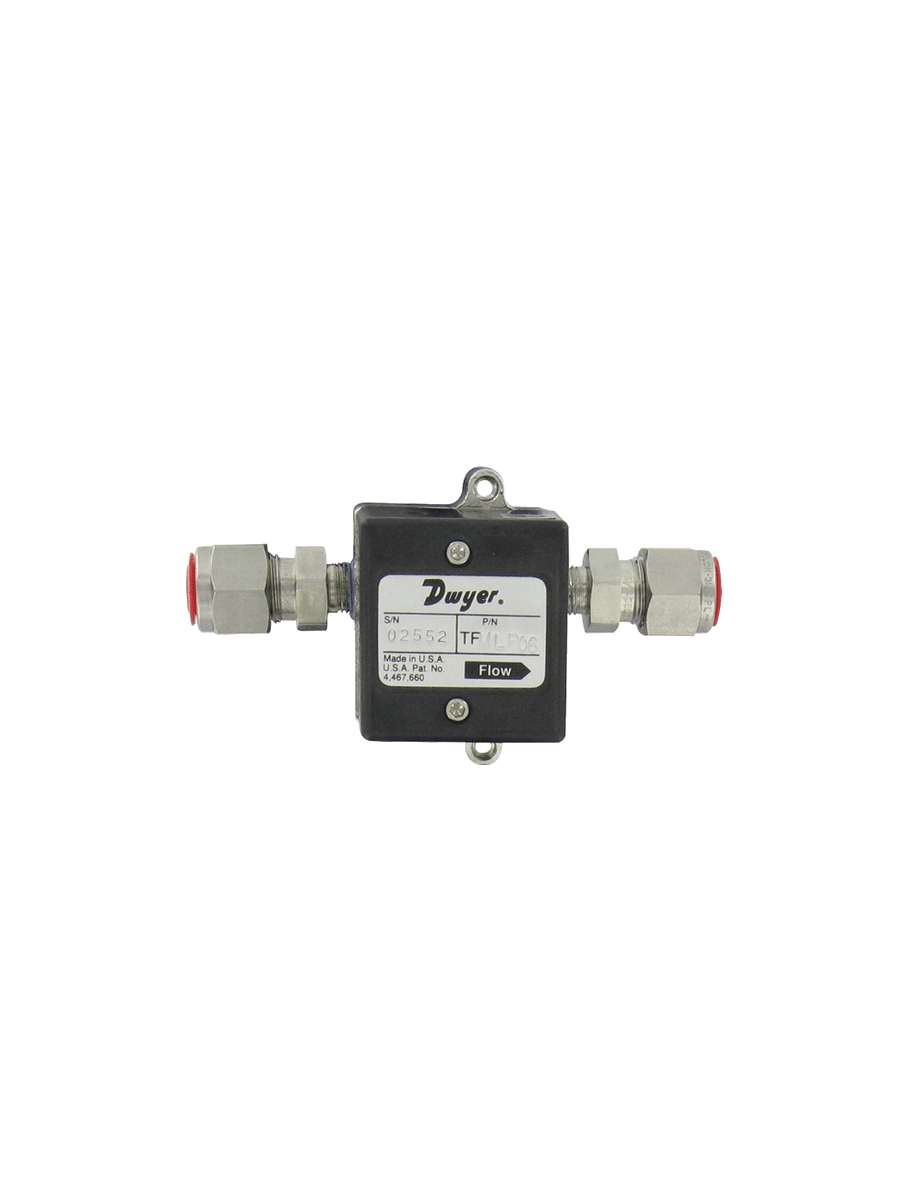

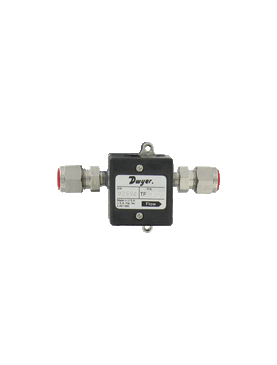

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFM-LP04
Documents and manuals
Dwyer TFM-LP04 Documents
Overview
Details for TFM-LP04
See catalog product page for full listing
Liquid turbine flow meter | range .32 to 3.2 GPH (0.02 to 0.2 LPM) | 1/4" OD connection.
Series TFM-LP Liquid Turbine Flow Meter
316SS Body, 0 to 5 VDC and Pulse Outputs
The Series TFM-LP Liquid Flowmeters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC and pulsed output signal for recording and data logging. A power adapter or mating cable assembly is required for operation
Product Applications
- Industrial flow monitoring
- Commercial systems
- Laboratory equipment
- Rugged 316 SS body
- High repeatability with patented microturbine design
- Design accurately measures flow rates with no zero drift and no required maintenance
Specifications
- Series
- TFM-LP Liquid Turbine Flow Meter
- Category/Type
- Flow
- Type
- Flow Transmitters
- Series
- TFM-LP Liquid Turbine Flow Meter
- Service
- Clean liquids compatible with wetted materials.
- Wetted Materials
- 316 SS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
- Accuracy
- ±1% of FS.
- Linearity
- ±1% of FS.
- Repeatability
- ±0.2% of FS.
- Temperature Limits
- 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of FS per °C.
- Pressure Limits
- 500 psig (34.5 bar).
- Process Connection
- Compression fitting; see model table on Catalog page.
- Power Requirements
- 11.5 to 15 VDC.
- Power Consumption
- 35 mA @ 12 VDC.
- Output Signal
- 0 to 5 VDC: Minimum 2.5 kΩ load; Pulse: 7.5 VDC peak buffered square wave.
- Electrical Connections
- Four-pin power and signal connector. A power adapter or mating cable required for operation. See accessories table.
- Enclosure Rating
- IP10 (NEMA 1).
- Weight
- 0.86 lb (390 g).
- Agency Approvals
- CE.
