TFM-LI06 | Liquid turbine flow meter | range 1.6 to 16 GPH (0.1 to 1 LPM) | 1/4" OD connection. | Dwyer

Liquid turbine flow meter, range 1.6 to 16 GPH (0.1 to 1 LPM), 1/4" OD connection.

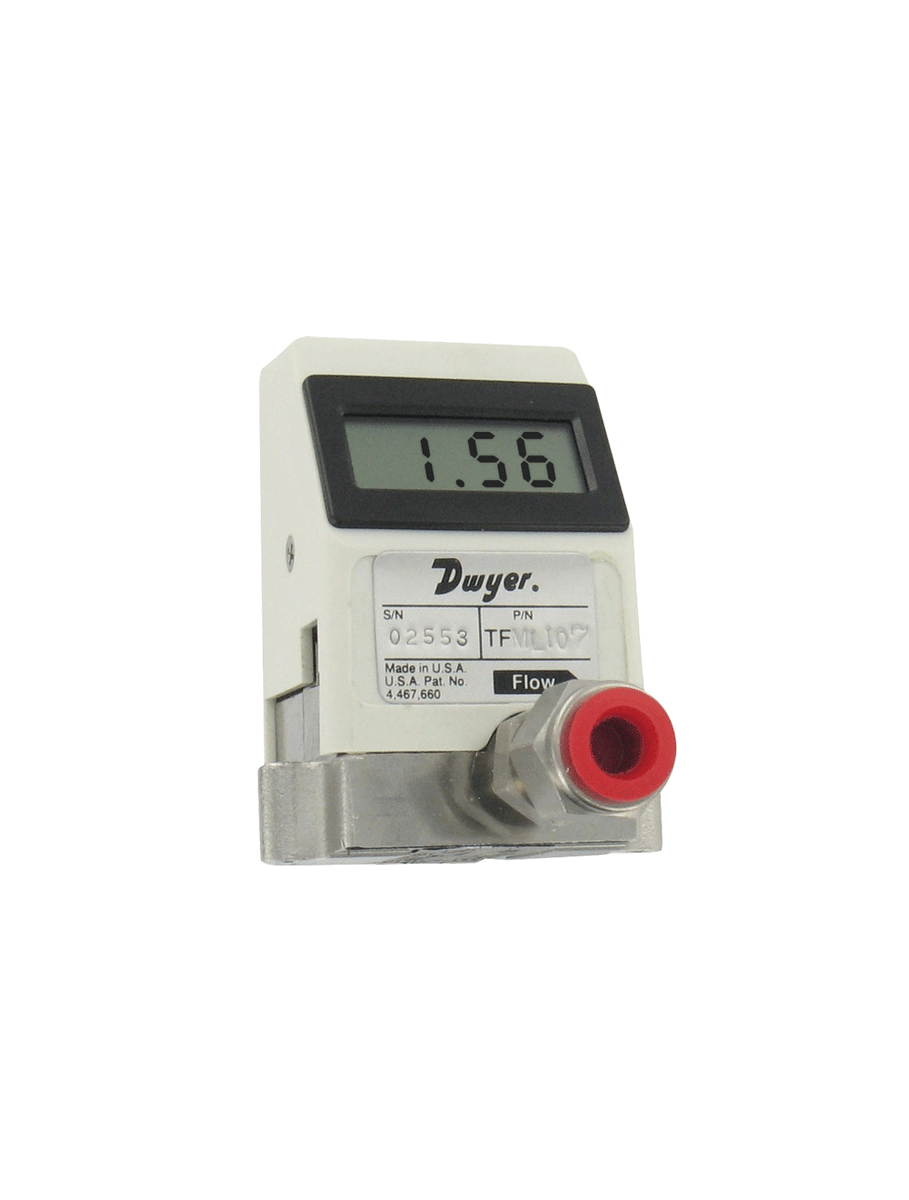

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFM-LI06

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TFM-LI06 Documents

TFM-LI Series TFM-LI Catalog Page More Info

Overview

Details for TFM-LI06

See catalog product page for full listing

Liquid turbine flow meter | range 1.6 to 16 GPH (0.1 to 1 LPM) | 1/4" OD connection.

Series TFM-LI Liquid Turbine Flow Meter

316SS Body, 0 to 5 VDC Output, LCD Indication

Series TFM-LI Liquid Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. A power adapter or mating cable assembly is required for operation.

Specifications

Series: TFM-LI Liquid Turbine Flow Meter
Category/Type: Flow
Type: Flow Transmitters
Series: TFM-LI Liquid Turbine Flow Meter
Service: Clean liquids compatible with wetted materials.
Wetted Materials: 316 SS; acetal; sapphire; glass; epoxy; and fluoroelastomer.
Accuracy: ±1% of full scale.
Linearity: ±1% of full scale.
Repeatability: ±0.2% of full scale.
Temperature Limits: 41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of full scale per °C.
Pressure Limits: 500 psig (34.5 bar).
Process Connection: Compression fitting; see Catalog page.
Power Requirements: 11.5 to 15 VDC.
Power Consumption: 35 mA @ 12 VDC.
Output Signal: 0 to 5 VDC; minimum 2.5 kΩ load.
Electrical Connections: Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories on Catalog page.
Display: LCD; 0.39" (10 mm) digits (only in LPM).
Enclosure Rating: IP10 (NEMA 1).
Weight: 0.80 lb (380 g).
Agency Approvals: CE.
