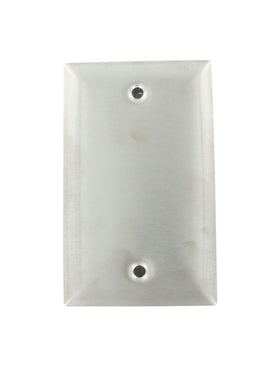

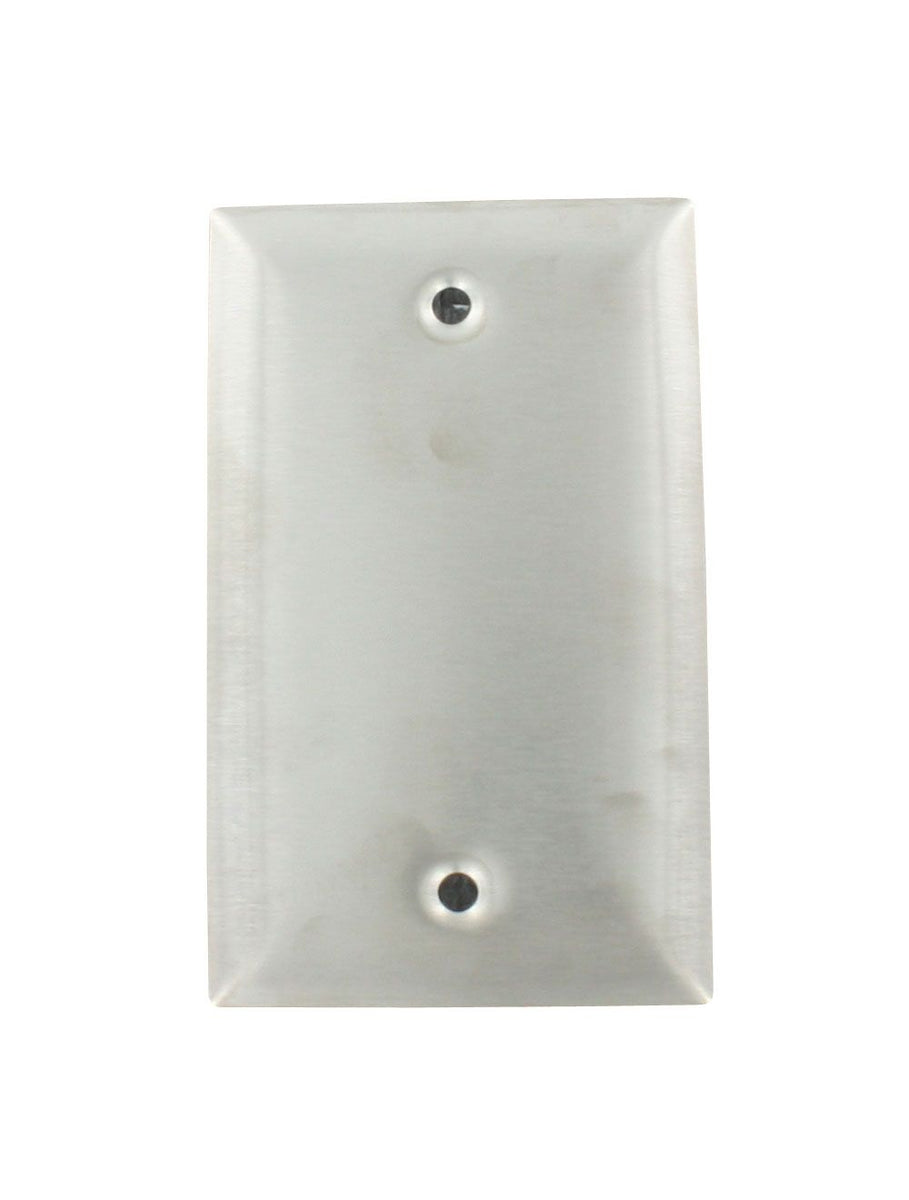

TE-WSS-F | SS wall plate | 20K Ω Thermistor. | Dwyer

SS wall plate, 20K Ω Thermistor.

Brand: DwyerSKU: TE-WSS-F

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-WSS-F

Jump to: Overview & Specifications Reviews

Overview Details for TE-WSS-F

See catalog product page for full listing

SS wall plate | 20K Ω Thermistor.

Series TE-WSS Stainless Steel Wall Plate Temperature Sensor

Screw Terminal Connection, Suitable for Wash Down Applications

The Series TE-WSS Stainless Steel Wall Plate Temperature Sensor measures the ambient air temperature in classrooms and industrial environments. By having a flush mount design, the temperature sensor can withstand a wash down. A foam gasket prevents ambient temperature from behind the wall plate from skewing the temperature measurements. The discrete stainless steel wall plate sensor also hides the sensor to prevent tampering. Each sensor comes with a terminal block and two mounting screws for quick installation.

Note: For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

TE-WND, no longer available.

Product Applications

Building automation
Room temperature monitoring
Wash down environments

SS flush plate design
Standard single gang junction box cover plate mounting

Specifications

Series: TE-WSS Stainless Steel Wall Plate Temperature Sensor
Category/Type: Temperature
Type: Sensors
Series: TE-WSS Stainless Steel Wall Plate Temperature Sensor
Accuracy: Thermistor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD: DIN Class B ±0.3°C @ 0°C.
Temperature LImits: Operating -40 to 140°F (-40 to 60°C).
Sensor Curves: See Resistance vs. Temperature Table (page 299).
Housing Material: 304SS.
Weight: 2.3 oz (65 g).
: Resistance Curves for TE Series.
