TE-WSS-B | SS wall plate | 10K Ω Type II Thermistor. | Dwyer

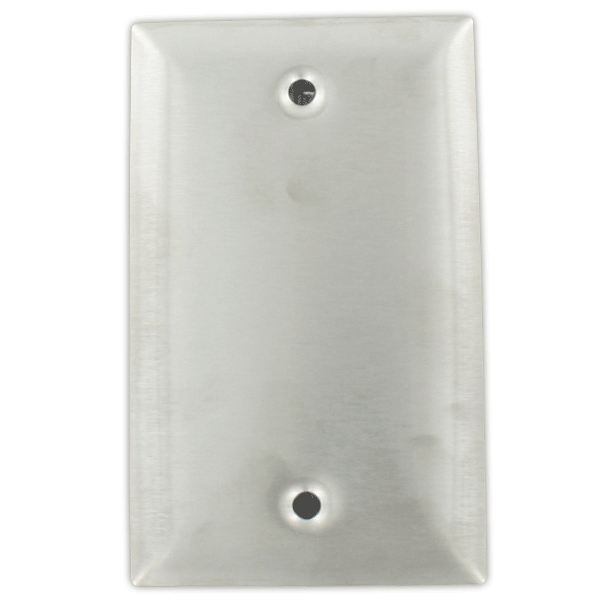

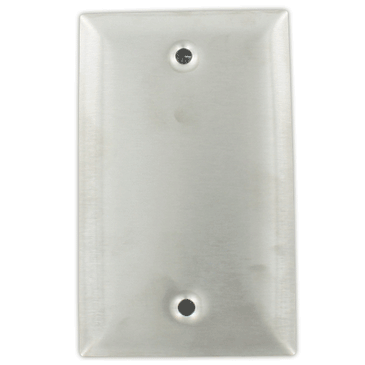

SS wall plate, 10K Ω Type II Thermistor.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-WSS-B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TE-WSS-B Documents

TE-WSS TE-WND Resistance vs. Temperature Table More Info

Overview

Details for TE-WSS-B

See catalog product page for full listing

SS wall plate | 10K Ω Type II Thermistor.

Series TE-WSS Stainless Steel Wall Plate Temperature Sensor

Screw Terminal Connection, Suitable for Wash Down Applications

The Series TE-WSS Stainless Steel Wall Plate Temperature Sensor measures the ambient air temperature in classrooms and industrial environments. By having a flush mount design, the temperature sensor can withstand a wash down. A foam gasket prevents ambient temperature from behind the wall plate from skewing the temperature measurements. The discrete stainless steel wall plate sensor also hides the sensor to prevent tampering. Each sensor comes with a terminal block and two mounting screws for quick installation.

Note: For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

TE-WND, no longer available.

Product Applications

Building automation
Room temperature monitoring
Wash down environments

SS flush plate design
Standard single gang junction box cover plate mounting

Specifications

Series: TE-WSS Stainless Steel Wall Plate Temperature Sensor
Accuracy: Thermistor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD: DIN Class B ±0.3°C @ 0°C.
Temperature LImits: Operating -40 to 140°F (-40 to 60°C).
Sensor Curves: See Resistance vs. Temperature Table (page 299).
Housing Material: 304SS.
Weight: 2.3 oz (65 g).
: Resistance Curves for TE Series.
