TE-WSS-A | SS wall plate | 10K Ω Type III Thermistor. | Dwyer
SS wall plate, 10K Ω Type III Thermistor.
Documents and manuals
Dwyer TE-WSS-A Documents
Overview
Details for TE-WSS-A
SS wall plate | 10K Ω Type III Thermistor.

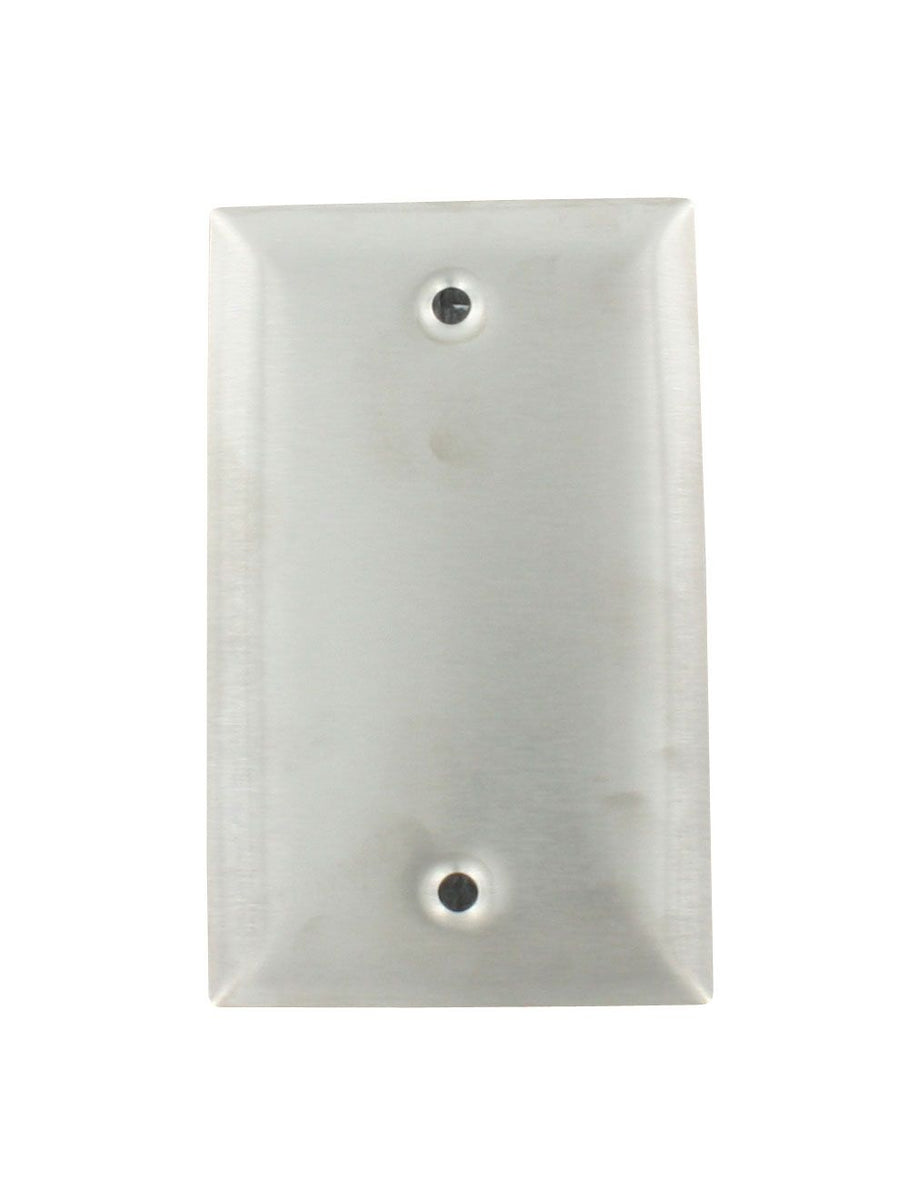

Series TE-WSS Stainless Steel Wall Plate Temperature Sensor
The Series TE-WSS Stainless Steel Wall Plate Temperature Sensor measures the ambient air temperature in classrooms and industrial environments. By having a flush mount design, the temperature sensor can withstand a wash down. A foam gasket prevents ambient temperature from behind the wall plate from skewing the temperature measurements. The discrete stainless steel wall plate sensor also hides the sensor to prevent tampering. Each sensor comes with a terminal block and two mounting screws for quick installation.
Note: For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.
TE-WND, no longer available.
Product Applications
- Building automation
- Room temperature monitoring
- Wash down environments
- SS flush plate design
- Standard single gang junction box cover plate mounting
Specifications
- Series
- TE-WSS Stainless Steel Wall Plate Temperature Sensor
- Category/Type
- Temperature
- Type
- Sensors
- Series
- TE-WSS Stainless Steel Wall Plate Temperature Sensor
- Accuracy
- Thermistor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD: DIN Class B ±0.3°C @ 0°C.
- Temperature LImits
- Operating -40 to 140°F (-40 to 60°C).
- Sensor Curves
- See Resistance vs. Temperature Table (page 299).
- Housing Material
- 304SS.
- Weight
- 2.3 oz (65 g).
- Resistance Curves for TE Series.
