TE-TNS-N254N-14 | 2-1/2" SS Thermowell with 1/4" NPT internal and 1/2" external thread. | Dwyer

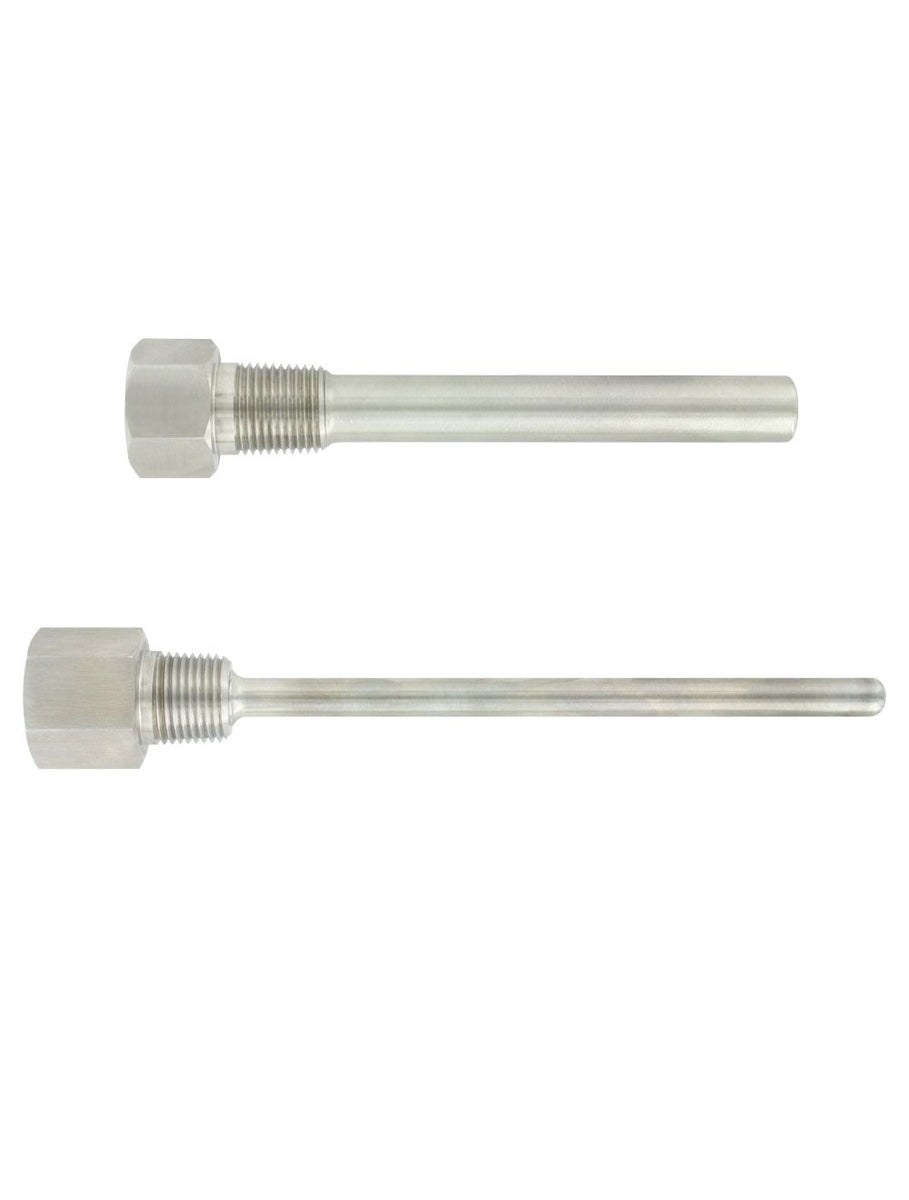

2-1/2" SS Thermowell with 1/4" NPT internal and 1/2" external thread.
Documents and manuals
Dwyer TE-TNS-N254N-14 Documents
Overview
Details for TE-TNS-N254N-14
2-1/2" SS Thermowell with 1/4" NPT internal and 1/2" external thread.
Series TE Duct and Immersion Building Automation Temperature Sensor main
The Series TE Duct and Immersion Temperature Sensor can be used to monitor air or water temperature throughout a building management system or an air handler unit. Flanged duct sensors monitor the supply or return air and provide a thermistor or RTD output to the digital controller. Immersion sensors which are supplied with compression fittings are typically used to monitor the hot or chilled water lines throughout a building. Thermowells are recommended, but not required on the immersion sensors.
For variable air volume applications, the Series TE can be configured to have 8' plenum rated cable with flying leads. Standard units come with 4" leads with an integral terminal block to eliminate carrying extra wire nuts. For housing models, multiple knockouts provide easy conduit access to any side of the housing. The 1/4 turn lid comes with a chain to prevent it from being lost during installation.
For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.
Product Applications
- Building automation
- VAV temperature sensing
- Chiller or boiler loops
- AHU monitoring
- Easy to mount external tab housing and flange options for duct applications
- 1/4 turn housing cover with chain to prevent dropping
- Multiple conduit knockouts for easy installation positioning
- 8´ plenum rated cable option
- Terminal connector eliminates need for wire nuts
Specifications
- Series
- TE Duct and Immersion Building Automation Temperature Sensor main
- Category/Type
- Temperature
- Type
- Sensors
- Series
- TE Duct and Immersion Building Automation Temperature Sensor main
- Accuracy
- Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor DIN Class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
- Temperature Limits
- Operating: -40 to 302°F (-40 to 150°C).
- Sensor Curves
- See Resistance vs. Temperature Table.
- Cable Rating
- Plenum option includes UL listed plenum cable.
- Housing Material
- Meets UL; 94 V-O polycarbonate plastic.
- Housing Rating
- NEMA 4X (IP66) (DFW; IBW only).
- Weight
- 5.3 oz (150.3 g).
- Agency Approvals
- Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
