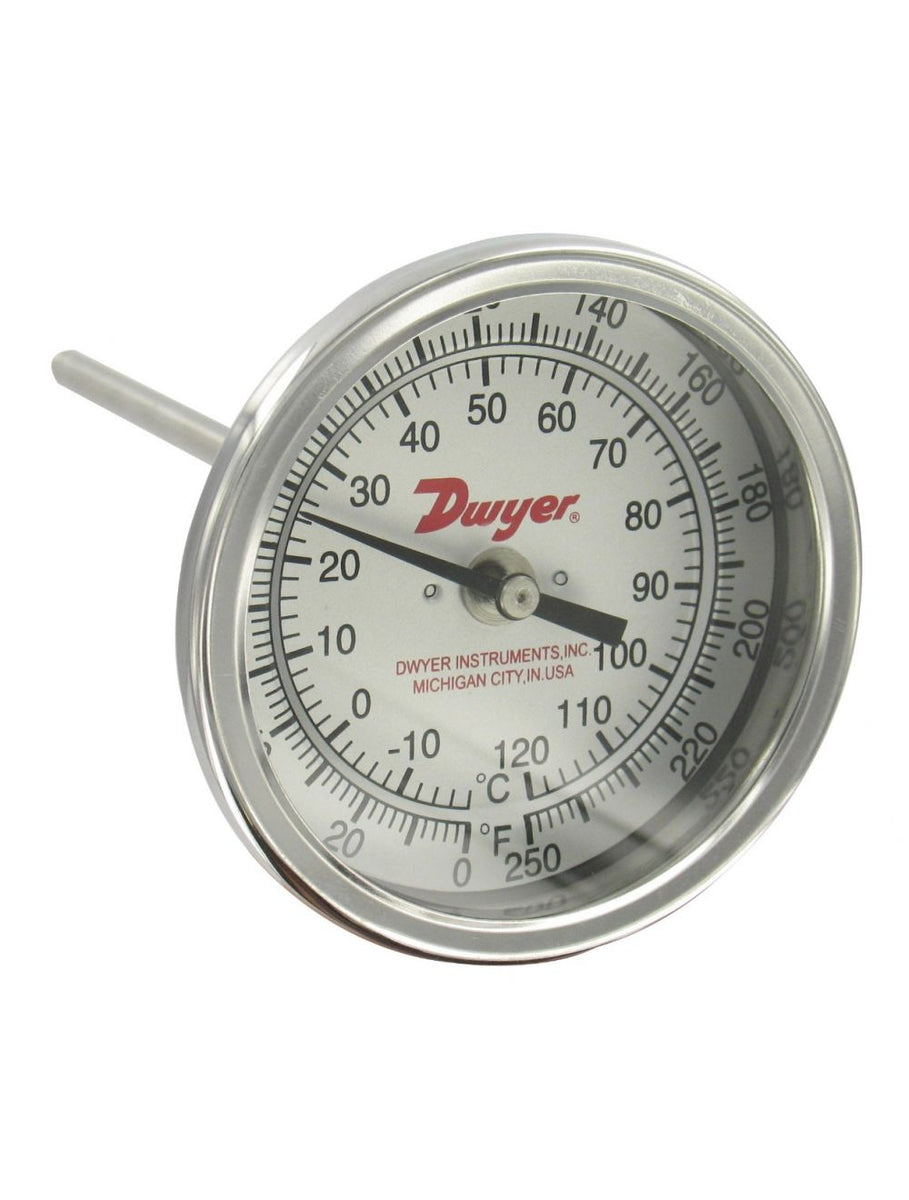

BTA5605D | Bimetal thermometer | 5" dial | 6" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div. | Dwyer
Bimetal thermometer, 5" dial, 6" stem length, range 0/250°F (-20/120°C), 2°F (2°C) div.
Documents and manuals
Dwyer BTA5605D Documents
Overview
Details for BTA5605D
Bimetal thermometer | 5" dial | 6" stem length | range 0/250°F (-20/120°C) | 2°F (2°C) div.
SERIES BT BIMETAL THERMOMETER
The Series BT Bimetal Thermometers offer accurate, reliable service even in the toughest environments. These corrosion resistant units are constructed from stainless steel and are hermetically sealed to prevent crystal fogging. The bimetal element directly drives pointer, eliminating gears and linkage. An external reset screw allows field calibration and easy-to-read aluminum dial minimizes parallax error. Choose back connection, lower connection or adjustable angle for easy viewing and installation. Adjustable models can be rotated a full 360° and tilted over a 180° arc. NOTE: When using in pressurized applications, use a suitable thermowell.
Product Applications
- Chiller or boiler water temperature monitoring
- Treatment plant temperature monitoring
- Hermetically sealed
- Adjustable dial position models
Specifications
- Series
- BT BIMETAL THERMOMETER
- Category/Type
- Temperature
- Type
- Thermometers
- Series
- BT BIMETAL THERMOMETER
- Wetted Materials
- 304 SS.
- Housing Material
- Series 300 SS.
- Lens
- Glass.
- Accuracy
- ±1% FS.
- Response Time
- ≤40 s.
- Temperature Limits
- Head: 200°F (93°C); Stem: Not to exceed 50% over-range or 1000°F (538°C) or 800°F (427°C) continuously.
- Process Connection
- 1/4" NPT on 2" dial size; 1/2" NPT on 3" or 5" dial size.
- Stem Diameter
- 1/4" O.D.
- Immersion Depth
- Minimum 2" in liquids; 4" in gas.
