TE-TNS-N095N-12 | Thermowell | 316SS | .26" bore | 1/2" NPT internal connection | 3/4" NPT external connection | 9" length | Dwyer
Thermowell, 316SS, .26" bore, 1/2" NPT internal connection, 3/4" NPT external connection, 9" length
Documents and manuals
Dwyer TE-TNS-N095N-12 Documents
Overview
Details for TE-TNS-N095N-12
Thermowell | 316SS | .26" bore | 1/2" NPT internal connection | 3/4" NPT external connection | 9" length

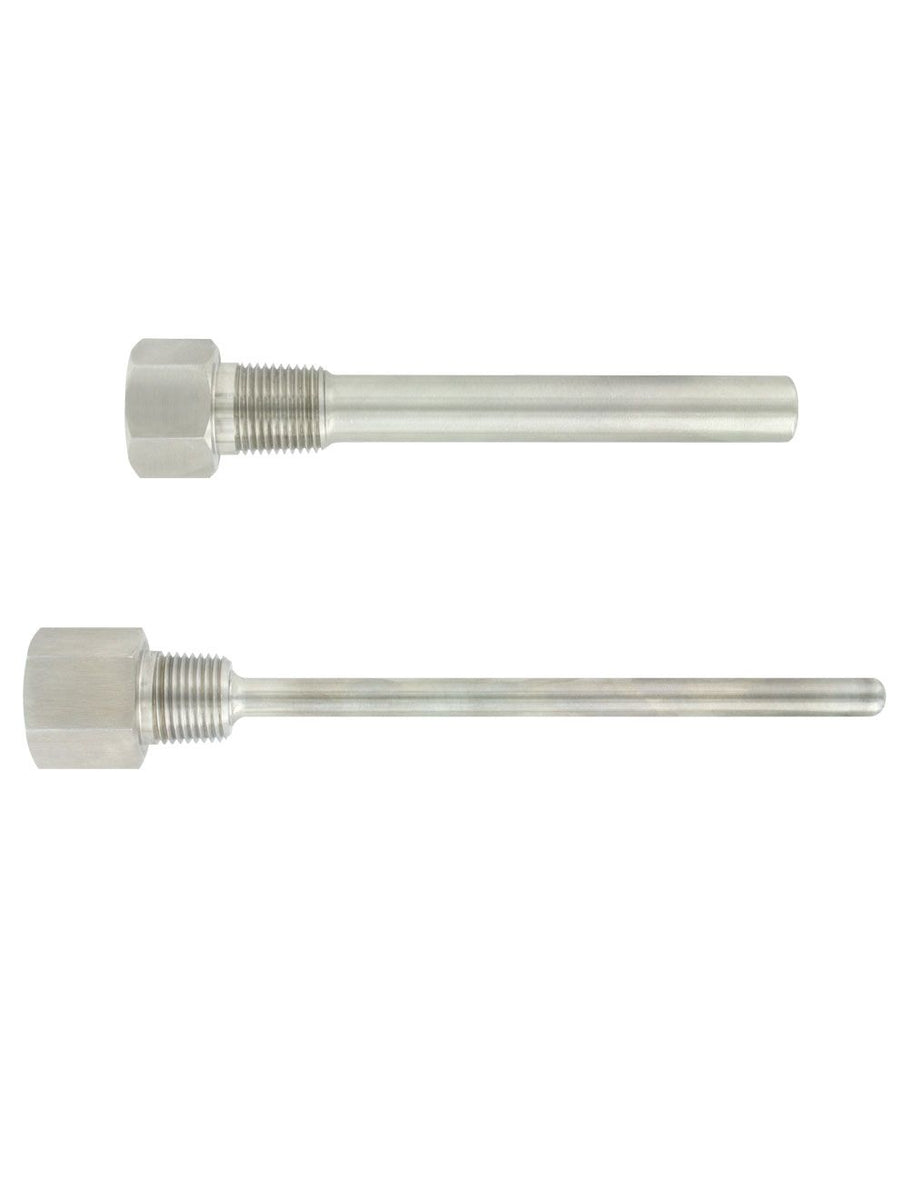

Series TE-TNS Thermowells main
The Series TE-TNS Stainless Steel Thermowells are used to separate the instrumentfrom the surrounding media. When used with the Series TE and TE-I ImmersionTemperature Sensors, further protection is offered from aggressive media, highpressures, and flow rates while allowing for quick and easy installation of temperaturesensors without having to drain process media.
Thermowells are offered in both 304 and 316 stainless steel allowing for superiorcorrosion resistance. Fabricated, or welded, thermowells are constructed from atube that is closed at the tip by a welded solid tip. Solid-machined thermowells aremanufactured from barstock.
Product Applications
- Building automation
- Chiller or Boiler Loops
- Chemical industry or process technology
- Configurable materials and sizes
- Fabricated (welded) or machined construction
- 1/2" or 3/4" NPT process connections
Specifications
- Series
- TE-TNS Thermowells main
- Category/Type
- Temperature
- Type
- Sensors
- Series
- TE-TNS Thermowells main
- Maximum Pressure
- Fabricated: 140 psi; Machined: 304 SS: 3700 psi; 316SS: 5500 psi.
- Maximum Temperature
- Fabricated: 1000°F (538°C); Machined: 1200°F (648°C).
- Construction
- Fabricated (welded) or machined model specific.
