TE-SNW-E | Strap on surface mounted temperature sensor | Pt1000 Ω RTD | Dwyer

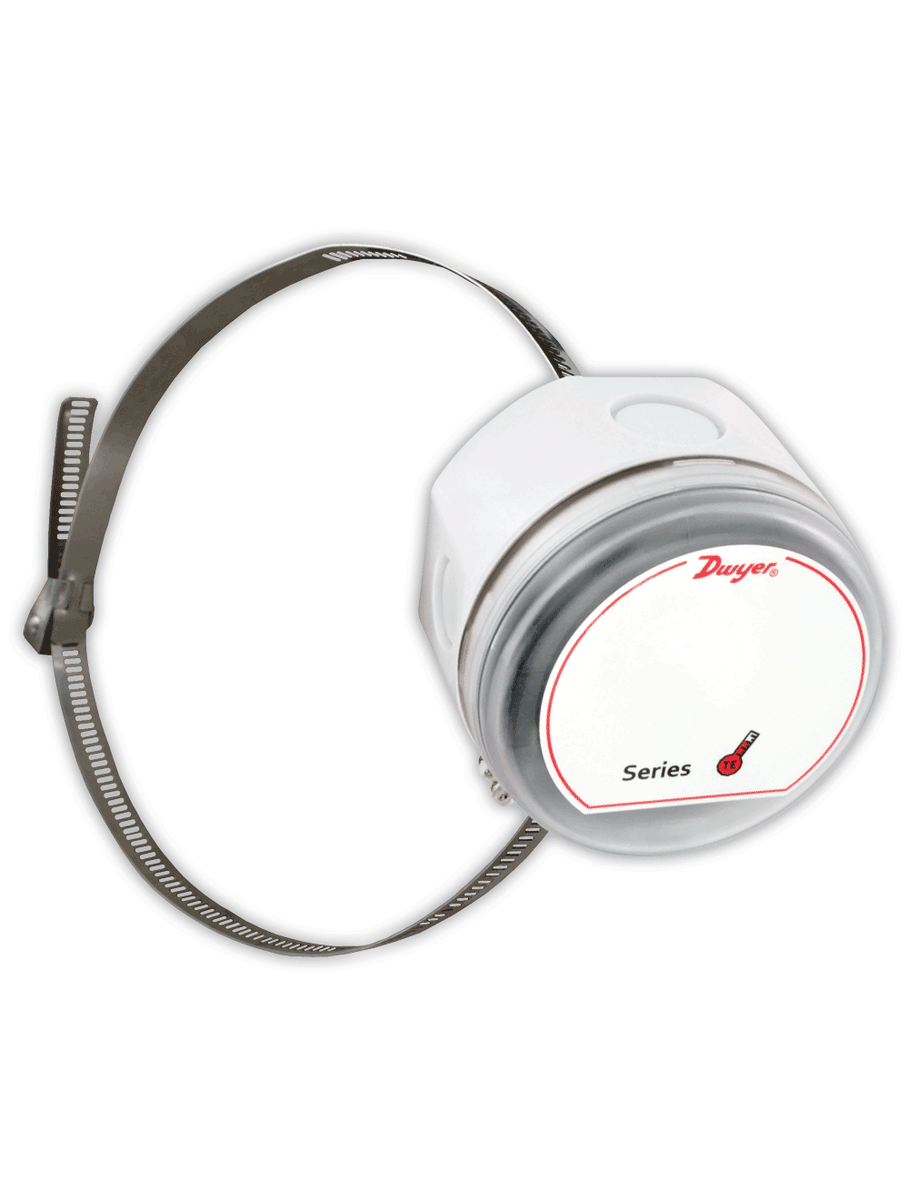

Strap on surface mounted temperature sensor, Pt1000 Ω RTD

Brand: DwyerSKU: TE-SNW-E

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TE-SNW-E

Jump to: Overview & Specifications Reviews

Overview Details for TE-SNW-E

See catalog product page for full listing

Strap on surface mounted temperature sensor | Pt1000 Ω RTD

Series TE-SNW Weather Resistant Surface Temperature Sensors

Strap On Design, Twist Off Cover, 2 to 6" Pipe Sizes

The Series TE-SNW Weather Resistant Surface Temperature Sensors non-intrusively measures theprocess temperature in hot and cold water loops in buildings. An adjustable metal strapcan tightly fit around 2 through 6" pipe sizes, allowing the surface area of the copper plateon the sensor to make good contact with the pipe surface. In order to work with mostcommon building controllers, the output of the sensor can be chosen from 6 different RTDand Thermistor curves. Additional features include a quarter turn twist off cap that ischained to the housing to prevent it from getting lost, and multiple knockout locations andsizes to reduce installation time.

Product Applications

Heating or cooling loop line temperature monitoring
HVAC systems

Easy to mount external tab housing
1/4 turn housing cover with chain
Multiple conduit knockouts for easy installation positioning
Non-intrusive temperature measurement of 2 to 6" pipes

Specifications

Series: TE-SNW Weather Resistant Surface Temperature Sensors
Category/Type: Temperature
Type: Sensors
Series: TE-SNW Weather Resistant Surface Temperature Sensors
Accuracy: >Thermistor temperature sensor: ±0.22°C @ 25°C (±-0.4°F @ 77°F);RTD temperature sensor: DIN Class A ±0.15°C @ 0°C (±0.28°F @ 32°F).
Temperature Limits: Operating: -32 to 240°F (-35.5 to 115.5°C).
Sensor Curves: See Resistance vs. Temperature Table.
Housing Material: Meets UL 94 V-0 polycarbonate plastic; NEMA 3R.
Weight: 7 oz (198 g).
