TE-OND-A | Outside air temperature sensor | 10K Ω Type III thermistor | Dwyer
Outside air temperature sensor, 10K Ω Type III thermistor
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TE-OND-A
Documents and manuals
Dwyer TE-OND-A Documents
Overview
Details for TE-OND-A
See catalog product page for full listing
Outside air temperature sensor | 10K Ω Type III thermistor

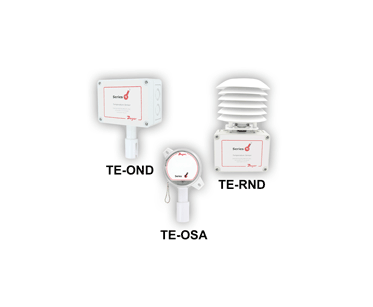

Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
Protection Against Radiated Heat, Weatherproof Housing
The Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors are offered in two different configurations to increase measurement accuracy by reducing radiated heat effects. For applications where the north side of the building is accessible, the TE-OND/TE-OSA can be used to protect against low levels of radiated heat. If the sensor must be mounted in direct sunlight or a more precise measurement is required, our six plate radiation shield mounts over the temperature probe. The TE-RND radiation shield models can be surface or pipe mounted. All models include removeable terminal blocks to simplify wiring.
Specifications
- Series
- TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
- Category/Type
- Temperature
- Type
- Sensors
- Series
- TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors
- Accuracy
- Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F);RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
- Temperature Limits
- Operating: -40 to 302°F (-40 to 150°C).
- Sensor Curves
- See Resistance vs. Temperature Table.
- Housing Material
- Polycarbonate.
- Enclosure Rating
- TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R(IP54).
- Weight
- 0.65 lb (295 g).
