TCS-4030 | Thermocouple temperature switch | type J/K/S Input | 12 VAC/VDC | °F. | Dwyer
Thermocouple temperature switch, type J/K/S Input, 12 VAC/VDC, °F.

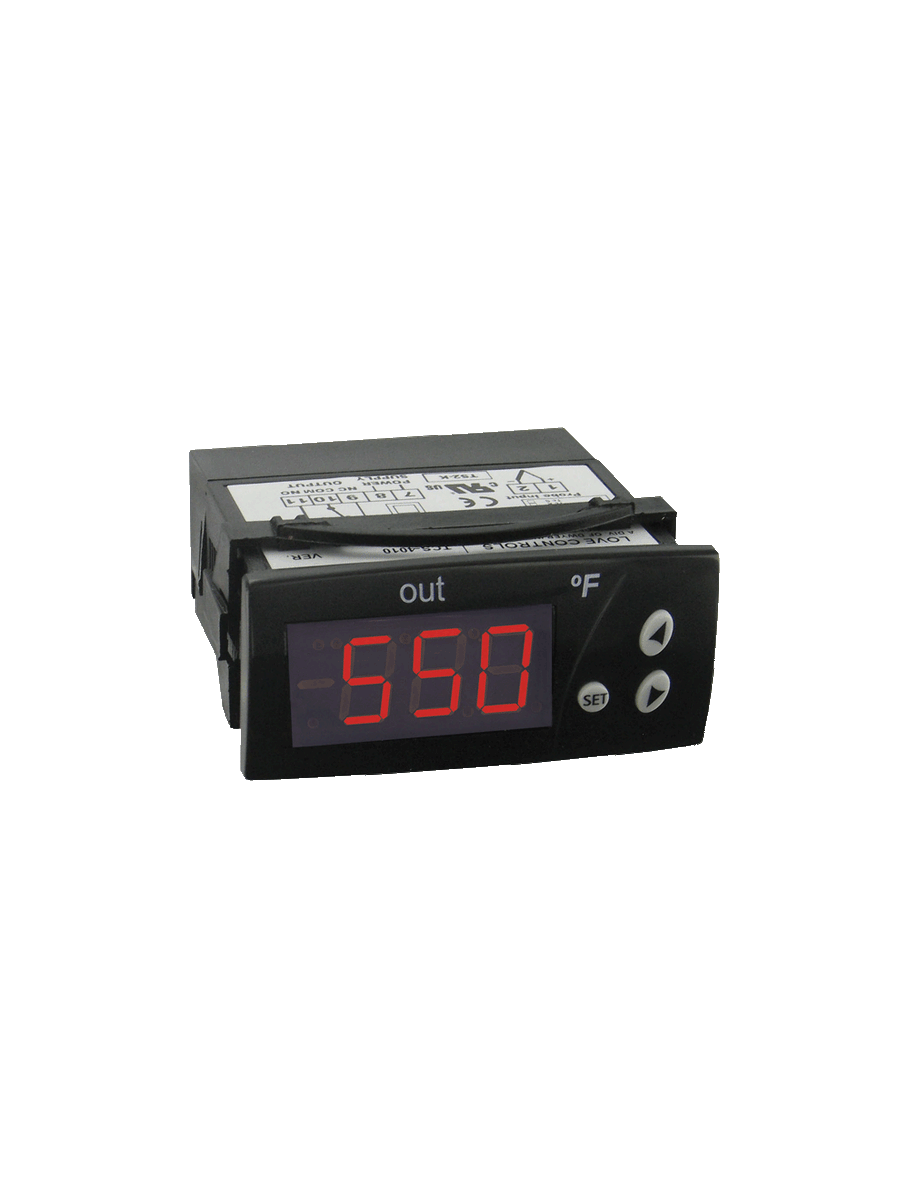

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TCS-4030
Documents and manuals
Dwyer TCS-4030 Documents
Overview
Details for TCS-4030
See catalog product page for full listing
Thermocouple temperature switch | type J/K/S Input | 12 VAC/VDC | °F.
SERIES TCS THERMOCOUPLE TEMPERATURE SWITCH
Heating and Cooling Control, 16 Amp Rating, Two Alarms
The Series TCS Thermocouple Temperature Switch monitors and controlstemperature while offering a wide temperature range, two selectable alarm sets, andan internal buzzer indicating alarm condition or error.
Product Applications
- Food service equipment
- Industrial process control
- Heating or cooling modes
- Internal alarm buzzer
- Configuration key to quickly load parameters from one unit to another
Specifications
- Series
- TCS THERMOCOUPLE TEMPERATURE SWITCH
- Category/Type
- Temperature
- Type
- Switches
- Series
- TCS THERMOCOUPLE TEMPERATURE SWITCH
- Probe Range
- 32 to 999°F (0 to700°C) for Type J thermocouple; 32 to999°F (0 to 999°C) for Type K or Sthermocouples.
- Input
- Type J or K thermocouple.
- Output
- SPDT relay rated 16 A @ 240VAC resistive.
- Horsepower Rating (HP)
- 1 HP.
- Control Type
- ON/OFF.
- Power Requirements
- 115 VAC; 230 VAC; 12 VAC/VDC; or 24 VAC/VDC(depending on model).
- Accuracy
- ±1% FS.
- Display
- 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
- Resolution
- 1°.
- Memory Backup
- Nonvolatile memory.
- Temperature Limits
- Ambient: 32 to 158°F (0 to 70°C); Storage: -4 to 176°F (-20 to 80°C).
- Weight
- 2.3 oz (65 g).
- Front Panel Rating
- IP64.
- Agency Approvals
- CE; cURus.
