Universal head mount temperature transmitter

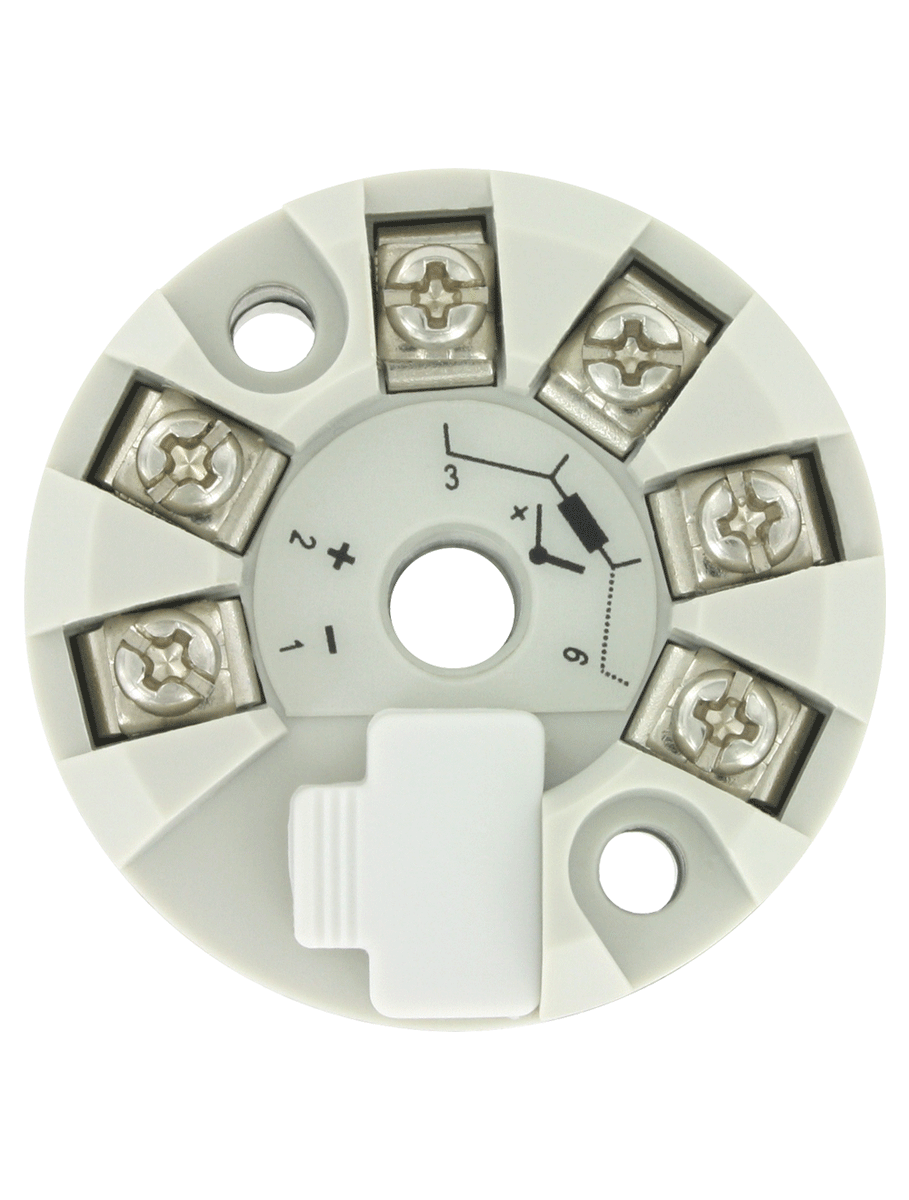

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TBU-00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TBU-00 Documents

Instruction Manual Model TBU-00 Catalog Page TBU-00 More Info

Overview

Details for TBU-00

See catalog product page for full listing

Universal head mount temperature transmitter

Model TBU-00 Temperature Transmitter

Field Selectable, Universal Input, In-Head Mounting

The Model TBU-00 Temperature Transmitter is a high precision temperature transmitter designed to easily mount in most temperature sensor instrument enclosures. The universal input reduces inventory while the micro-USB port facilitates easy configuration, and calibration in the lab or in the field. The versatile TBU model allows for selection and configuration of input type, measurement range, and calibration. The output can be set as either direct 4 to 20 mA, or reverse 20 to 4 mA, through easy to use configuration software.

Product Applications

Process applications where a 4 to 20 mA signal is required
Food processing equipment
Boiler equipment
Refrigeration equipment

Configurable measurement range
Standard temperature sensor head enclosure mounting
Pt100 connection for 2, 3, or 4 wires

Specifications

Input: Thermocouples J; K; R; S; T; N; E; and B; 2; 3; or 4 wire Pt100 RTD; 2 or 3wire Pt1000 RTD; 2 wire NTC thermistor; or 0 to 50 mV voltage.
Output: Linearized 4 to 20 mA; 2 wire or 20 to 4 mA loop powered.
Transmitter Type: 2; 3; or 4 wire.
Temperature Limits: -40°F to 185°F (-40 to 85°C).
Power Requirements: 10 to 35 VDC.
Accuracy: See catalog page.
Temperature Drift: < ±0.16% / 25°C.
Response Time: 1.6 s; typical.
Weight: 1.4 oz (40 g).
Agency Approvals: CE.
: Note: Factory set to Pt100 Ω RTD; 0 to 100°C; direct acting.
