Documents: SVE06WP61

Instruction Manual Series SVE Catalog Page More Info

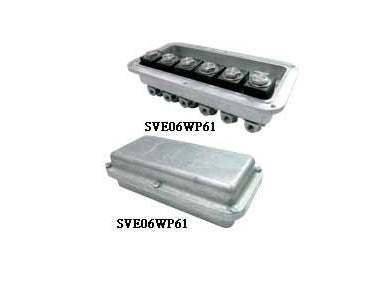

SVE06WP61 | Solenoid valve enclosure | 6 solenoids | weatherproof enclosure | 110 VAC. | Dwyer

Solenoid valve enclosure, 6 solenoids, weatherproof enclosure, 110 VAC.

Brand: DwyerSKU: SVE06WP61

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SVE06WP61

Jump to: Overview & Specifications Reviews

Overview Details for SVE06WP61

See catalog product page for full listing

Solenoid valve enclosure | 6 solenoids | weatherproof enclosure | 110 VAC.

Series SVE Solenoid Valve Enclosures

For the Series RSV Remote Solenoid Valves

The Series SVE Solenoid Valve Enclosures are multi-valve enclosures for the RSV pilot valve. The SVE offers a convenient weatherproof enclosure package with all solenoids pre-wired to a terminal block. Enclosures are available in 6 or 12 valve size with choice of pilot valve voltage.

Product Applications

For use with RSV only, compatible gases

Weatherproof enclosure
Can order pre-wired to terminal block
Available in 6 or 12 valve size

Specifications

Series: SVE Solenoid Valve Enclosures
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SVE Solenoid Valve Enclosures
Service (for RSV): Compatible gases; filtered and oil free.
Wetted Materials (for RSV): Body: aluminum; Core and spring: 304 SS; Seals: NBR.
Pressure Limits (for RSV): Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F (-20 to 85°C).
Power Requirements (for RSV): 110 VAC; 220 VAC; or 24 VDC.
Power Consumption (for RSV): 12 W; inrush: 17 VA; holding: 14.5 VA.
Enclosure Rating: NEMA 4X (IP65).
Enclosure Material: Anodized aluminum with NBR gasket.
Electrical Connection: All RSV are pre-wired to a terminal strip.
Conduit Connection: 3/4" female NPT.
Mounting Orientation: Any position.
Pneumatic Tube Length: Maximum of 9.8 ft (3 m).
