Solar panel kit.

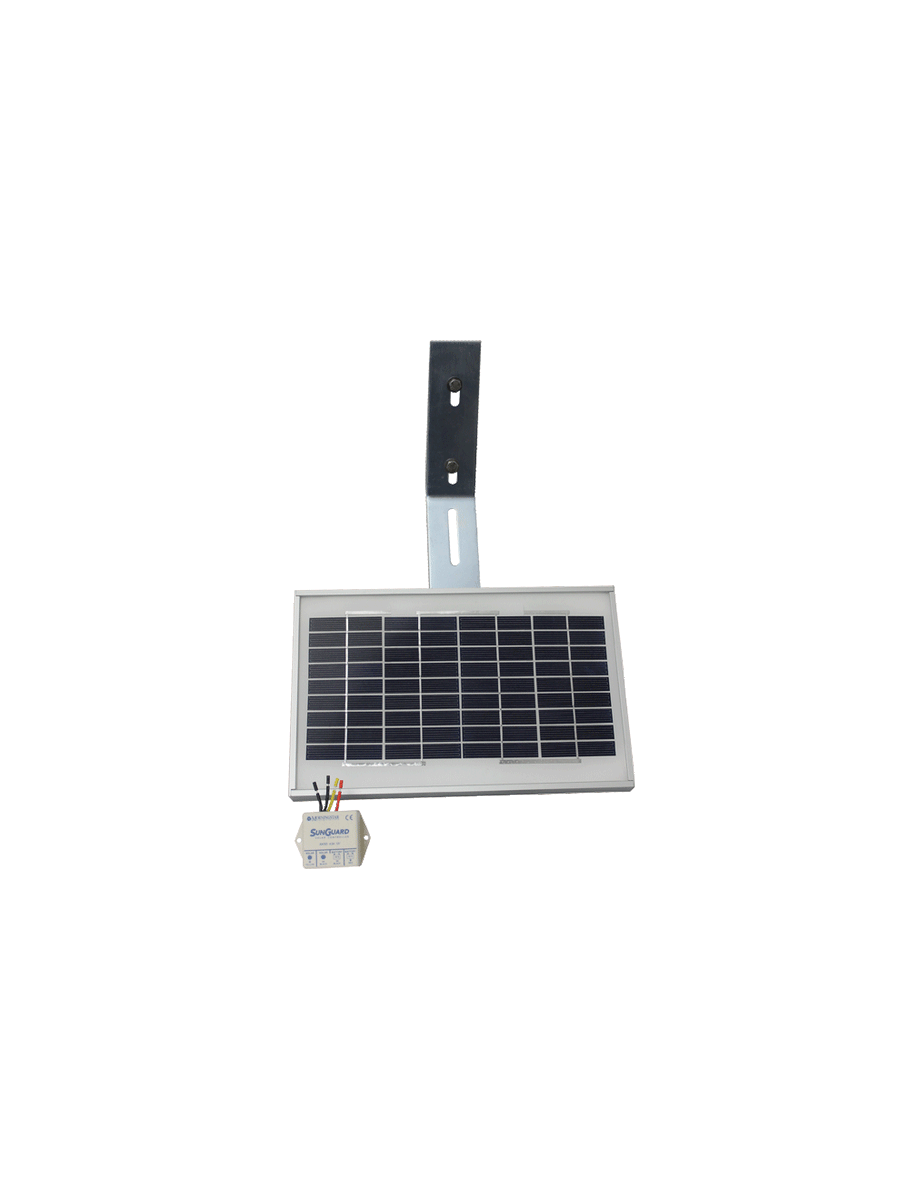

Model SPK Solar Panel Kit

Reliable 5 Watt Solar Panel for Remote Applications or Back-Up Power

The Model SPK Solar Panel makes it possible to use Dwyer flowmeters in remoteapplications where a reliable source of electricity is not available or practical. The SPK isintended for use with a standard 12V, 22 to 33 amp-hour sealed lead acid battery (notincluded). It comes standard with a charge controller and corrossion-resistant mountinghardware. The SPK can also be used to provide up to a 40-day back-up power supply forperiods of darkness.

Product Applications

Remote metering applications where electricity is unavailable.
• Back-up power supply for uninterrupted operation.

Specifications

>Temperature Limits: -40 to 158°F (-40 to 70°C).Output: 17 V @ 290 mA.Change Controller: High efficiency PWM regulator with temperaturecompensation and built-in lightning protection.Mounting: Bracket; band clamps and mounting hardware for 1-1/2 to 2" verticalpipe included.Weight: 4 lb (1814 g).
