SN-5E | 24 VDC | 5/2 | double acting solenoid valve | Dwyer
24 VDC, 5/2, double acting solenoid valve

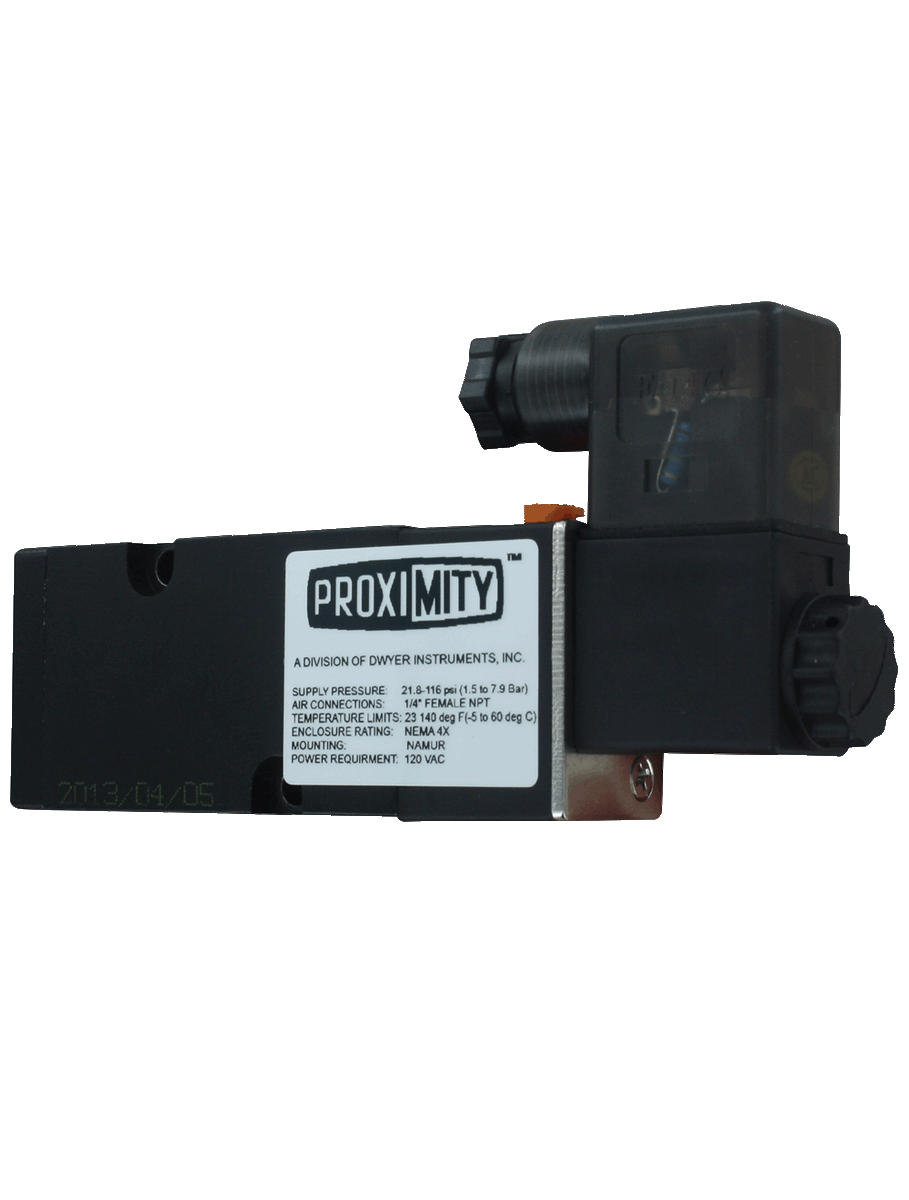

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SN-5E
Documents and manuals
Dwyer SN-5E Documents
Overview
Details for SN-5E
See catalog product page for full listing
24 VDC | 5/2 | double acting solenoid valve
Series SN NAMUR Mount Solenoid Valve
Manual Override, 100% Duty Rating
The Series SN Solenoid Valves are designed to easily mount directly to pneumatic valve actuators reducing the need for tubing, fittings or brackets, thereby reducing assembly cost. The SN solenoid comes with nitrile o-rings and offers a manual override as a standard feature. The 3/2 solenoids are designed for spring return actuators and 5/2 solenoids are designed to be used with double acting actuators. The SN series is available in a variety of voltages for any application.
Product Applications
- Direct mount to pneumatic actuators
- NAMUR mount means the solenoid can be mounted directly to valve actuators.
- Designed for double acting or spring return actuators.
- 100% continuous duty rating.
- Manual override.
Specifications
- Series
- SN NAMUR Mount Solenoid Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Solenoid
- Series
- SN NAMUR Mount Solenoid Valve
- Service
- Air only.
- Power Requirements
- 24 VAC; 110 VAC; 220 VAC; 12 VDC; or 24 VDC.
- Supply Pressure
- 22 to 116 psi (1.5 to 7.9 bar).
- Air Connections
- 1/4" female NPT.
- Temperature Limits
- 23 to 140°F (-5 to 60°C).
- Electrical Connection
- DIN 43650 form A.
- Enclosure Rating
- IP65.
- Mounting
- NAMUR.
- Standard Features
- Manual override.
- Weight
- 1.0 lb (.45 kg).
- Agency Approvals
- CE.
