Documents: SMV2-WM3

Series SMV2 Catalog Page Datasheet More Info

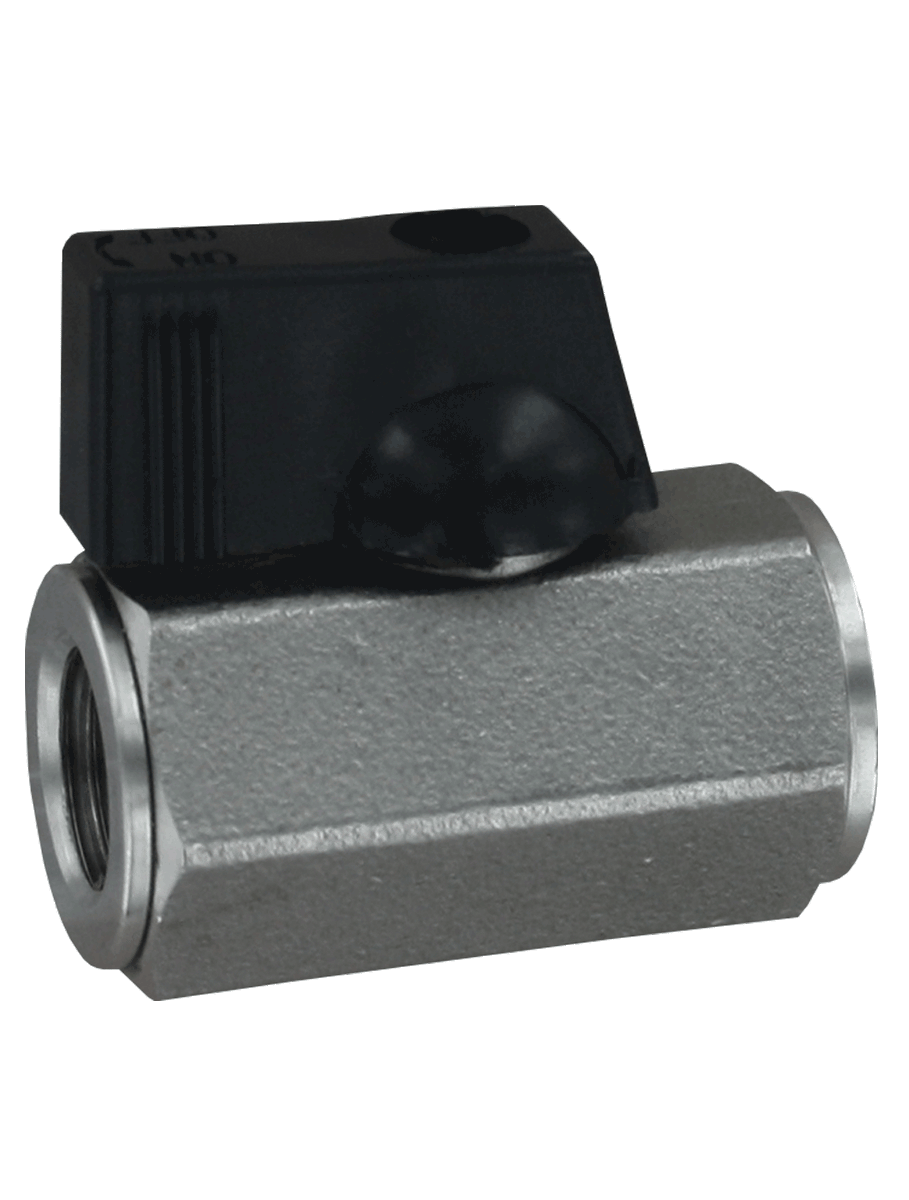

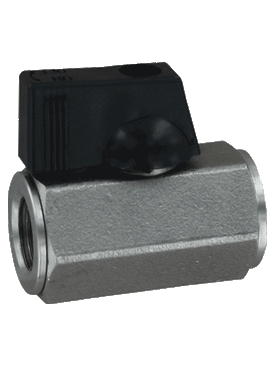

SMV2-WM3 | Mini stainless steel ball valve | 3/8" NPT | male x female | Dwyer

Mini stainless steel ball valve, 3/8" NPT, male x female

Brand: DwyerSKU: SMV2-WM3

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SMV2-WM3

Jump to: Overview & Specifications Reviews

Overview Details for SMV2-WM3

See catalog product page for full listing

Mini stainless steel ball valve | 3/8" NPT | male x female

Series SMV2 Mini Stainless Steel Ball Valve

Economical, Wide Chemical Compatibility, Compact

The Series SMV2 Mini Stainless Steel Ball Valve is ideal for small, confined spaces, where larger valves are unsuitable. The 316SS and PTFE wetted materials are excellent for applications with corrosive media. The handles are made of a rigid nylon for extended durability. Installation is made easy with a choice of FxF or MxF process connections. PTFE ball seats provide broad media compatibility and bubble tight shutoff.

Product Applications

Gas or liquid flow control
Ideal for small, confined spaces

High working pressure
Abrasion resistant
Easy to install
Economical
Wide chemical compatibility

Specifications

Series: SMV2 Mini Stainless Steel Ball Valve
Category/Type: Valves
Type: Valves
Valve Type: Ball
Series: SMV2 Mini Stainless Steel Ball Valve
Service: Gases and liquids compatible with wetted materials. Not rated for steam use.
End Connections: NPT; see model chart on catalog page.
Pressure Limits: 1/8 " to 3/8"; 1000 psi (68.9 bar) WOG; 1/2"; 800 psi (51.1 bar)WOG.
Temperature Limits: 212°F (100°C) maximum.
Wetted Materials: Valve Body: Cast 316 SS (CF8M); Valve Ball; Insert and Stem:316 SS; Ball Seat: PTFE.
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
