SMV2-WF1 | Mini stainless steel ball valve | 1/8" NPT | female x female | Dwyer
Mini stainless steel ball valve, 1/8" NPT, female x female

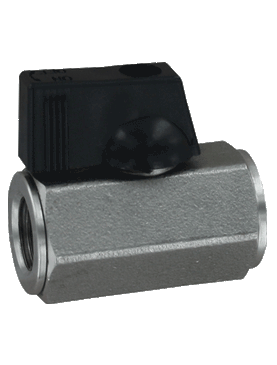

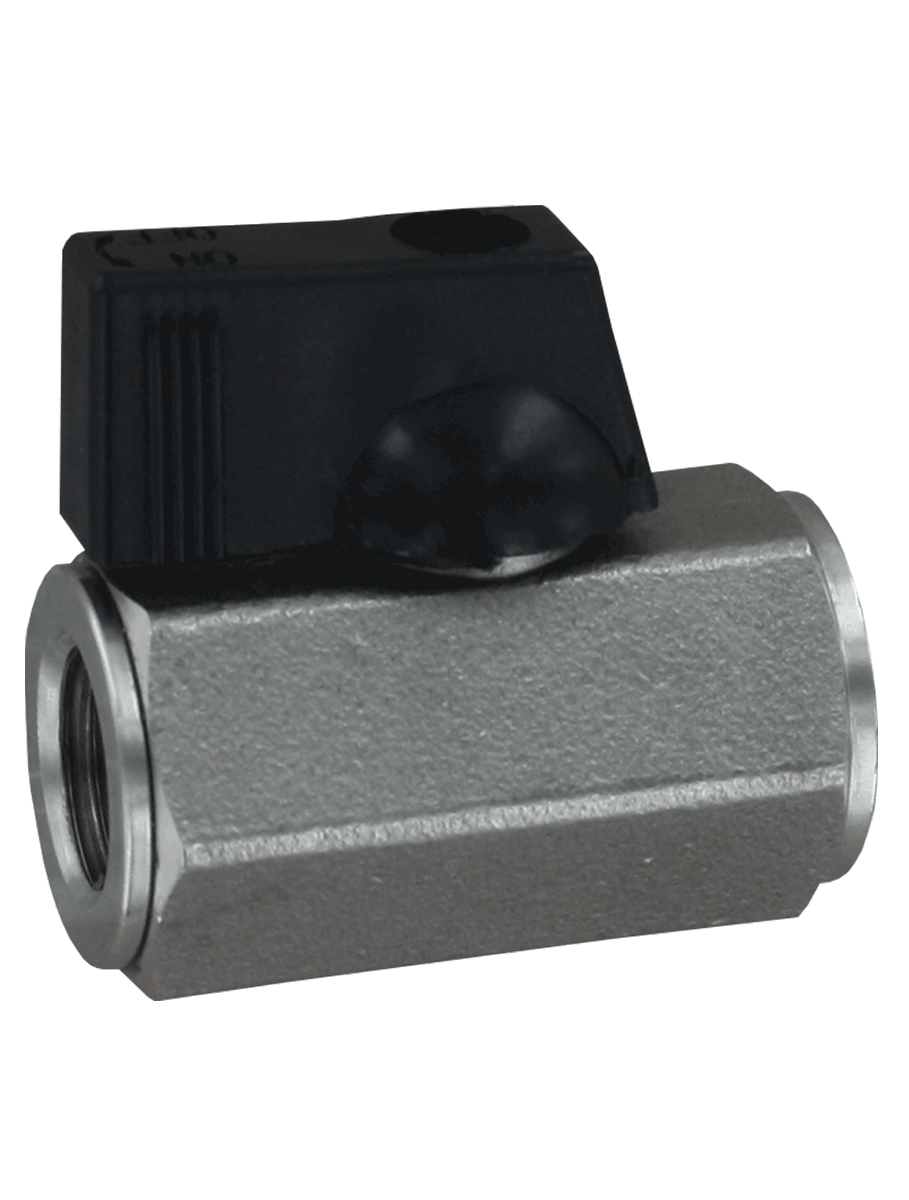

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SMV2-WF1
Documents and manuals
Dwyer SMV2-WF1 Documents
Overview
Details for SMV2-WF1
See catalog product page for full listing
Mini stainless steel ball valve | 1/8" NPT | female x female
Series SMV2 Mini Stainless Steel Ball Valve
Economical, Wide Chemical Compatibility, Compact
The Series SMV2 Mini Stainless Steel Ball Valve is ideal for small, confined spaces, where larger valves are unsuitable. The 316SS and PTFE wetted materials are excellent for applications with corrosive media. The handles are made of a rigid nylon for extended durability. Installation is made easy with a choice of FxF or MxF process connections. PTFE ball seats provide broad media compatibility and bubble tight shutoff.
Product Applications
- Gas or liquid flow control
- Ideal for small, confined spaces
- High working pressure
- Abrasion resistant
- Easy to install
- Economical
- Wide chemical compatibility
Specifications
- Series
- SMV2 Mini Stainless Steel Ball Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Ball
- Series
- SMV2 Mini Stainless Steel Ball Valve
- Service
- Gases and liquids compatible with wetted materials. Not rated for steam use.
- End Connections
- NPT; see model chart on catalog page.
- Pressure Limits
- 1/8 " to 3/8"; 1000 psi (68.9 bar) WOG; 1/2"; 800 psi (51.1 bar)WOG.
- Temperature Limits
- 212°F (100°C) maximum.
- Wetted Materials
- Valve Body: Cast 316 SS (CF8M); Valve Ball; Insert and Stem:316 SS; Ball Seat: PTFE.
- Agency Approvals
- Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
