SLD-ACY | Single channel leak detection relay | 470 to 10k ohm adjustable sensitivity. | Dwyer

Single channel leak detection relay, 470 to 10k ohm adjustable sensitivity.

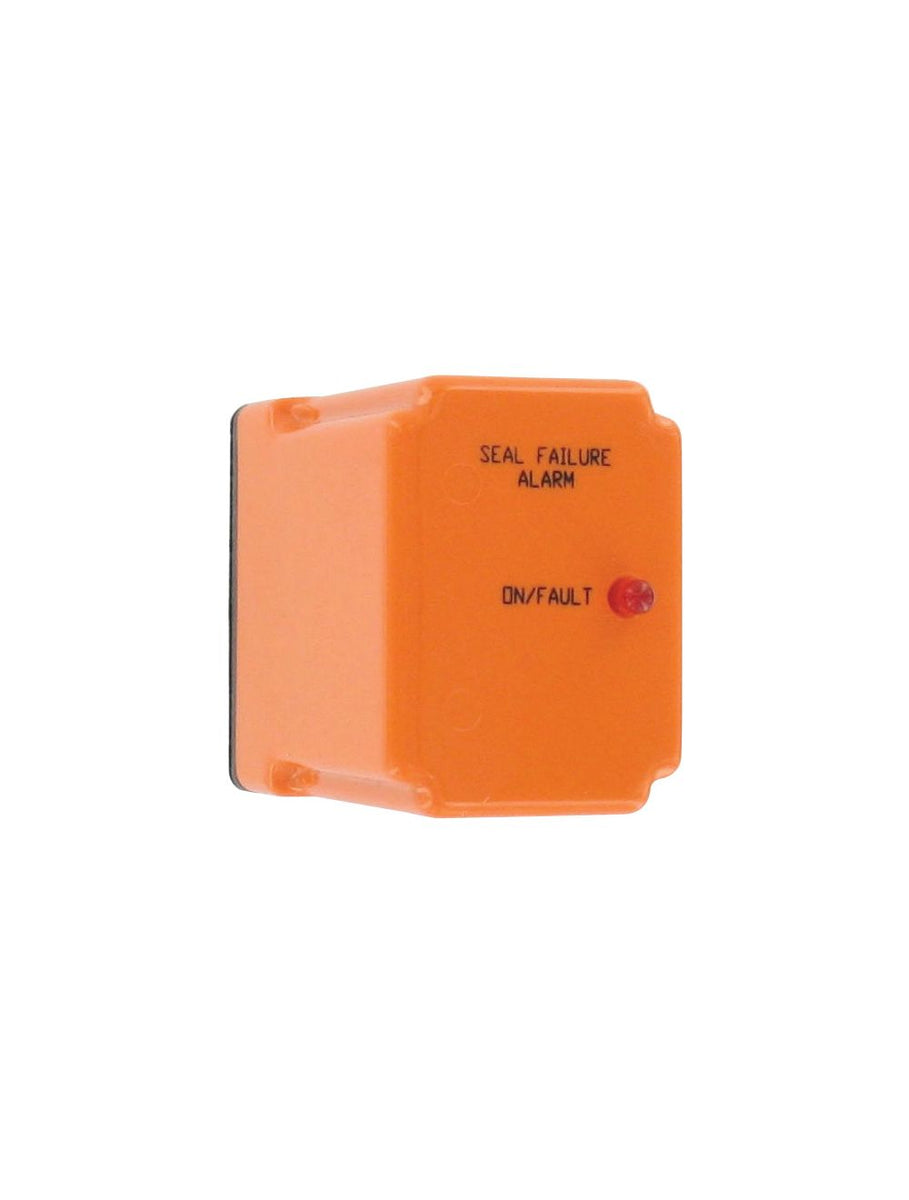

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SLD-ACY

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SLD-ACY Documents

SLD Series SLD Catalog Page More Info

Overview

Details for SLD-ACY

See catalog product page for full listing

Single channel leak detection relay | 470 to 10k ohm adjustable sensitivity.

Series SLD Single Channel Leak Detection Relay

Shaft Seal Leak Protection

Series SLD Single Channel Leak Detection Relay is used to monitor the shaft seal of a submersible pump to detect a leak before pump failure. A leak is detected by sensing the status of a float or conductivity switch installed in the seal cavity. When this resistance drops below the set sensitivity, the output relay energizes and the LED indicator illuminates. The SLD offers normally open and normally closed relay contacts to energize an alarm and de-energize the pump in the event of a leak. When the seal failure condition clears, the relay automatically resets.

Specifications

Series: SLD Single Channel Leak Detection Relay
Category/Type: Level
Type: Pump Controllers
Series: SLD Single Channel Leak Detection Relay
Power Requirement: 120 VAC; 50/60 Hz.
Power Consumption: 2 VA (approximate).
Isolation Voltage: 2500 V.
Temperature Limits: Operating: -4 to 131°F (-20 to 55°C); Storage: -40 to 185°F (-40 to 85°C).
Switch Type: DPDT.
Switch Voltage: 9 VDC.
Electrical Rating: 10 A @ 250 VAC resistive; 360 VA inductive.
Response Time: Energize: 15 ms (approximate); Release: 8 ms (approximate).
Indicators: Red LED illuminates when leak is detected.
Enclosure: Polycarbonate dust cover.
Mounting: 11-pin socket.
Weight: 8 oz (227 g).
Agency Approval: cUR; UR.
