2.5" SS Gage | 1/4" npt back connection | range 100 psi

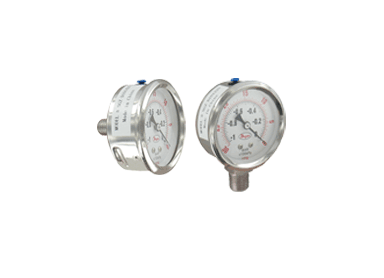

SERIES SGZ 2.5" INDUSTRIAL PRESSURE GAGE
The Series SGZ Industrial Pressure Gages have dual psi and bar (x100 kPa) scales with ±1.5% full-scaleaccuracy. The Series SGZ gages are designed with 304 SS housings and 316 SS wettedparts for excellent chemical compatibility. These gages cover a wide variety of ranges ineither bottom or back connection configurations. Series SGZ gages employ an easy-openbreather plug on top, which allows liquid filled units to breathe, relieving any built upinternal pressures. Plug easily pops open and does not need to be entirely removed or cutlike a typical gages' rubber plug grommet.
Calibration Option available under Accessories.
Product Applications
- Vacuums in pneumatic conveying lines
- Positive pressure in compressed air headers
- Corrosive ambient environments
- Stainless steel housing and wetted parts to resist ambient corrosion for longerservice life in harsh environments
- Higher accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
- Optional sliding pointer clearly mark to make visible critical ranges and high and lowpoints
- Liquid fillable gage with easy open breather plug provides smoother dampedmovement of pointer
- Back or bottom mounting and compact size provides for mounting with dimensionallimitations
Specifications
- Series
- SGZ 2.5" INDUSTRIAL PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- SGZ 2.5" INDUSTRIAL PRESSURE GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- 316 L SS Tube; 316 SS connector.
- Housing
- 304 SS.
- Lens
- Polycarbonate.
- Accuracy
- ±1.5% FS.
- Pressure Limit
- FS range.
- Temperature Limits
- -4 to 140°F (-20 to 60°C).
- Size
- 2.5" (63 mm).
- Process Connections
- 1/4" male NPT.
- Weight
- 4.9 oz (141 g) bottom; 5.8 oz (164 g) back. Add 3.7 oz (104 g) for glycerinfill.
