Documents: SGZ-D10342N

Series SGZ Catalog Page SGZ More Info

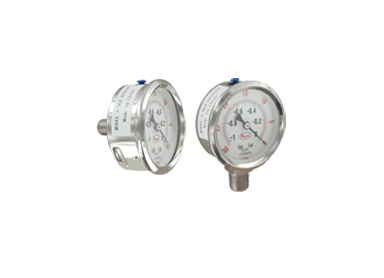

SGZ-D10342N | 2.5" SS Gage | 1/4" npt back connection | range 30 psi | Dwyer

2.5" SS Gage, 1/4" npt back connection, range 30 psi

Brand: DwyerSKU: SGZ-D10342N

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SGZ-D10342N

Jump to: Overview & Specifications Reviews

Overview Details for SGZ-D10342N

See catalog product page for full listing

2.5" SS Gage | 1/4" npt back connection | range 30 psi

SERIES SGZ 2.5" INDUSTRIAL PRESSURE GAGE

1.5% FS Accuracy, 316 SS Wetted Parts, Dual PSI/Bar x100 kPa Scales

The Series SGZ Industrial Pressure Gages have dual psi and bar (x100 kPa) scales with ±1.5% full-scaleaccuracy. The Series SGZ gages are designed with 304 SS housings and 316 SS wettedparts for excellent chemical compatibility. These gages cover a wide variety of ranges ineither bottom or back connection configurations. Series SGZ gages employ an easy-openbreather plug on top, which allows liquid filled units to breathe, relieving any built upinternal pressures. Plug easily pops open and does not need to be entirely removed or cutlike a typical gages' rubber plug grommet.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Vacuums in pneumatic conveying lines
Positive pressure in compressed air headers
Corrosive ambient environments

Stainless steel housing and wetted parts to resist ambient corrosion for longerservice life in harsh environments
Higher accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
Optional sliding pointer clearly mark to make visible critical ranges and high and lowpoints
Liquid fillable gage with easy open breather plug provides smoother dampedmovement of pointer
Back or bottom mounting and compact size provides for mounting with dimensionallimitations

Specifications

Series: SGZ 2.5" INDUSTRIAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: SGZ 2.5" INDUSTRIAL PRESSURE GAGE
Service: Compatible gases and liquids.
Wetted Materials: 316 L SS Tube; 316 SS connector.
Housing: 304 SS.
Lens: Polycarbonate.
Accuracy: ±1.5% FS.
Pressure Limit: FS range.
Temperature Limits: -4 to 140°F (-20 to 60°C).
Size: 2.5" (63 mm).
Process Connections: 1/4" male NPT.
Weight: 4.9 oz (141 g) bottom; 5.8 oz (164 g) back. Add 3.7 oz (104 g) for glycerinfill.
