SGY-D11222N-GF | 2.5" SS gage | 1/4" npt bottom connection | range 1000 psi | glycerin filled | Dwyer

2.5" SS gage, 1/4" npt bottom connection, range 1000 psi, glycerin filled

Brand: DwyerSKU: SGY-D11222N-GF

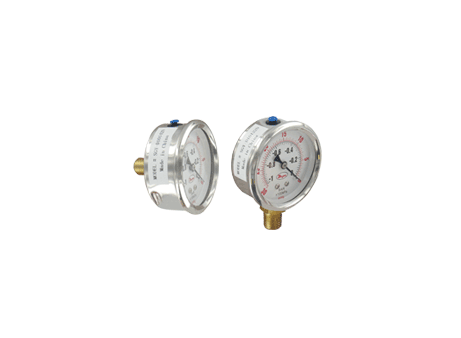

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SGY-D11222N-GF

Jump to: Overview & Specifications Reviews

Overview Details for SGY-D11222N-GF

See catalog product page for full listing

2.5" SS gage | 1/4" npt bottom connection | range 1000 psi | glycerin filled

SERIES SGY 2.5" INDUSTRIAL PRESSURE GAGE

1.5% FS Accuracy, Brass Wetted Parts, Dual PSI/Bar x100 kPa Scales

The Series SGY Gages have dual psi and bar (x100 kPa) scales with ±1.5% full-scaleaccuracy. The Series SGY gages are designed with 304 SS housings and brass wetted partsfor excellent chemical compatibility. These gages cover a wide variety of ranges from fullvacuum to 1,000 psi and are available in both bottom or back connections. Series SGY gagesemploy an easy-open breather plug on top, which allows liquid filled units to breathe,relieving any built up internal pressures. Plug easily pops open and does not need to beentirely removed or cut like a typical gages' rubber plug grommet.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Vacuums in pneumatic conveying lines
Positive pressure in compressed air headers
Corrosive ambient environments

Stainless steel housing and wetted parts to resist ambient corrosion for longerservice life in harsh environments
Higher accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
Optional sliding pointer clearly mark to make visible critical ranges and high and lowpoints
Liquid fillable gage with easy open breather plug provides smoother dampedmovement of pointer
Back or bottom mounting and compact size provides for mounting with dimensionallimitations

Specifications

Series: SGY 2.5" INDUSTRIAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: SGY 2.5" INDUSTRIAL PRESSURE GAGE
Service: Compatible gases and liquids.
Wetted Materials: Brass connection; bronze tube.
Housing: 304 SS.
Lens: Polycarbonate.
Accuracy: ±1.5% FS.
Pressure Limit: FS range.
Temperature Limits: -4 to 140°F (-20 to 60°C).
Size: 2.5" (63 mm).
Process Connections: 1/4" male NPT.
Weight: 4.9 oz (139 g) bottom; 5.8 oz (164 g) back. Add 2.8 oz (78 g) for fill.
