SGY-D10122N-GF | 2.5" SS gage | 1/4" npt bottom connection | range 30" Hg | glycerin filled | Dwyer
2.5" SS gage, 1/4" npt bottom connection, range 30" Hg, glycerin filled
Documents and manuals
Dwyer SGY-D10122N-GF Documents
Overview
Details for SGY-D10122N-GF
2.5" SS gage | 1/4" npt bottom connection | range 30" Hg | glycerin filled

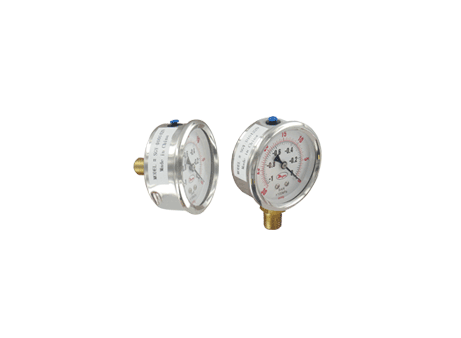

SERIES SGY 2.5" INDUSTRIAL PRESSURE GAGE
The Series SGY Gages have dual psi and bar (x100 kPa) scales with ±1.5% full-scaleaccuracy. The Series SGY gages are designed with 304 SS housings and brass wetted partsfor excellent chemical compatibility. These gages cover a wide variety of ranges from fullvacuum to 1,000 psi and are available in both bottom or back connections. Series SGY gagesemploy an easy-open breather plug on top, which allows liquid filled units to breathe,relieving any built up internal pressures. Plug easily pops open and does not need to beentirely removed or cut like a typical gages' rubber plug grommet.
Calibration Option available under Accessories.
Product Applications
- Vacuums in pneumatic conveying lines
- Positive pressure in compressed air headers
- Corrosive ambient environments
- Stainless steel housing and wetted parts to resist ambient corrosion for longerservice life in harsh environments
- Higher accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
- Optional sliding pointer clearly mark to make visible critical ranges and high and lowpoints
- Liquid fillable gage with easy open breather plug provides smoother dampedmovement of pointer
- Back or bottom mounting and compact size provides for mounting with dimensionallimitations
Specifications
- Series
- SGY 2.5" INDUSTRIAL PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- SGY 2.5" INDUSTRIAL PRESSURE GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass connection; bronze tube.
- Housing
- 304 SS.
- Lens
- Polycarbonate.
- Accuracy
- ±1.5% FS.
- Pressure Limit
- FS range.
- Temperature Limits
- -4 to 140°F (-20 to 60°C).
- Size
- 2.5" (63 mm).
- Process Connections
- 1/4" male NPT.
- Weight
- 4.9 oz (139 g) bottom; 5.8 oz (164 g) back. Add 2.8 oz (78 g) for fill.
