SGO-F0424N | Stainless steel Schaeffer gage | 0-60 psi (0-400 kPa). | Dwyer

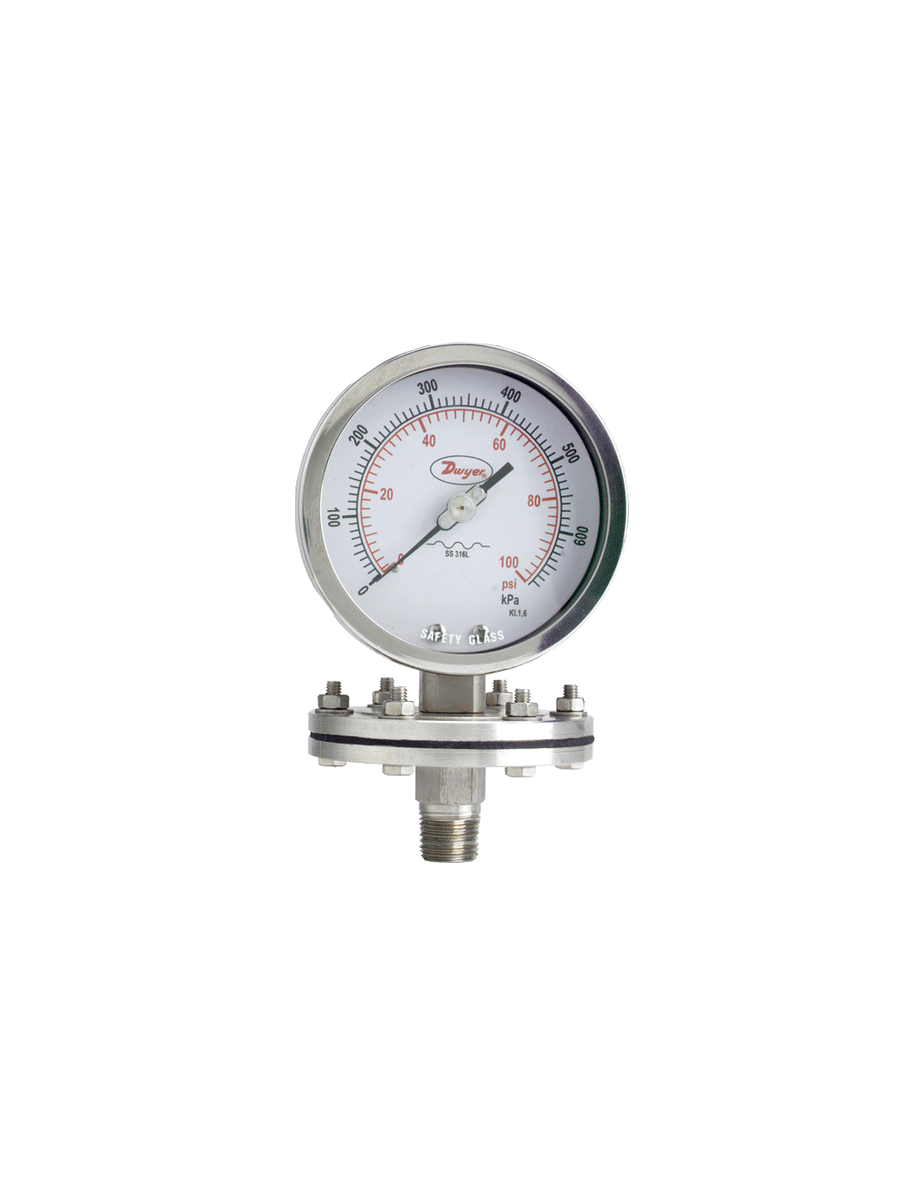

Stainless steel Schaeffer gage, 0-60 psi (0-400 kPa).
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SGO-F0424N
Documents and manuals
Dwyer SGO-F0424N Documents
Overview
Details for SGO-F0424N
See catalog product page for full listing
Stainless steel Schaeffer gage | 0-60 psi (0-400 kPa).
SERIES SGO STAINLESS STEEL SCHAEFFER GAGE
1.6% Full Scale Accuracy, 316L SS & PTFE Wetted Parts
The Series SGO Gages have dual English/metric scales with ±1.6% full scale accuracy. The Series SGO gages are designed with 304 SS housing, a 316L SS chamber and PTFE coated diaphragm for excellent chemical compatibility. Units can withstand ambient temperatures up to 149°F (65°C) and process temperatures up to 248°F (120°C). Ranges are available from full vacuum, compound to 300 psi.
Calibration Option available under Accessories.
We are in the process of phasing this series out.
Product Applications
- Chemical
- Refinery
- Fertilizer
- Petrochemical
- Power
- Pharmaceutical
- Pulp and Paper
- Cement
- Stainless steel housing and wetted parts resist ambient corrosion for longer servicelife in harsh environments
- Wetted parts permit use in chemical applications
- High accuracy gage for applications requiring more precise measurement
- Models that support vacuum to higher pressure ranges provide a selection to meetspecific applications
- Specified with high ambient and process temperature ratings mean more robustuses and longer service-life
Specifications
- Series
- SGO STAINLESS STEEL SCHAEFFER GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- SGO STAINLESS STEEL SCHAEFFER GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- 316L SS chamber with PTFE protected steel diaphragm.
- Housing
- 304 SS.
- Accuracy
- ±1.6% FS.
- Pressure Limits
- 130% FS.
- Temperature Limits
- Ambient: -13 to 149°F (-25 to 65°C); Process: 248°F (120°C).
- Size
- 4" (100 mm)
- Process Connection
- 1/2" male NPT.
- Enclosure Rating
- NEMA 3 (IP55).
- Weight
- 3.0 lb (1.34 kg).
