Documents: SG5-G0322N

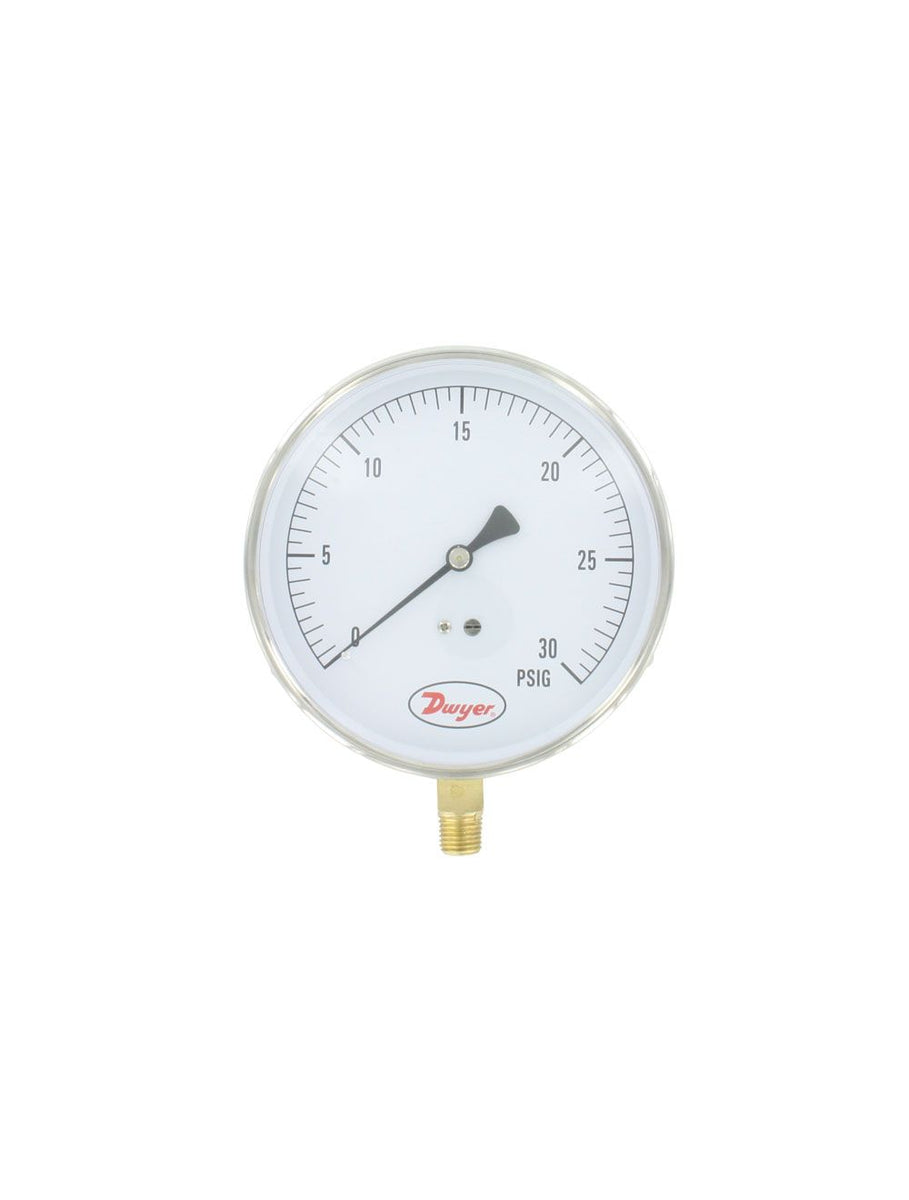

SG5-G0322N | 4.5" Contractor gage | 0 to 30 psi | 1/4" NPT bottom connection | Dwyer
4.5" Contractor gage, 0 to 30 psi, 1/4" NPT bottom connection
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SG5-G0322N
Overview Details for SG5-G0322N
See catalog product page for full listing
4.5" Contractor gage | 0 to 30 psi | 1/4" NPT bottom connection
SERIES SG5 CONTRACTOR GAGE
Large, Easy-to-Read Dial, Internal Surge Suppressor
The Series SG5 Contractor Gages are ideally manufactured forcontractors because of their large dial and compact design. Since the gages arelightweight and slim, they are easy to transport. The large 4.5" scale makesthem simple to read. The Series SG5 gages possess psi scales with 1% full-scaleaccuracy. The gages are made with a stainless steel housing and brass wettedparts. Units can withstand temperatures of -4 to 140°F (-20 to 60°C). Thesequalities make the SG5 series perfect for contractors and industrial applications.A wide offering of ranges are available from full vacuum to 300 psi.
Calibration Option available under Accessories.
Product Applications
- Contractor applications
- Industrial applications
- Stainless steel housing resists ambient corrosion for longer service life in harshenvironments
- High accuracy gage for applications requiring more precise measurement
- Lightweight and slim, yet large easy to read gage make them easy to carry and read
- Specified with high ambient temperature rating means more robust uses and longerservice-life
Specifications
- Series
- SG5 CONTRACTOR GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- SG5 CONTRACTOR GAGE
- Service
- Compatible gases and liquids.
- Wetted Materials
- Brass connection; bronze tube.
- Housing
- 304 SS.
- Lens
- Plastic.
- Accuracy
- ±1% FS.
- Pressure Limits
- Full scale range.
- Temperature Limits
- -4 to 140°F (-20 to 60°C).
- Size
- 4.5" (115 mm).
- Process Connections
- 1/4" male NPT.
- Weight
- 10.4 oz (295 g).
