Documents: SG3-B10421N

Series SG3 Catalog Page SG3 More Info

SG3-B10421N | 1.5" SS gage | 1/8" npt bottom connection | range 60 psi | Dwyer

1.5" SS gage, 1/8" npt bottom connection, range 60 psi

Brand: DwyerSKU: SG3-B10421N

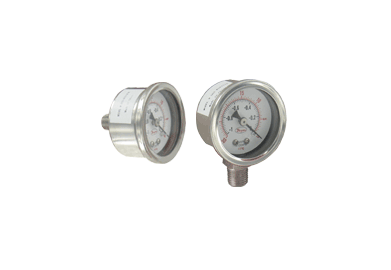

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SG3-B10421N

Jump to: Overview & Specifications Reviews

Overview Details for SG3-B10421N

See catalog product page for full listing

1.5" SS gage | 1/8" npt bottom connection | range 60 psi

SERIES SG3 1.5" INDUSTRIAL PRESSURE GAGE

2.5% FS Accuracy, 316 SS Wetted Parts, Dual PSI/Bar x100 kPa Scales

The Series SG3 Industrial Pressure Gages have dual psi and bar (x100 kPa) scales with ±2.5% full-scaleaccuracy. The Series SG3 gages are designed with 304 SS housings and 316 SS wettedparts for excellent chemical compatibility. These gages cover a wide variety of ranges fromfull vacuum to 300 psi. Units can withstand ambient temperatures up to 140°F (60°C).Bottom or back 1/8" NPT connection options available.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Vacuums in pneumatic conveying lines
Positive pressure in compressed air headers
Corrosive ambient environments

Stainless steel housing to resist ambient corrosion for longer service life in harshenvironments
Good accuracy gage for value-sensitive applications requiring more precisemeasurement and where vibration is a concern
Back or bottom mounting and compact size provides for mounting with dimensionallimitations
