Documents: SFI-700-1-1/2

Instruction Manual Series SFI-700 Catalog Page More Info

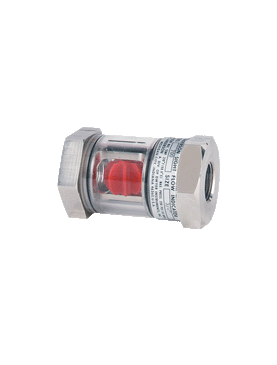

SFI-700-1-1/2 | Sight flow indicator | 1-1/2" body | 4.875" L x 2.750" H (124 x 70 mm) | 5.1 lb (2.3 kg). | Dwyer

Sight flow indicator, 1-1/2" body, 4.875" L x 2.750" H (124 x 70 mm), 5.1 lb (2.3 kg).

Brand: DwyerSKU: SFI-700-1-1/2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-700-1-1/2

Jump to: Overview & Specifications Reviews

Overview Details for SFI-700-1-1/2

See catalog product page for full listing

Sight flow indicator | 1-1/2" body | 4.875" L x 2.750" H (124 x 70 mm) | 5.1 lb (2.3 kg).

Series SFI-700 MIDWEST Sight Flow Indicator

Inexpensive Protection for Expensive Equipment and Systems

Series 700 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 700 Series offer threaded process connections, tube style viewing, and bodies of brass or 316 SS. Featured in the 700 is a bright red Acetal rotating impeller that is easy to view from any angle with the glass tube construction. Maintenance is simple with internal wipers, just rotate the glass tube and restore visibility without disrupting the flow.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-700 MIDWEST Sight Flow Indicator
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-700 MIDWEST Sight Flow Indicator
Service: Compatible gases and liquids.
Wetted Materials: Tube: tempered borosilicate; Body: brass or 316 SS; Gasket: fluoroelastomer; Indicator: acetal.
Temperature Limit: 212°F (100°C).
Pressure Limit: 230 psig (15.86 bar).
Connections: Threaded.
