SFI-400SS-4 | Sight flow indicator | 4" body | 6.250" (159 mm) length | 9.000" (229 mm) flange dia. | 5.000" (127 mm) viewing dia. | 25 lb (11.0 kg). | Dwyer
Sight flow indicator, 4" body, 6.250" (159 mm) length, 9.000" (229 mm) flange dia., 5.000" (127 mm) viewing dia., 25 lb (11.0 kg).

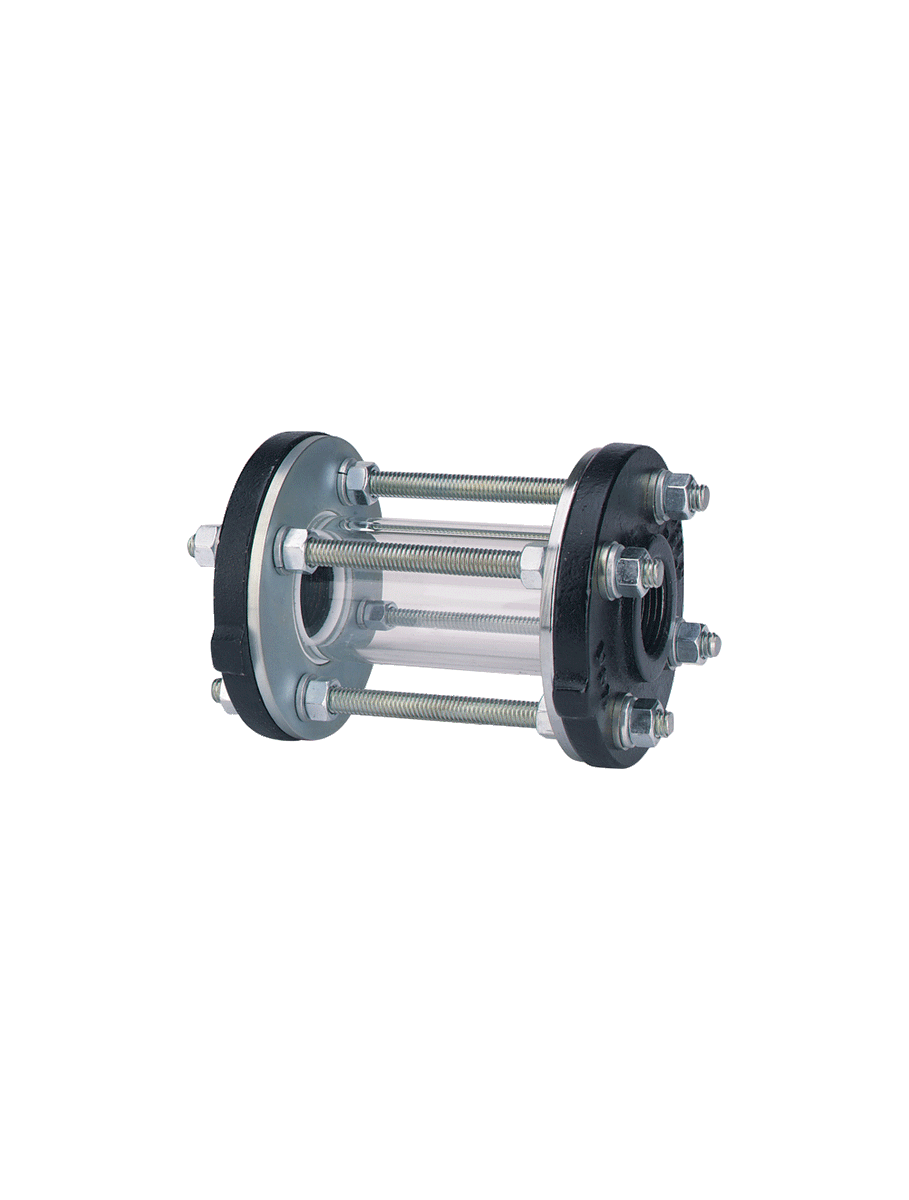

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SFI-400SS-4
Documents and manuals
Dwyer SFI-400SS-4 Documents
Overview
Details for SFI-400SS-4
See catalog product page for full listing
Sight flow indicator | 4" body | 6.250" (159 mm) length | 9.000" (229 mm) flange dia. | 5.000" (127 mm) viewing dia. | 25 lb (11.0 kg).
Series SFI-400 MIDWEST Sight Flow Indicator
Inexpensive Protection for Expensive Equipment and Systems
Series 400 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 400 Series offer threaded or ANSI flanged process connections, tube style viewing, and bodies of cast iron or 316 SS. Featured in the 400 is glass tube construction offering easy flow viewing from any angle.
Specifications
- Series
- SFI-400 MIDWEST Sight Flow Indicator
- Category/Type
- Flow
- Type
- Sight Flow Indicators
- Series
- SFI-400 MIDWEST Sight Flow Indicator
- Service
- Compatible gases and liquids.
- Wetted Materials
- Tube: Borosilicate; Body: cast iron or 316 SS; Gasket: PTFE.
- Temperature Limit
- 200°F (93°C).
- Pressure Limit
- 50 psig (3.45 bar).
- Connections
- Threaded or flanged.
