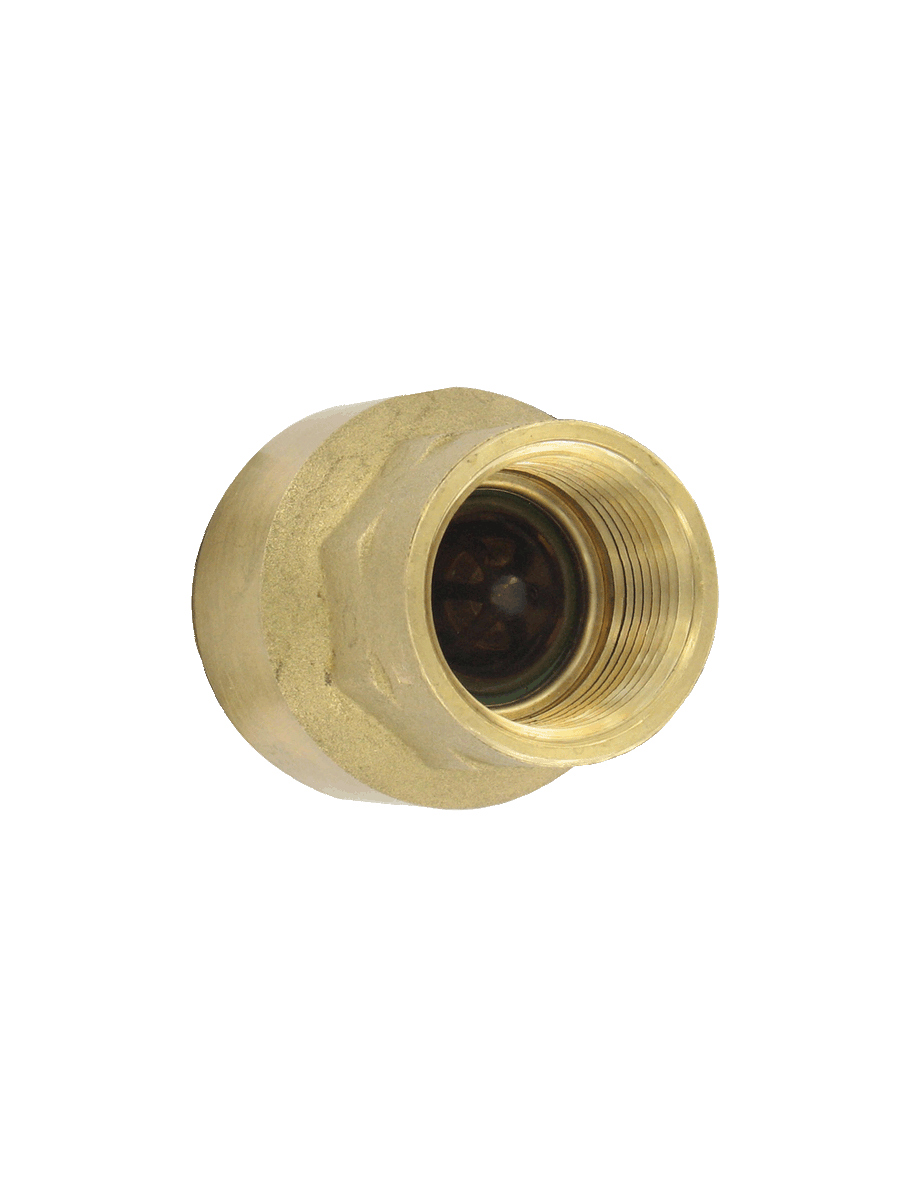

BICV-0N00 | Brass inline check valve | 1/4" connection | 4.55 Cv value | weight 3.5 oz (100 g). | Dwyer
Brass inline check valve, 1/4" connection, 4.55 Cv value, weight 3.5 oz (100 g).
Documents and manuals
Dwyer BICV-0N00 Documents
Overview
Details for BICV-0N00
Brass inline check valve | 1/4" connection | 4.55 Cv value | weight 3.5 oz (100 g).
Series BICV Brass Inline Check Valve
The Series BICV Brass Inline Check Valves are ideal for use with a broad array of service mediums including compatible oils, gases, fuels and hydrocarbons. They incorporate a soft seat for a bubble-tight shutoff and are spring-loaded for rapid reseating at high and low temperatures. The Series BICV was designed with a smooth flow profile to minimize head loss and accumulation of debris. The low 0.5 psi (0.04 bar) cracking pressure and patented guided-disc technology ensure reliability at low and high service pressure.
California Residents: Click Here for Proposition 65 WARNING.on is resistant to harmful components often found in sample streams. Replaceable filter elements remove particles and droplets as small as .01 micron with 95% efficiency.
Product Applications
- To protect equipment against possible damage or contamination resulting from a reversal of flow direction
- Soft seat for bubble-tight shut off
- Spring loaded for rapid reseating at high and low temperatures
- Patented guided-disc technology
Specifications
- Series
- BICV Brass Inline Check Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Check
- Series
- BICV Brass Inline Check Valve
- Service
- Liquids and gases compatible with wetted material.
- Body
- 1-piece.
- Line Size
- See Catalog page.
- Process Connection
- Female NPT.
- Pressure Limits
- 1/4" to 2": 400 psi (27.6 bar) WOG; 2-1/2" to 4": 175 psi (12.1 bar) WOG; all sizes: 125 psi (8.6 bar) SWP.
- Wetted Materials
- Valve Body: Brass (CW617N); Obstructer: Polyethermide; Seat: 1/4" - NBR rubber; 3/8" to 4" - fluoroelastomer; Spring: 302 SS.
- Temperature Limits
- 10 to 352°F (-12 to 178°C).
